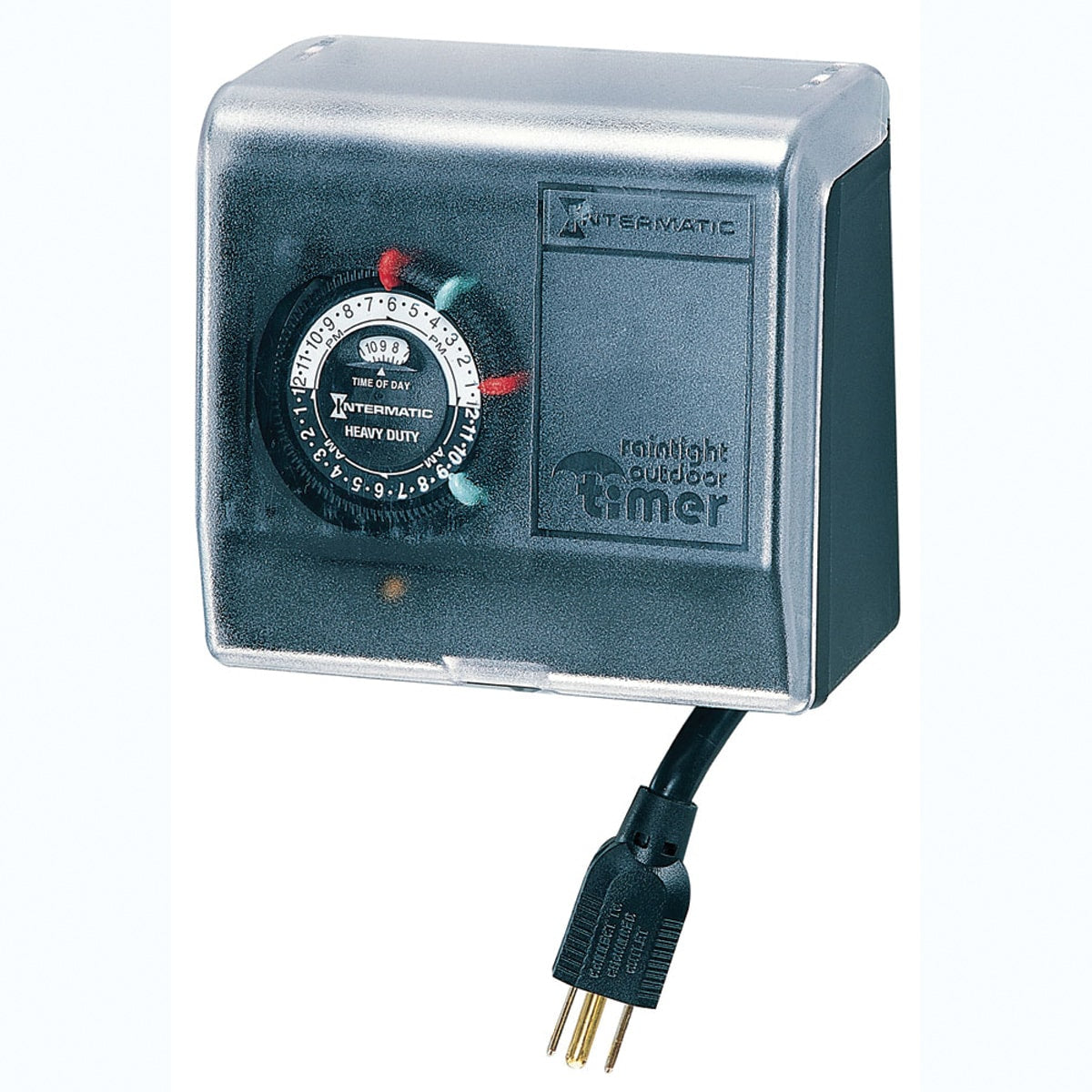

Intermatic | P1101 | Outdoor Mechanical Plug-In Timer with Built-In Enclosure

The Intermatic P1101 Outdoor Mechanical Plug-In Timer with Built-In Enclosure is a heavy-duty, weather-resistant timer designed for outdoor lighting, landscape pumps, holiday décor and other powered devices. With a flip-open outdoor-rated enclosure and simple 24-hour dial functionality, it plugs directly into a standard wall outlet and automates On/Off scheduling while protecting the device from the elements.

Key Features

• Outdoor-rated enclosure with flip-open protective cover for weather resistance.

• Standard grounded plug (NEMA 5-15) and receptacle; simply “plug-in” for quick installation.

• 24-hour mechanical dial with 2 On and 2 Off settings per day; additional trippers optional for more events.

• Minimum On/Off period: 30 minutes.

• Rated for 120 VAC input; 15 A resistive/tungsten load; up to 1 HP motor load.

• Compact size (approx. 5.375″ H × 5.125″ W × 2.5″ D) for versatile outdoor placement.

• Ideal for a variety of outdoor applications—pool pumps, landscape lighting, holiday displays, outdoor water features.

Product Overview
The Intermatic P1101 timer provides a professional-grade solution for automating outdoor electrical loads with minimal setup. Its direct plug-in design eliminates complex wiring or panel installation, making it suitable for both residential and light commercial situations. The built-in weather-resistant housing ensures operation in outdoor environments, while the mechanical dial and trippers give users straightforward control of their load schedule. Because it supports typical loads (up to 15 amps resistive or 1 HP motor) and uses standard plugs, it’s especially well-suited for controlling pumps, lighting circuits or seasonal décor. Installers and e-commerce retailers should emphasize its reliable, user-friendly nature and suitability for outdoor automation tasks.
