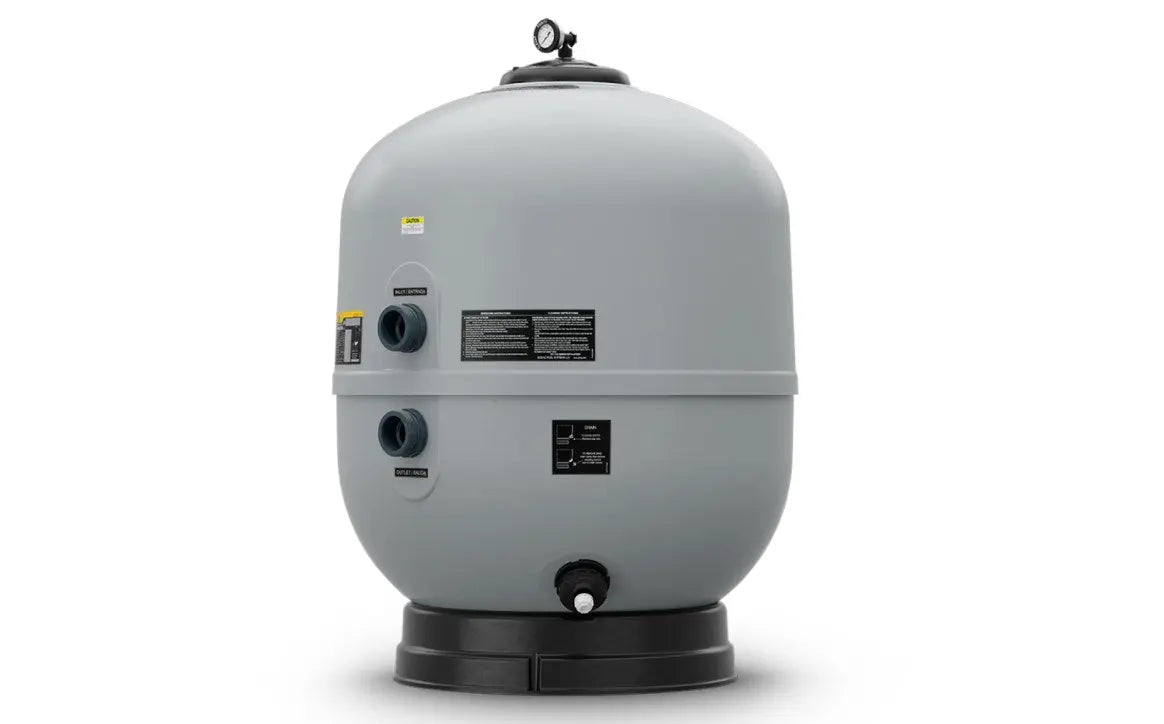

Jandy | SFSM100 | 30" SFSM Side Mount Vertical Sand Filter with Unions

Jandy SFSM100 is a commercial side-mount vertical sand filter designed for high-use pool applications that require dependable filtration and clear water quality. This 30" sand filter features laminated FRP construction with UV protection, a side-mount plumbing layout, and Jandy standard 2.5" x 2" union connection compatibility.

────────────────────────────────────────

Key Features

• Commercial SFSM Series vertical sand filter designed for high-demand pool filtration applications.

• 30" side-mount filter body supports efficient water filtration through sand or approved alternative filter media.

• Laminated FRP filter body construction with UV protection provides durability for demanding equipment environments.

• SFSM100 model provides 5.00 sq. ft. of filtration area with a maximum flow rate of 100 GPM.

• Maximum working pressure is rated at 50 PSI, with normal startup pressure listed at 5–15 PSI.

• Six-hour capacity is listed at 36,000 gallons, making it suitable for properly sized commercial pool systems.

• Uses Jandy standard 2.5" x 2" unions, with industry-standard plumbing geometry for installation flexibility.

• Easy-open adjustable-compression radial seal lid design helps simplify access during service and maintenance.

• Includes an oil-filled pressure gauge for monitoring filter operating pressure and cleaning requirements.

• Requires approximately 679 lb of #20 silica sand when using sand-only media.

────────────────────────────────────────

Product Overview

The Jandy SFSM100 30" Side Mount Vertical Sand Filter is built for commercial pool systems where high-rate filtration, serviceability, and long-term durability are important. The SFSM100 offers a 5.00 sq. ft. filtration area, 100 GPM maximum flow rate, 75 GPM minimum backwash flow rate, and 36,000 gallon six-hour capacity. Its laminated FRP tank construction, UV-protected components, side-mount configuration, and Jandy union compatibility make it a strong option for high-use aquatic facilities and commercial pool equipment rooms.

The filter is designed to operate with #20 silica sand or other NSF-approved filtration media when installed according to Jandy requirements. The SFSM100 has a 41" height, 32.5" tank diameter, and 75 lb empty weight.
