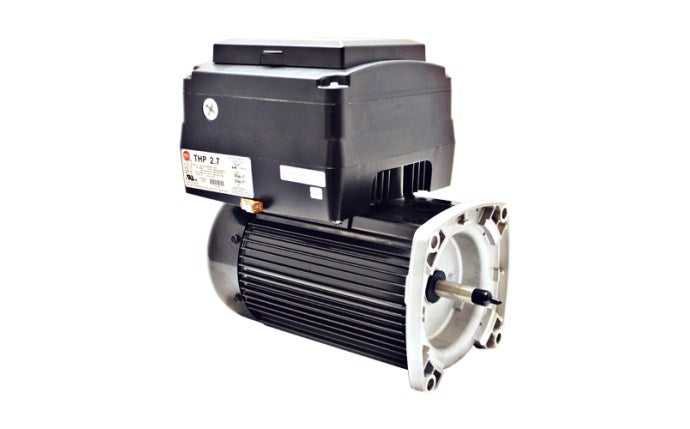

U.S. MOTORS | NPTQ270 | Neptune 2.7 THP Variable Speed Motor

The Neptune is a 2.7 THP variable speed pool pump motor designed to upgrade compatible existing pumps without replacing the complete pump assembly. Its integrated motor, control, and user interface provide programmable operation across a 600–3450 RPM speed range.

This model features a 48Y square flange, 230V single-phase input, 50/60 Hz operation, and a TEFC finned aluminum enclosure for added protection in pool equipment environments.

━━━━━━━━━━━━━━━━━━

Key Features

• 2.7 THP variable speed pool pump motor

• Adjustable 600–3450 RPM speed range

• 230V, 50/60 Hz single-phase input

• 48Y square flange configuration

• TEFC finned aluminum motor enclosure

• Integrated control and programmable user interface

━━━━━━━━━━━━━━━━━━

Product Overview

The Neptune Variable Speed Motor provides a way to convert a compatible existing pool pump from single-speed operation to variable-speed operation while retaining the pump's existing wet end. The integrated design combines the motor, variable-speed control, and user interface into a single replacement assembly.

The NPTQ270 configuration is rated at 2.7 THP with an 11.1A service-factor current rating and 81% system efficiency. Its onboard interface supports up to seven daily schedules, adjustable priming time and speed, and fine speed adjustments for matching pump operation to system requirements.
