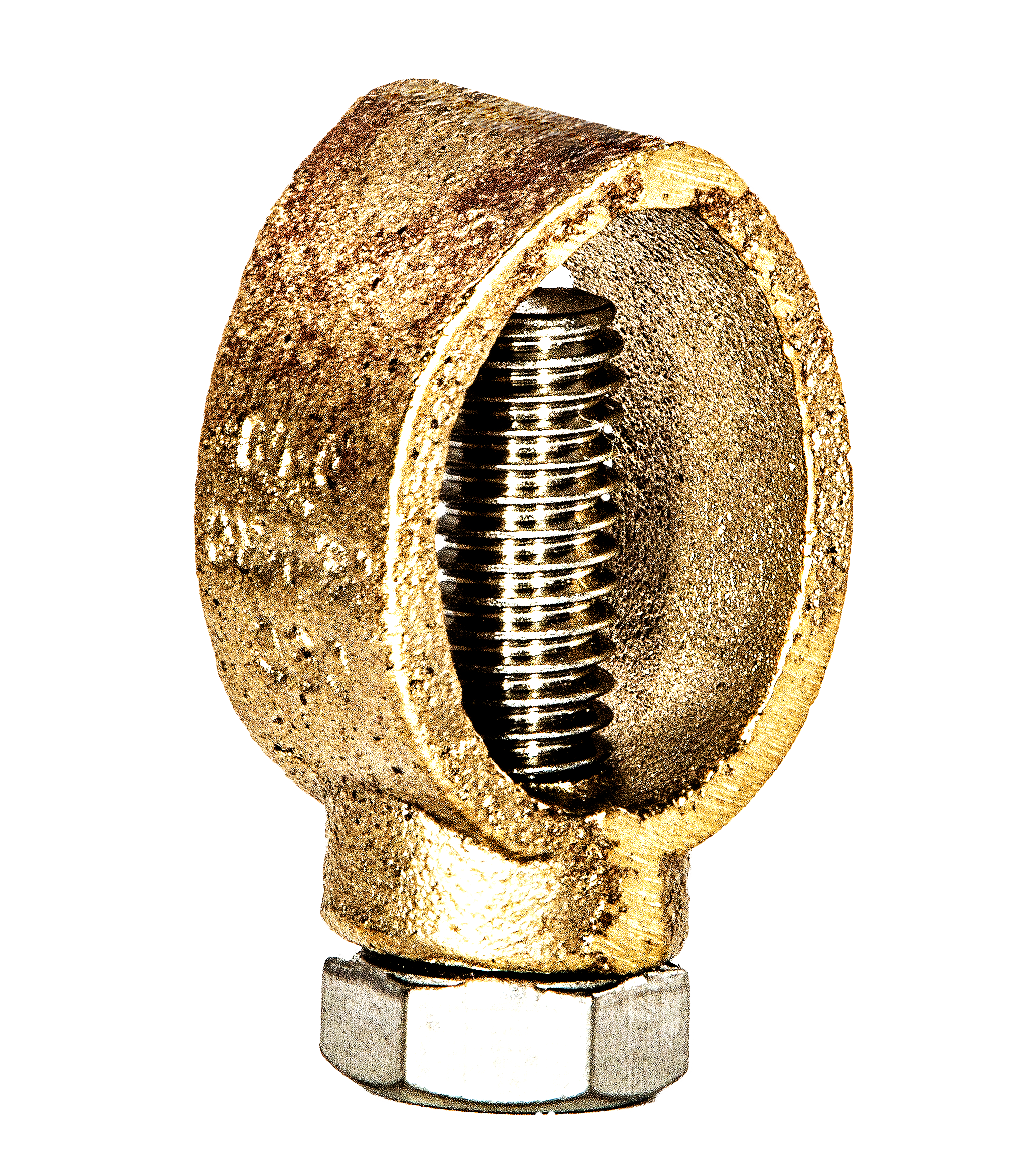

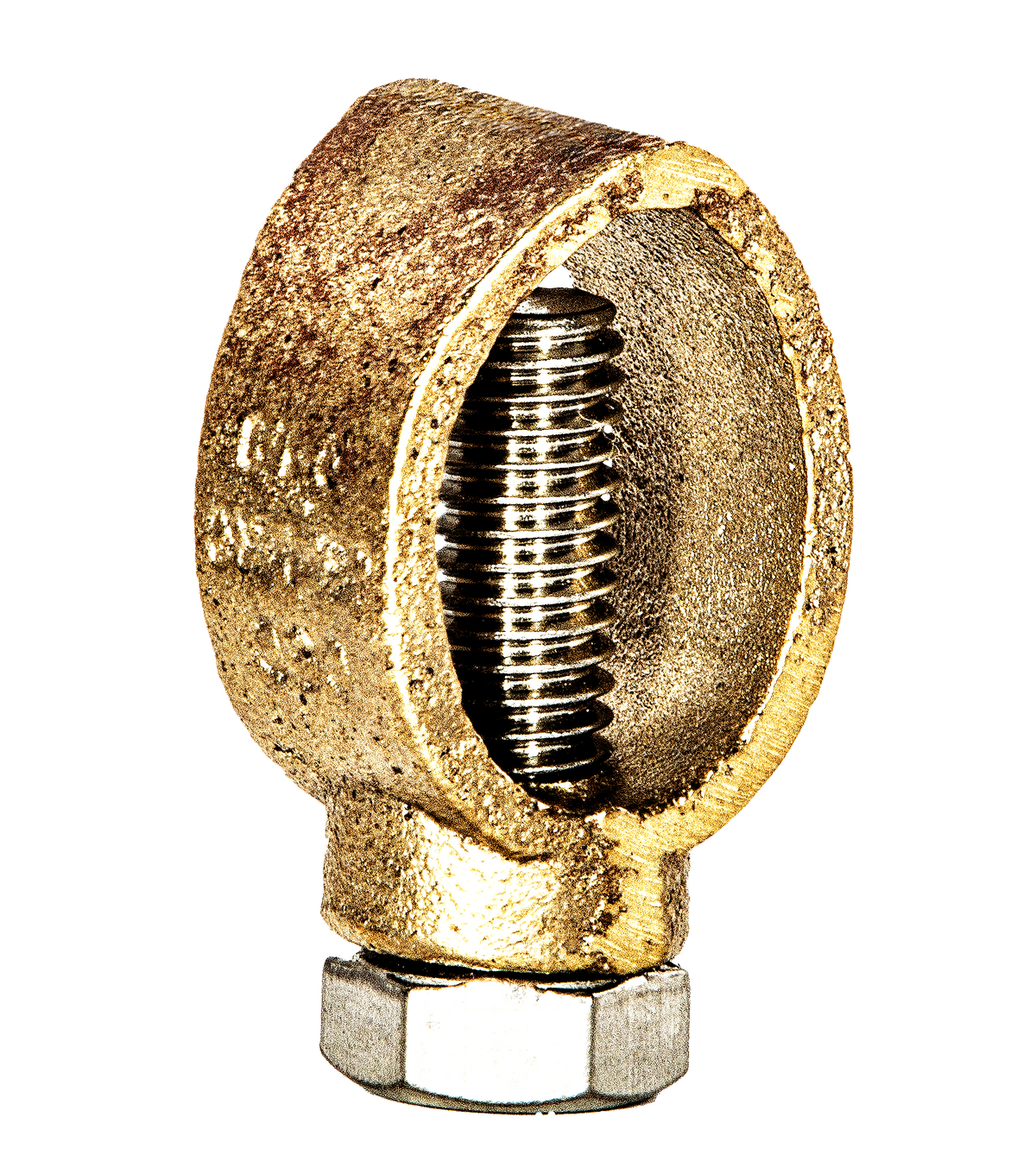

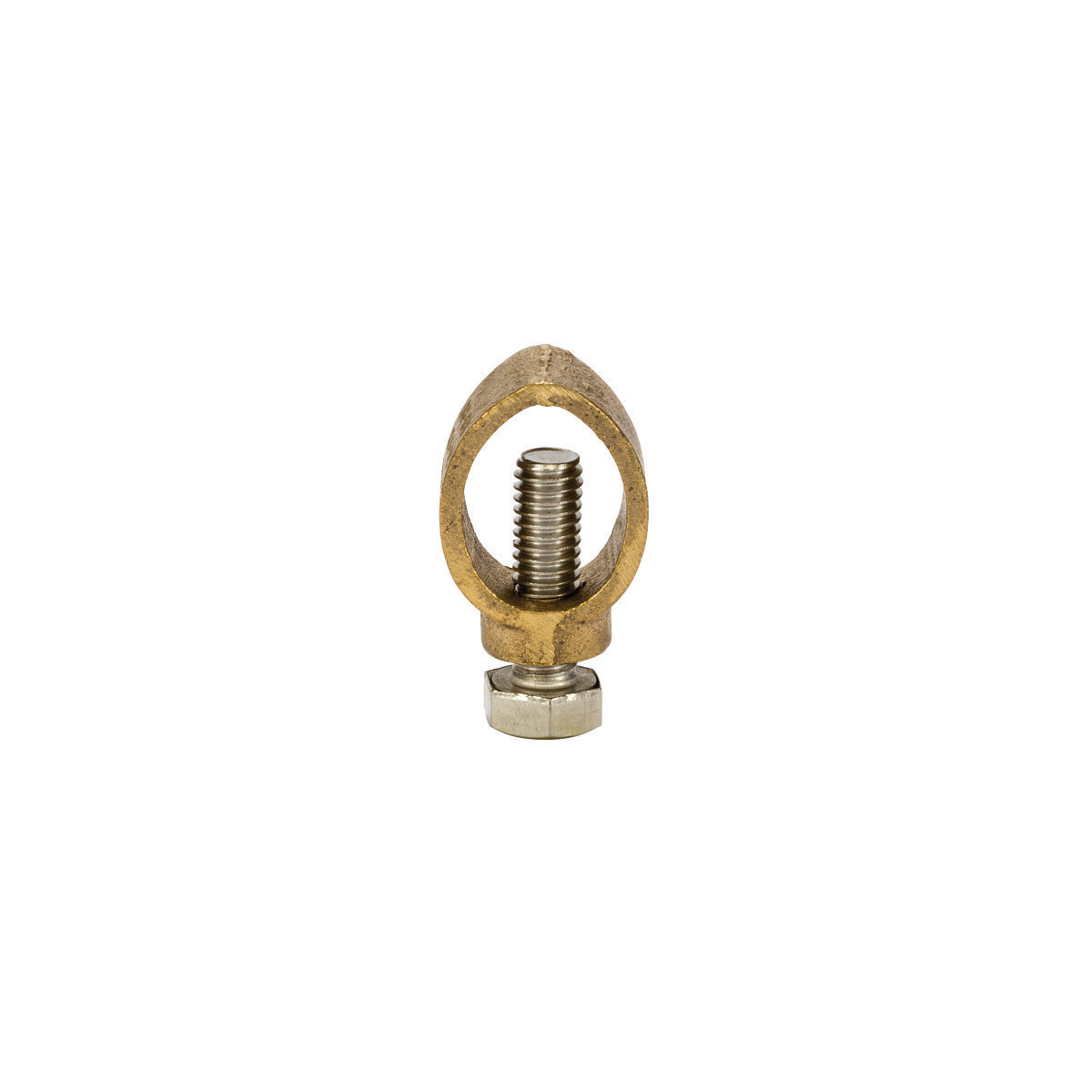

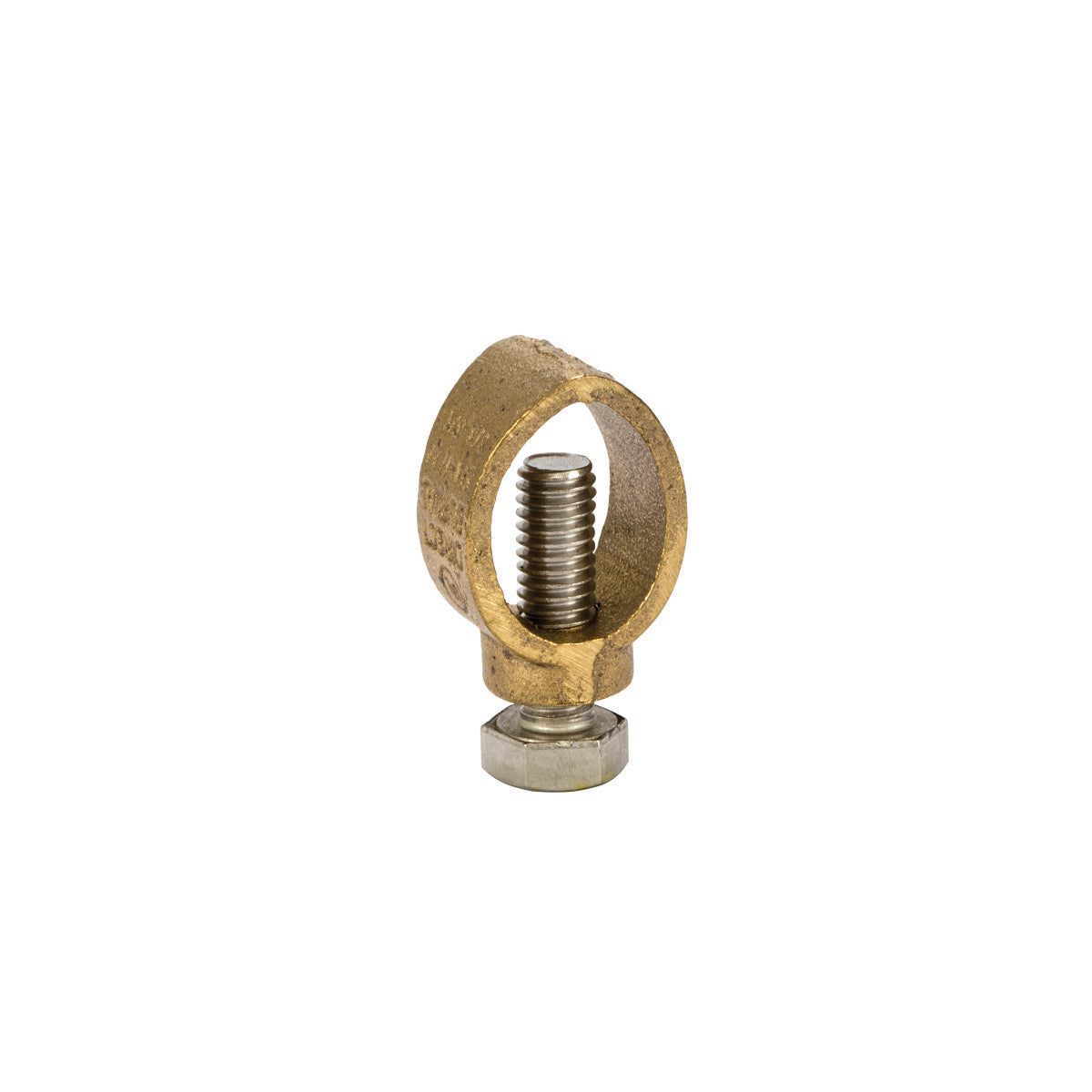

TORK | GRC-3834 | 3/8"-3/4" Range-Taking Ground Rod Clamp
Couldn't load pickup availability
This heavy-duty range-taking ground rod clamp is designed for grounding and bonding applications requiring a strong, direct-burial connection. Its adjustable design accommodates 3/8", 1/2", 5/8", and 3/4" ground rods, reducing the need to stock multiple individual clamp sizes.
The clamp accepts grounding conductors from 10 AWG solid through 1/0 AWG stranded and features a silicon bronze screw for secure clamping. It is UL listed for direct burial in earth and concrete.
āāāāāāāāāāāāāāāāāā
Key Features
ā¢ Fits 3/8", 1/2", 5/8", and 3/4" ground rods
ā¢ Ground wire range of 10 AWG solid to 1/0 AWG stranded
ā¢ Heavy-duty range-taking design
ā¢ Silicon bronze screw
ā¢ UL listed for direct burial in earth or concrete
ā¢ Suitable for grounding and bonding applications
āāāāāāāāāāāāāāāāāā
Product Overview
The GRC-3834 provides a versatile grounding connection across several common ground rod sizes. Its range-taking configuration allows a single clamp to accommodate rods from 3/8" through 3/4", making it a practical alternative to maintaining separate clamps for each rod diameter.
Heavy-duty construction allows the clamp to accommodate grounding conductors up to 1/0 AWG stranded. It is also suitable for 3/8", 1/2", and 5/8" rebar and is UL listed for installations requiring direct burial in earth or concrete.
