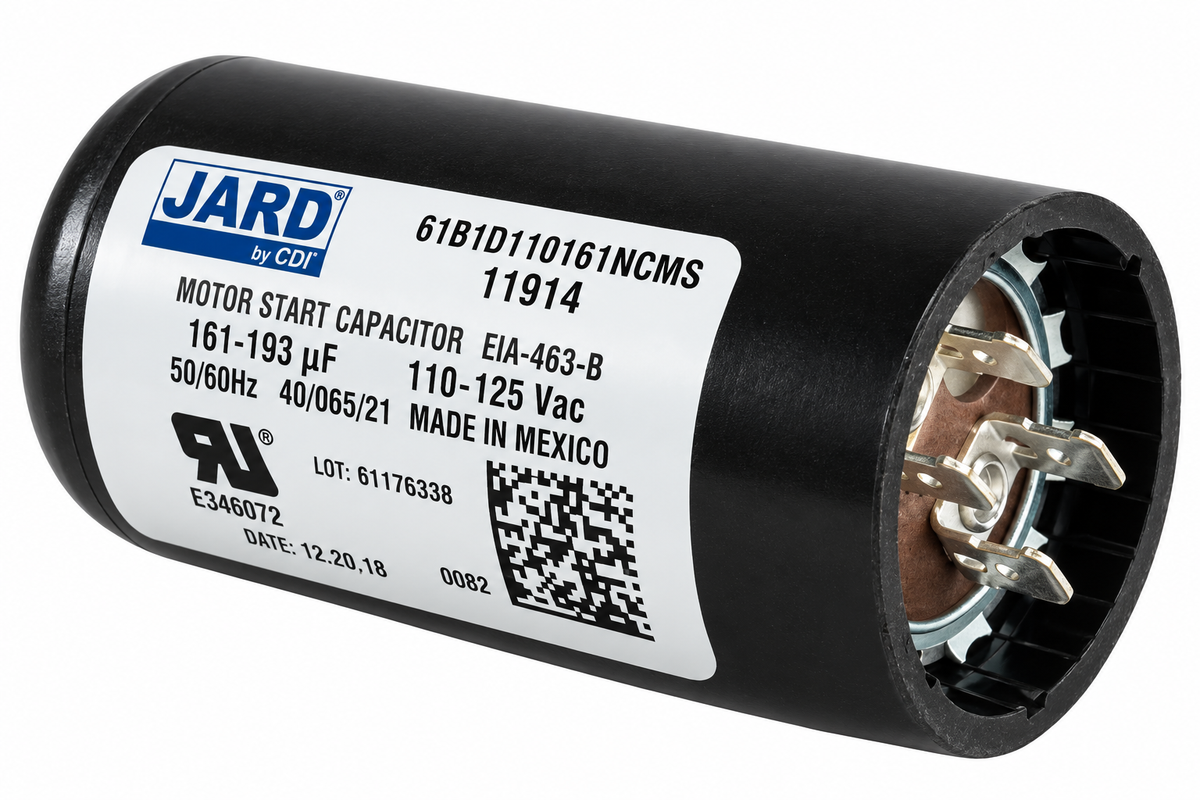

Super-Pro | 11914 | 161-193 MFD 125V Motor Start Capacitor
Couldn't load pickup availability
This motor start capacitor is designed for compatible pool and spa equipment motors requiring a 161–193 MFD, 110/125V capacitor. Start capacitors provide a temporary electrical boost during startup, helping the motor develop the torque needed to reach operating speed.
The 11914 features a round, hermetically sealed Bakelite case that helps protect the capacitor from oil, dirt, grease, and moisture.
━━━━━━━━━━━━━━━━━━
Key Features
• 161–193 MFD capacitance range
• 110/125V voltage rating
• Motor start capacitor design
• Round 1-7/16" diameter housing
• Approximately 2-3/4" high
• Hermetically sealed Bakelite case
━━━━━━━━━━━━━━━━━━
Product Overview
The Start Capacitor supplies additional capacitance during motor startup and then drops out of the circuit after the motor reaches operating speed. It is intended for compatible motors that specify a 161–193 MFD start capacitor with a 110/125V rating.
The 11914 uses a round housing measuring approximately 1-7/16" in diameter x 2-3/4" high. Electrical ratings and physical dimensions should be matched to the original capacitor or motor specifications before replacement.
