Raypak | TWPH-6560EHT01 | WeatherKing Pool and Spa Heat Pump | 118,000 BTU | Heat Only
Couldn't load pickup availability

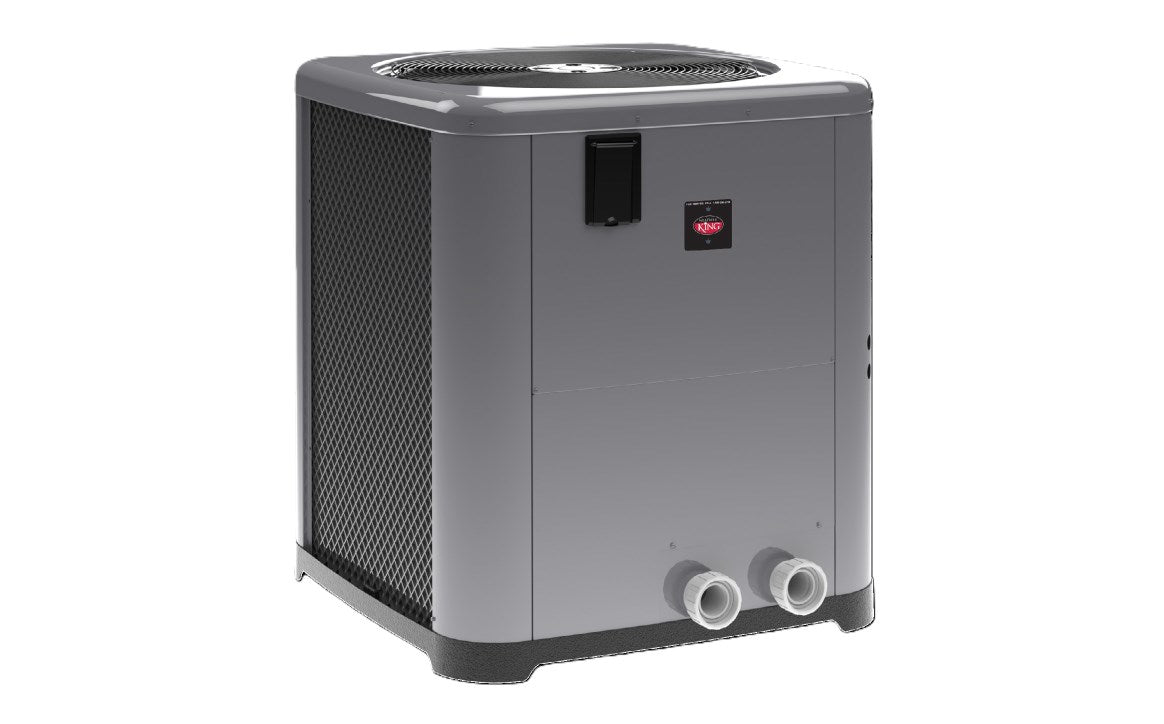

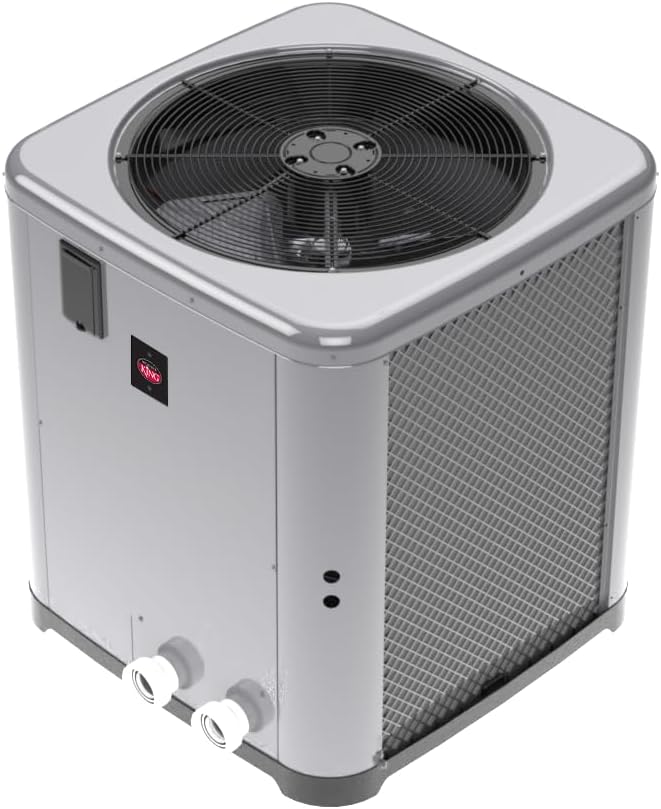

Raypak WeatherKing pool and spa heat pump designed for residential outdoor pool heating applications. Delivering up to 118,000 BTU capacity and uses a titanium heat exchanger for durability in demanding conditions. It is built for performance, quiet operation, and straightforward digital control in compatible pool and spa systems.
────────────────────────────────────────
Key Features
• Heat only pool and spa heat pump designed for residential outdoor installations.
• This model is rated for a maximum heating capacity of 118,000 BTU and a heating capacity of 34.5 kW.
• The titanium heat exchanger is designed to provide a corrosion resistant waterway for long term durability.
• Rated flow capacity is 49.5 GPM, with minimum and maximum water supply flow of 30 to 60 GPM.

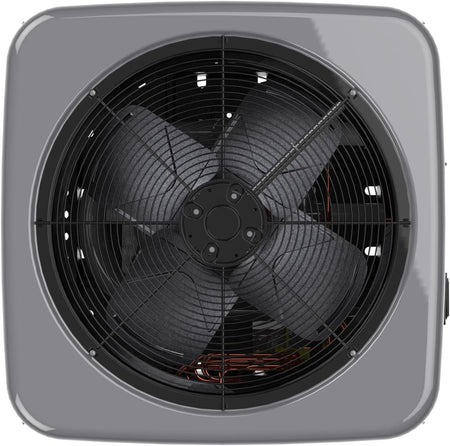

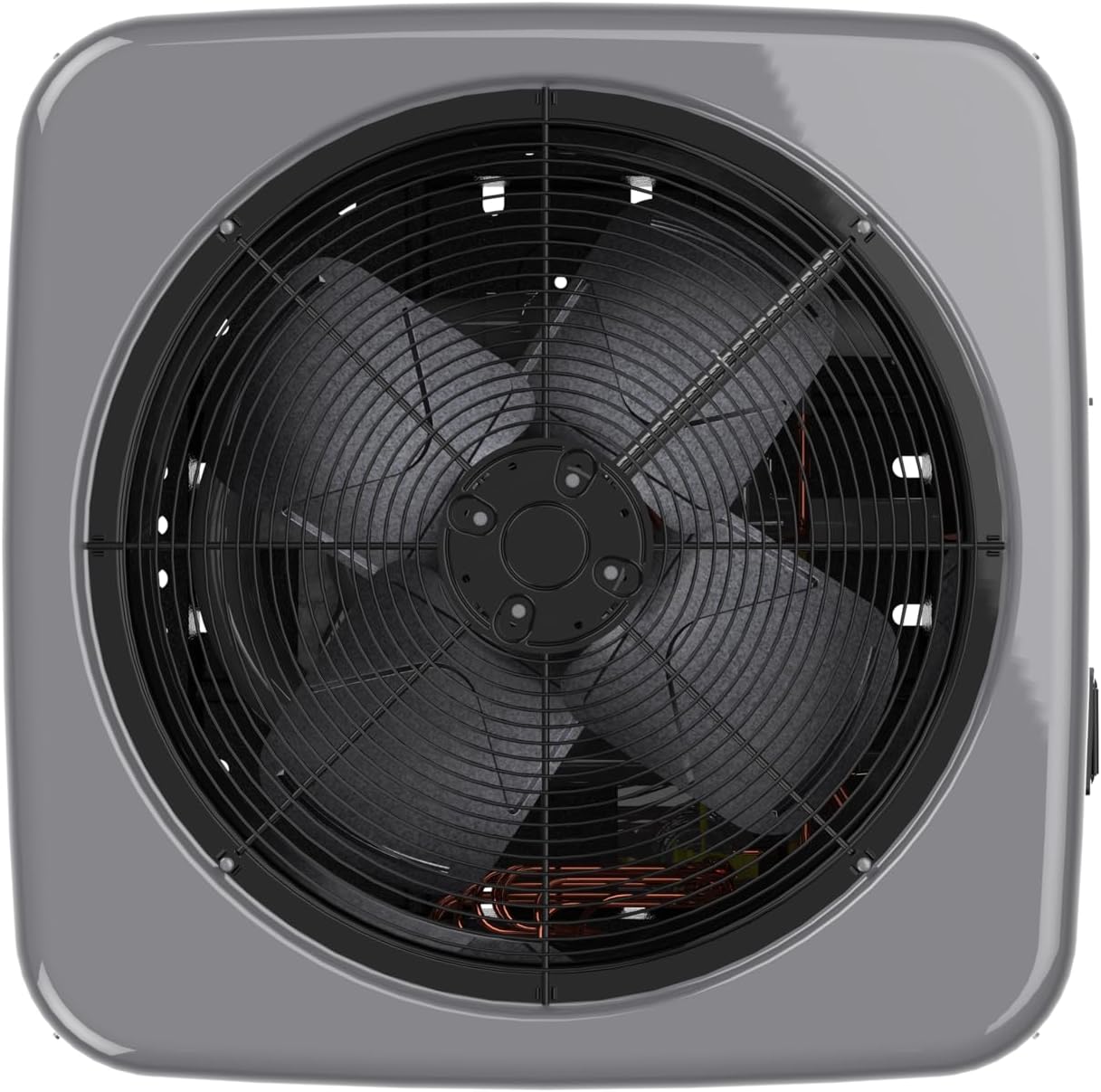

• The unit uses R410A refrigerant and a 1 speed, 1 phase, 60Hz, 240V fan motor with a 4 blade fan.
• Digital controls allow pool and spa temperature adjustment, and the system is compatible with most two wire and three wire remote systems.
• On board diagnostics provide service information and easy to read service codes to support troubleshooting and maintenance.
• The powder coated steel cabinet, scroll compressor, and sound isolation pads are designed to support durability and quieter operation.
────────────────────────────────────────
Product Overview
Raypak's Weatherking Pool and Spa Heat Pump is built for residential pool owners who need reliable electric heat pump performance in an outdoor installation. It is designed to warm pool or spa water efficiently while using a titanium heat exchanger and scroll compressor to support long term operation. Its rated 118,000 BTU capacity makes it a practical option for pool heating applications where consistent performance and serviceable construction are important.

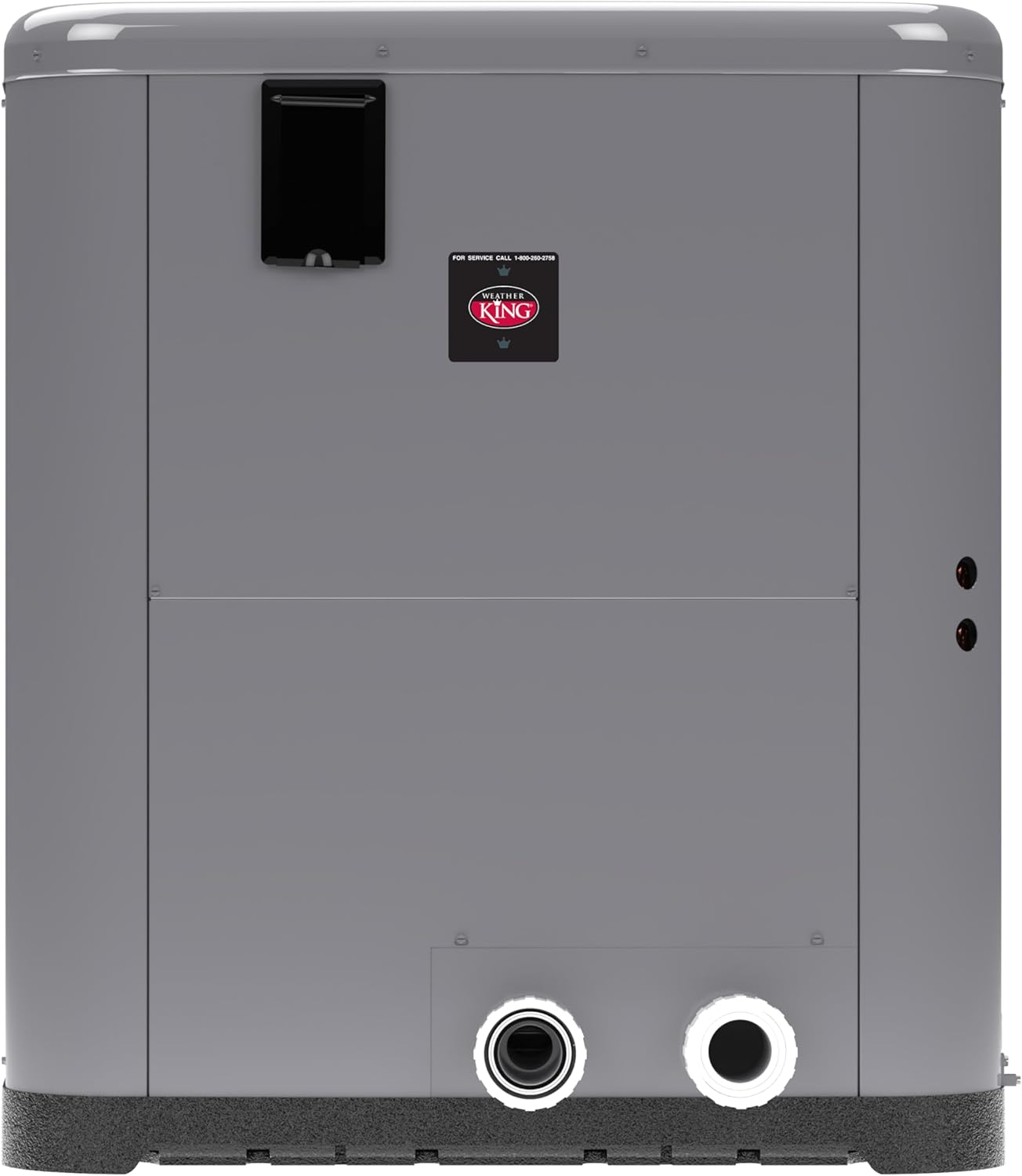

This model also includes digital controls for pool and spa temperature adjustment, remote compatibility with common control systems, and on board diagnostics that help identify operational issues more clearly. With a powder coated steel cabinet, offset 2 inch PVC union plumbing connections, and a design focused on easy handling and installation, this WeatherKing unit is well suited for replacement and new equipment applications where dependable pool heating is the priority.
