Home » Raypak | 009235 | P-R406A-EP-C Digital Propane Pool & Spa Heater, 399K BTU, High Altitude 3000-5000 ft

Raypak | 009235 | P-R406A-EP-C Digital Propane Pool & Spa Heater, 399K BTU, High Altitude 3000-5000 ft

In stock
SKU: 009235
Length: Width: Height:
$4,200.00

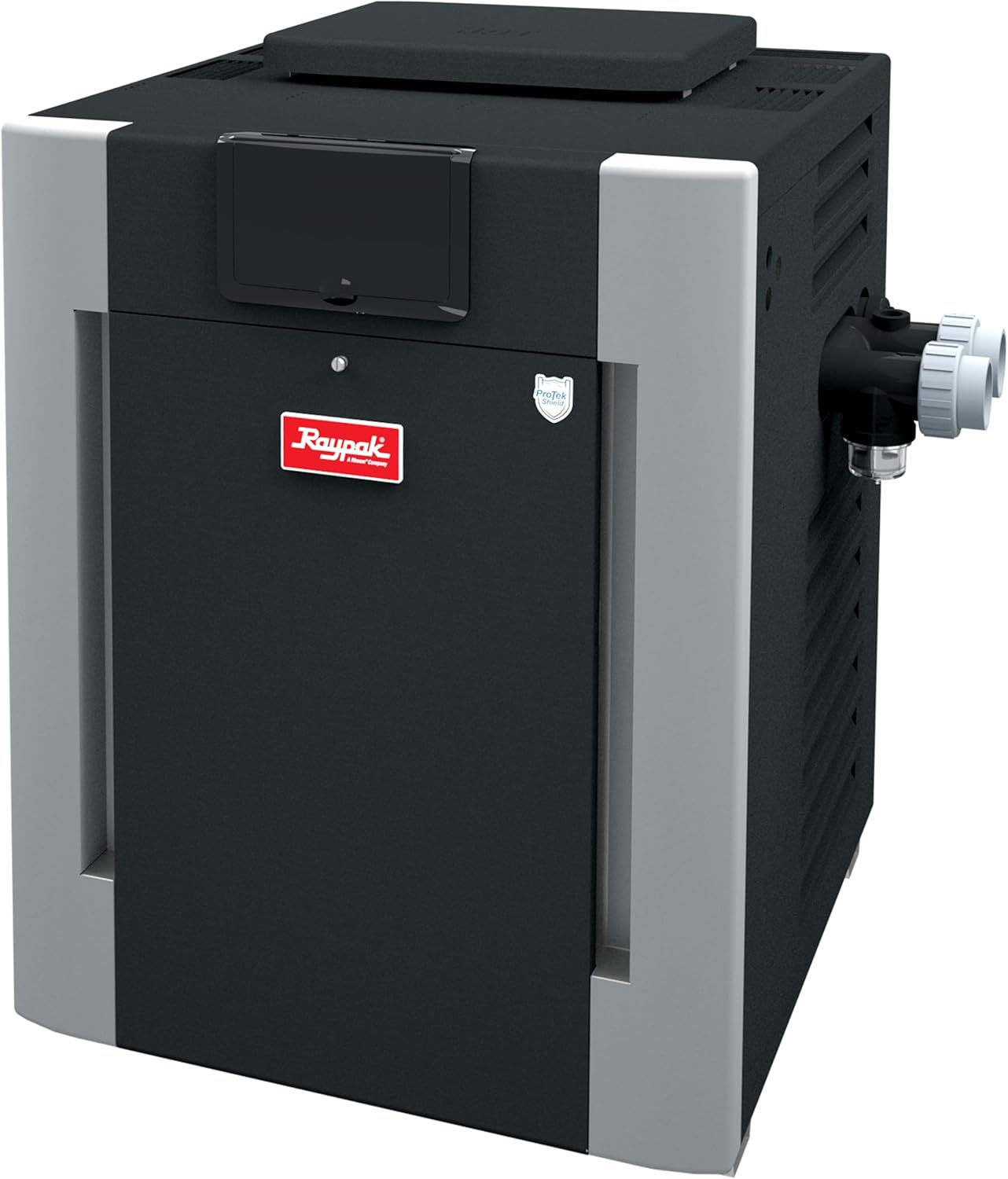

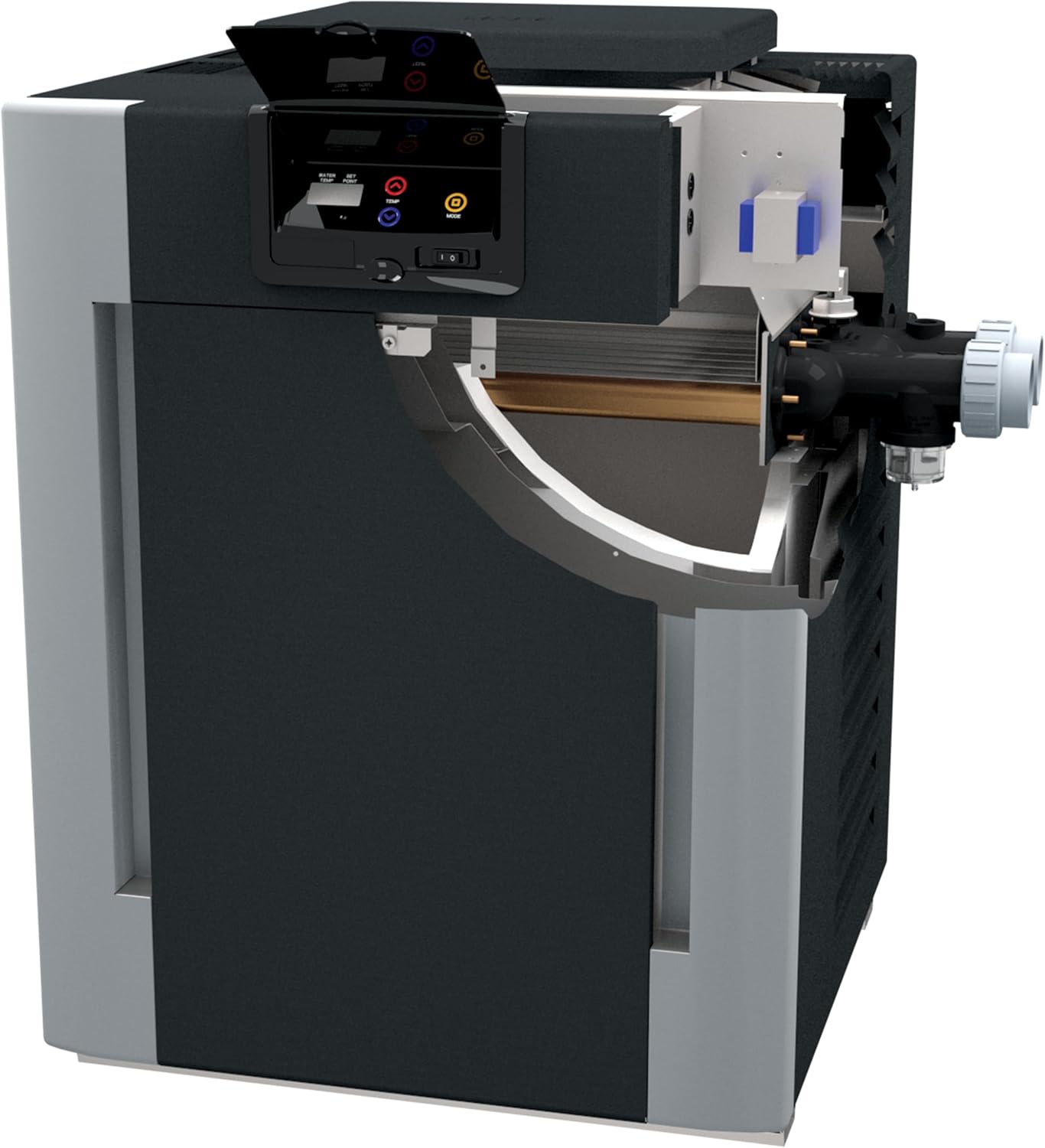

The Raypak 009235 is a P-R406A-EP-C digital propane pool and spa heater rated at 399,000 BTU, factory configured for high altitude installations between 3,000 and 5,000 feet. It uses electronic ignition rather than a standing pilot.

Features

  • 399,000 BTU output for large in-ground pools and fast spa recovery
  • Factory configured for 3,000 to 5,000 ft elevation
  • Electronic ignition, no standing pilot to relight
  • Digital control interface with temperature display and diagnostics
  • Runs on liquid propane where natural gas service is unavailable
  • Top output in the Raypak digital propane range

Specifications

  • Brand: Raypak
  • Manufacturer part number: 009235
  • Model: P-R406A-EP-C #59
  • Heating capacity: 399,000 BTU
  • Fuel: Liquid propane
  • Elevation rating: 3,000 to 5,000 ft
  • Ignition: Electronic
  • UPC: 840891012948

Frequently Asked Questions

Why is the R406A rated 399,000 BTU on propane?

The 406A chassis is rated 406,000 BTU on natural gas. On propane the certified input comes in slightly lower at 399,000 BTU. It is the same heater size, not a smaller model.

Why does elevation matter on a pool heater?

Air is thinner at altitude, so a heater set up for sea level runs rich and loses output. High altitude models are configured at the factory for the thinner air, which is why this one is specified for 3,000 to 5,000 feet.

What if my property is below 3,000 feet?

Order the 0 to 2,000 ft version, sold as 009227 in the same 406K propane size.

What does electronic ignition change?

There is no standing pilot flame burning between cycles. It lights on demand, which saves gas and removes the relight step after a windy day or a gas interruption.

What size pool does 399,000 BTU suit?

Large in-ground pools and pool and spa combinations where recovery time matters. Sizing depends on surface area, temperature rise, and climate, so have a pool professional size it for your install.

Does it need professional installation?

Yes. Propane sizing, venting, electrical, and local code make this a licensed installer job, and altitude configuration is another reason not to improvise.

Sold by AppaeTech Pool Supply.
