Raypak | 009233 | P-R266A-EP-C Digital Propane Pool & Spa Heater, 266K BTU, High Altitude 3000-5000 ft
Couldn't load pickup availability

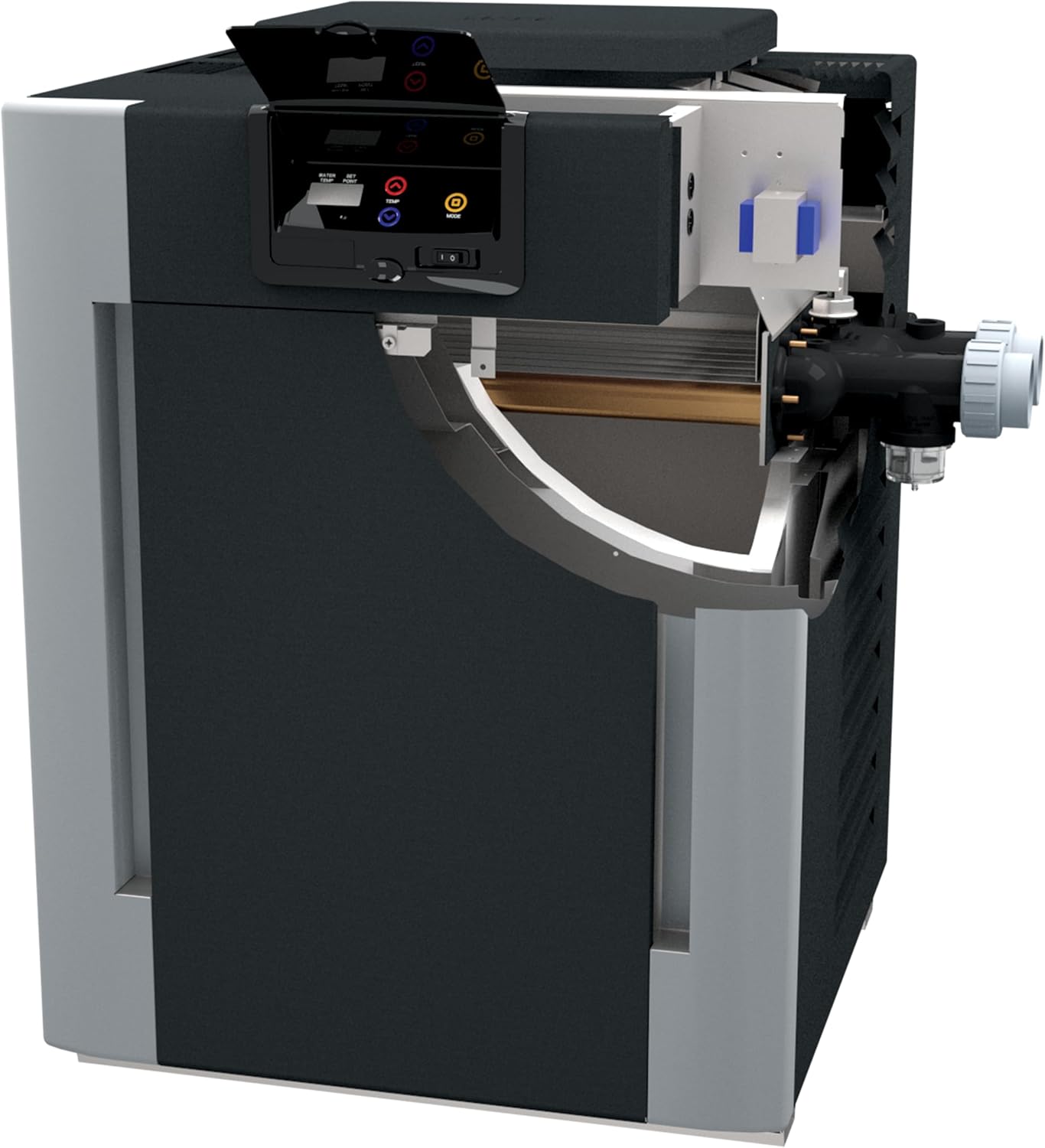

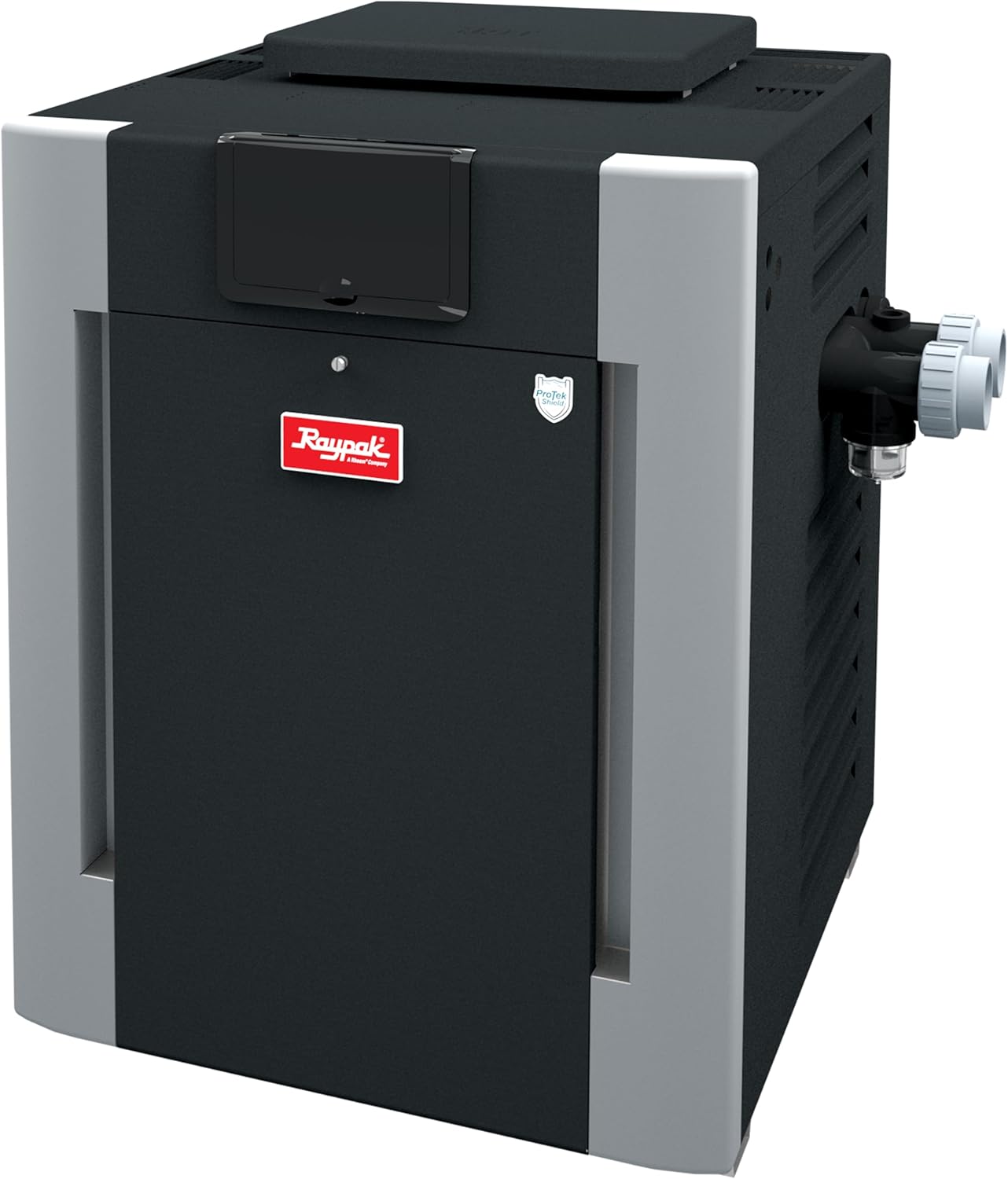

The Raypak 009233 is a P-R266A-EP-C digital propane pool and spa heater rated at 266,000 BTU, factory configured for high altitude installations between 3,000 and 5,000 feet. It uses electronic ignition rather than a standing pilot.
Features
- 266,000 BTU output for mid-size to larger in-ground pools and spas
- Factory configured for 3,000 to 5,000 ft elevation
- Electronic ignition, no standing pilot to relight
- Digital control interface with temperature display and diagnostics
- Runs on liquid propane where natural gas service is unavailable
- Cast iron and copper construction typical of the Raypak digital series
Specifications
- Brand: Raypak
- Manufacturer part number: 009233
- Model: P-R266A-EP-C
- Heating capacity: 266,000 BTU
- Fuel: Liquid propane
- Elevation rating: 3,000 to 5,000 ft
- Ignition: Electronic
- UPC: 840891012924
Frequently Asked Questions
Why does elevation matter on a pool heater?
Air is thinner at altitude, so a heater set up for sea level runs rich and loses output. High altitude models are configured at the factory for the thinner air, which is why this one is specified for 3,000 to 5,000 feet.
What if my property is below 3,000 feet?
Order the 0 to 2,000 ft version, sold as 009225 in the same 266K propane size. Installing a high altitude unit at low elevation is the same mismatch in reverse.
What does electronic ignition change?
There is no standing pilot flame burning between cycles. It lights on demand, which saves gas and removes the relight step after a windy day or a gas interruption.
What size pool does 266,000 BTU suit?
Mid-size to larger in-ground pools and pool and spa combinations. Sizing depends on surface area, temperature rise, and climate, so have a pool professional size it for your install.
What does P-R266A-EP-C mean?
It is Raypak's model code. P is pool, R266A is the 266,000 BTU chassis, E is electronic ignition, P is propane, and C is the copper heat exchanger.
Does it need professional installation?
Yes. Propane sizing, venting, electrical, and local code make this a licensed installer job, and altitude configuration is another reason not to improvise.
Sold by AppaeTech Pool Supply.
