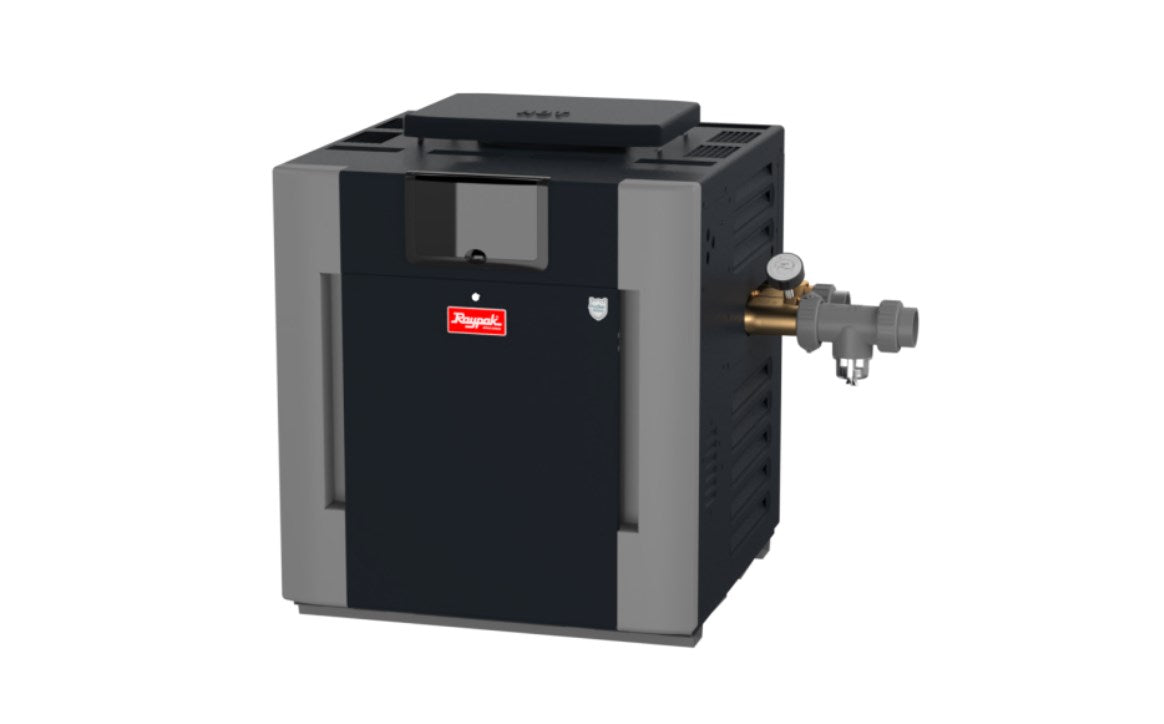

Raypak | 017708 | 407A Low NOx ASME Natural Gas Pool & Spa Heater, 399K BTU, Bronze Headers, 0-5000 ft
Couldn't load pickup availability
The Raypak 017708 is a 407A Low NOx ASME certified digital natural gas pool and spa heater rated at 399,000 BTU, built with bronze headers and a #26 orifice, configured for elevations from 0 to 5,000 feet.
Features
- 399,000 BTU output for large and commercial pools
- ASME certified for commercial, municipal, and institutional installations
- Low NOx combustion meets air quality requirements in regulated districts
- Bronze headers for continuous duty commercial service
- #26 orifice, 0 to 5,000 ft elevation
- Electronic ignition with digital diagnostics
Specifications
- Brand: Raypak
- Manufacturer part number: 017708
- Model: 407A Low NOx ASME #26
- Heating capacity: 399,000 BTU
- Fuel: Natural gas
- Headers: Bronze
- Certification: ASME
- Elevation: 0 to 5,000 ft
- UPC: 840891042006
Frequently Asked Questions
Do I need both ASME and Low NOx?
They answer different requirements. ASME is a pressure vessel standard demanded by commercial and municipal code. Low NOx is an emissions standard demanded by air quality districts. A commercial pool in California typically needs both, which is what this model covers.
What is the difference between the 406A and the 407A?
The 407A is the Low NOx version of the same size class, rated 399,000 BTU.
Why bronze headers?
Bronze holds up better than standard header materials under continuous commercial duty and aggressive water chemistry, which is why commercial specs call for it.
What elevation does the #26 orifice cover?
0 to 5,000 ft, a wider band than the standard configurations. Above 5,000 ft, ask us before ordering.
Can I use this on a residential pool?
Yes, but you are paying for ASME certification you likely do not need. A residential Low NOx 407A is the better value unless local code says otherwise.
Does it need professional installation?
Yes, and commercial installations typically require permitting and inspection in addition to a licensed installer.
Sold by AppaeTech Pool Supply.
