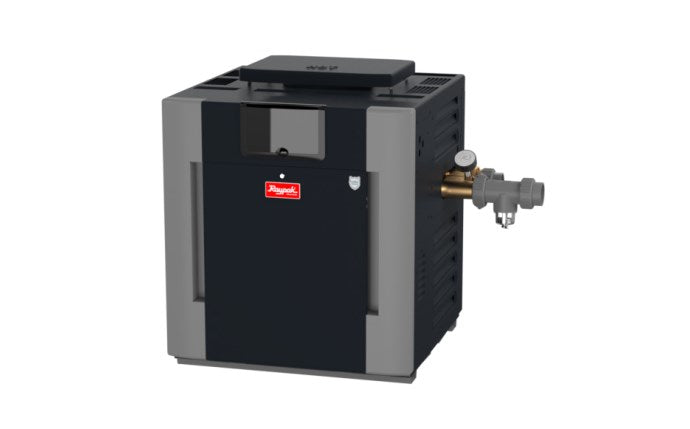

Raypak | 017705 | 207A Low NOx Digital Natural Gas Pool & Spa Heater, 199.5K BTU, Bronze Headers
Couldn't load pickup availability
The Raypak 017705 is a 207A Low NOx digital natural gas pool and spa heater rated at 199,500 BTU, built with bronze headers and a #26 orifice. The Low NOx series is what regulated air quality districts require.
Features
- 199,500 BTU output for smaller in-ground pools and spas
- Low NOx combustion meets air quality requirements in regulated districts
- Bronze headers for durability under demanding service
- #26 orifice configuration
- Electronic ignition, pilot fires only on a call for heat
- Digital control interface with diagnostics
Specifications
- Brand: Raypak
- Manufacturer part number: 017705
- Model: 207A Low NOx #26
- Heating capacity: 199,500 BTU
- Fuel: Natural gas
- Headers: Bronze
- UPC: 840891041979
Frequently Asked Questions
Do I need a Low NOx heater?
If you are in California, Texas, or another regulated air quality district, yes. Many jurisdictions will not permit a standard heater. Check with your local air district before ordering.
What is the difference between the 206A and the 207A?
The 207A is the Low NOx version of the same size class, rated 199,500 BTU. If your area does not require Low NOx, the 206A models are the alternative.
Why bronze headers?
Bronze resists corrosion and holds up better than standard header materials under demanding service and aggressive water chemistry.
What size pool does it suit?
Roughly 20,000 to 25,000 gallons in warm climates. In cooler climates or on an exposed pool with no cover, size down to around 15,000 to 18,000 gallons.
What are the other sizes in the Low NOx line?
This 207A is 199,500 BTU, the 267A is 266,000, the 337A is 332,500, and the 407A is 399,000.
Does it need professional installation?
Yes. Gas sizing, venting, electrical, and local code make this a licensed installer job.
