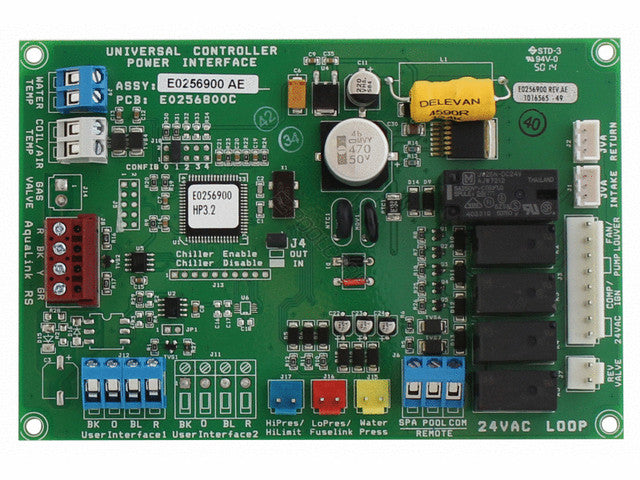

Jandy | R3009200 | Power Interface PCB | JE, EE-Ti, and AE-Ti Heat Pump Control Board

This power interface PCB is a replacement electronic control component designed for compatible JE, EE-Ti, and AE-Ti heat pump models. It serves as part of the heat pump’s internal electrical control system, supporting communication and power interface functions between connected components inside the unit.

Built for heat pump service and repair applications, this replacement board is used when the existing PCB is damaged, failed, or no longer operating correctly within the equipment’s control circuit.

━━━━━━━━━━━━━━━━━━

Key Features

• Replacement power interface PCB for compatible pool and spa heat pump models

• Designed for JE, EE-Ti, and AE-Ti heat pump applications

• Supports internal electrical interface functions within the heat pump control system

• Used to restore proper control board operation in compatible heating equipment

• Replacement component for failed, damaged, or malfunctioning power interface boards

• Suitable for pool heat pump troubleshooting, service, and repair work

• Important electronic component within the heat pump’s control and operating system

• Professional installation is recommended due to electrical wiring, diagnostics, and equipment safety requirements

━━━━━━━━━━━━━━━━━━

Product Overview

This power interface PCB is used inside compatible pool and spa heat pumps as part of the unit’s internal control system. It helps support the electrical interface between heat pump components, allowing the equipment’s controls and operating circuits to function as intended.

The board is commonly replaced during heat pump diagnostics when control issues, communication problems, power interface faults, or electronic board failures are identified. Because heat pumps rely on properly functioning control electronics, a failed PCB can affect startup, operation, safety functions, or overall equipment reliability.

During installation, power to the heat pump should be disconnected and the unit should be inspected by a qualified technician. Existing wiring, connectors, board mounting points, and component condition should be verified before the replacement board is installed.

After replacement, the heat pump should be tested through normal operating modes to confirm proper function. Routine maintenance should include keeping the equipment compartment clean, checking for moisture intrusion, inspecting wiring and connectors, and addressing any electrical or control issues before they affect system performance.
