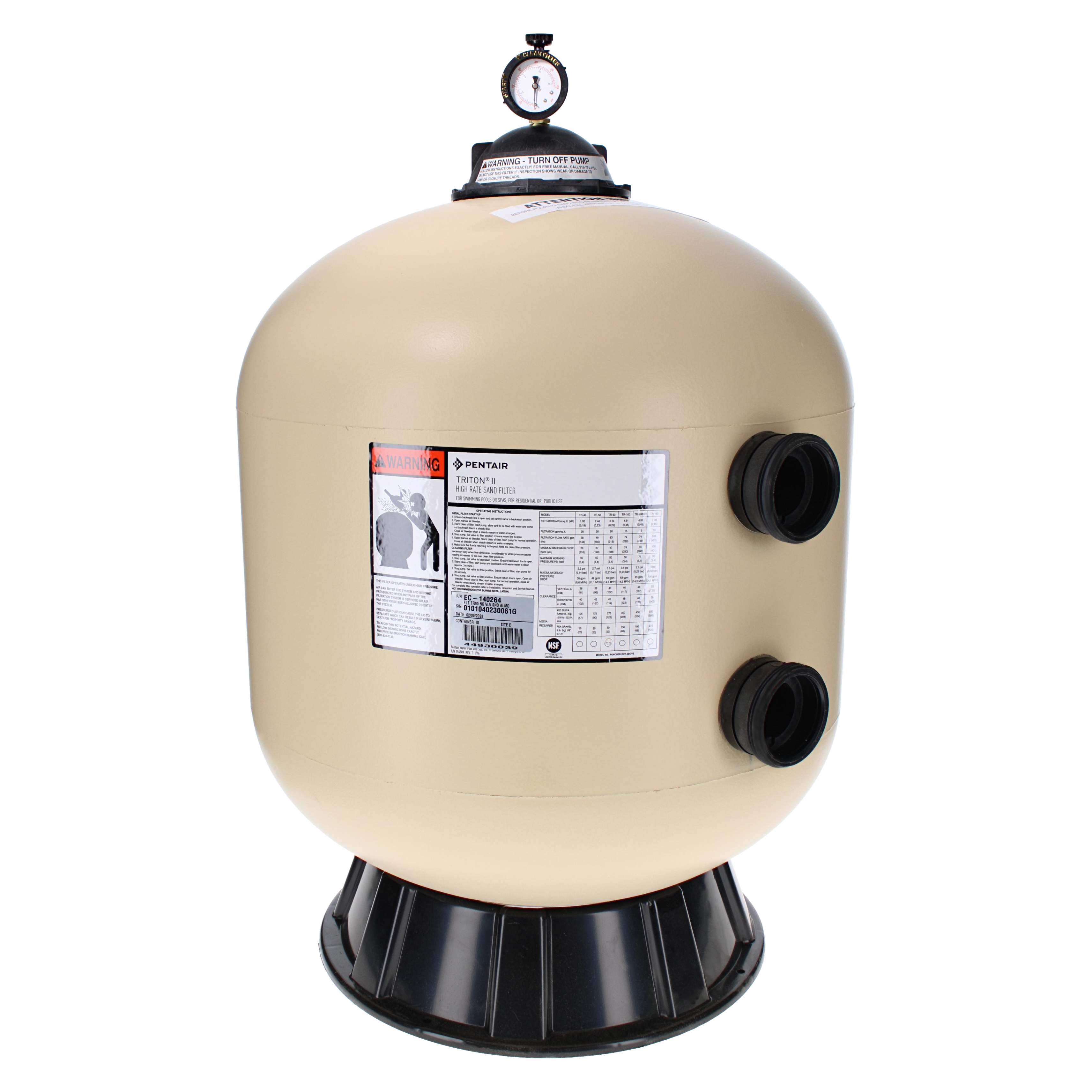

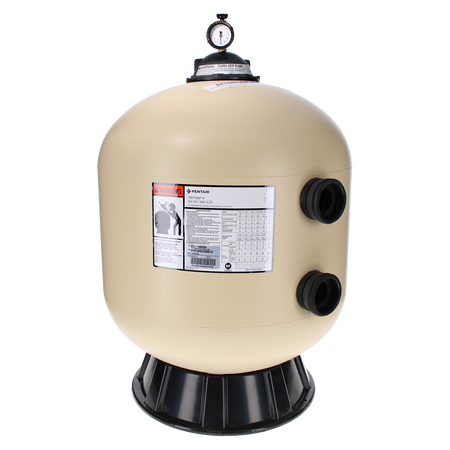

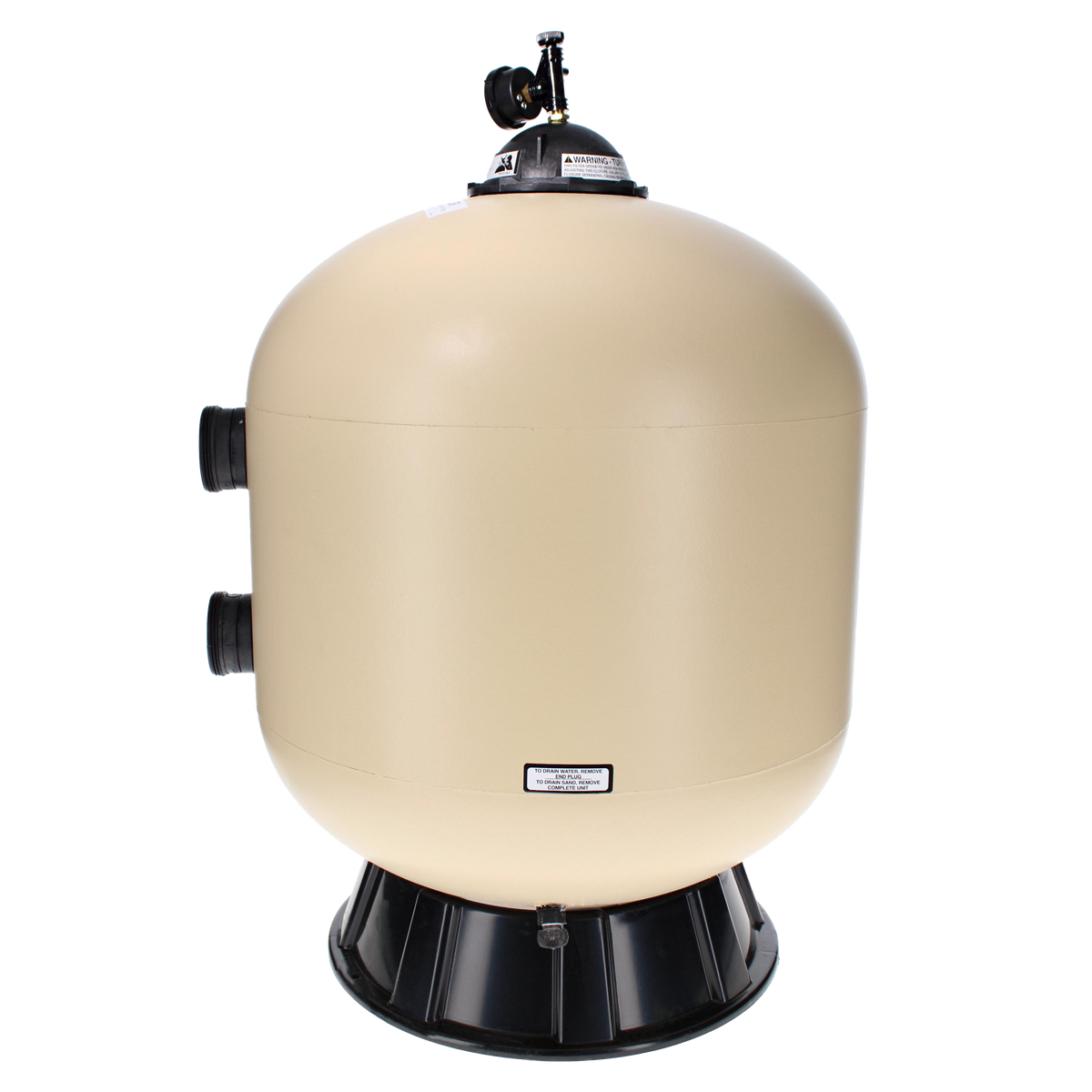

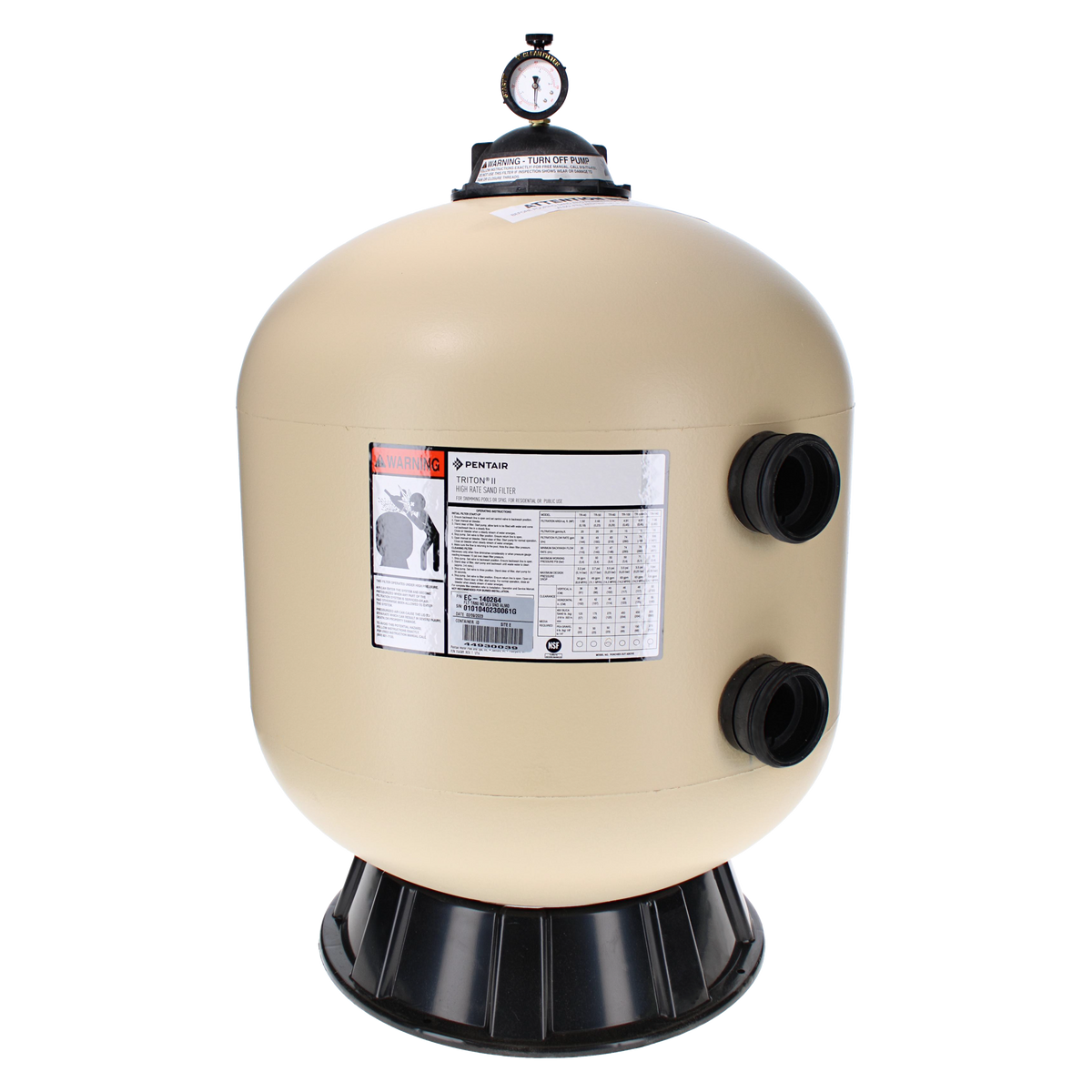

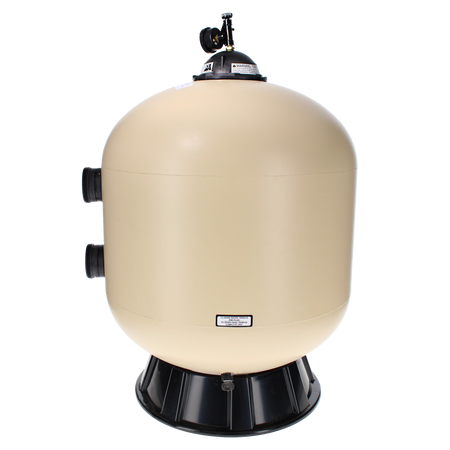

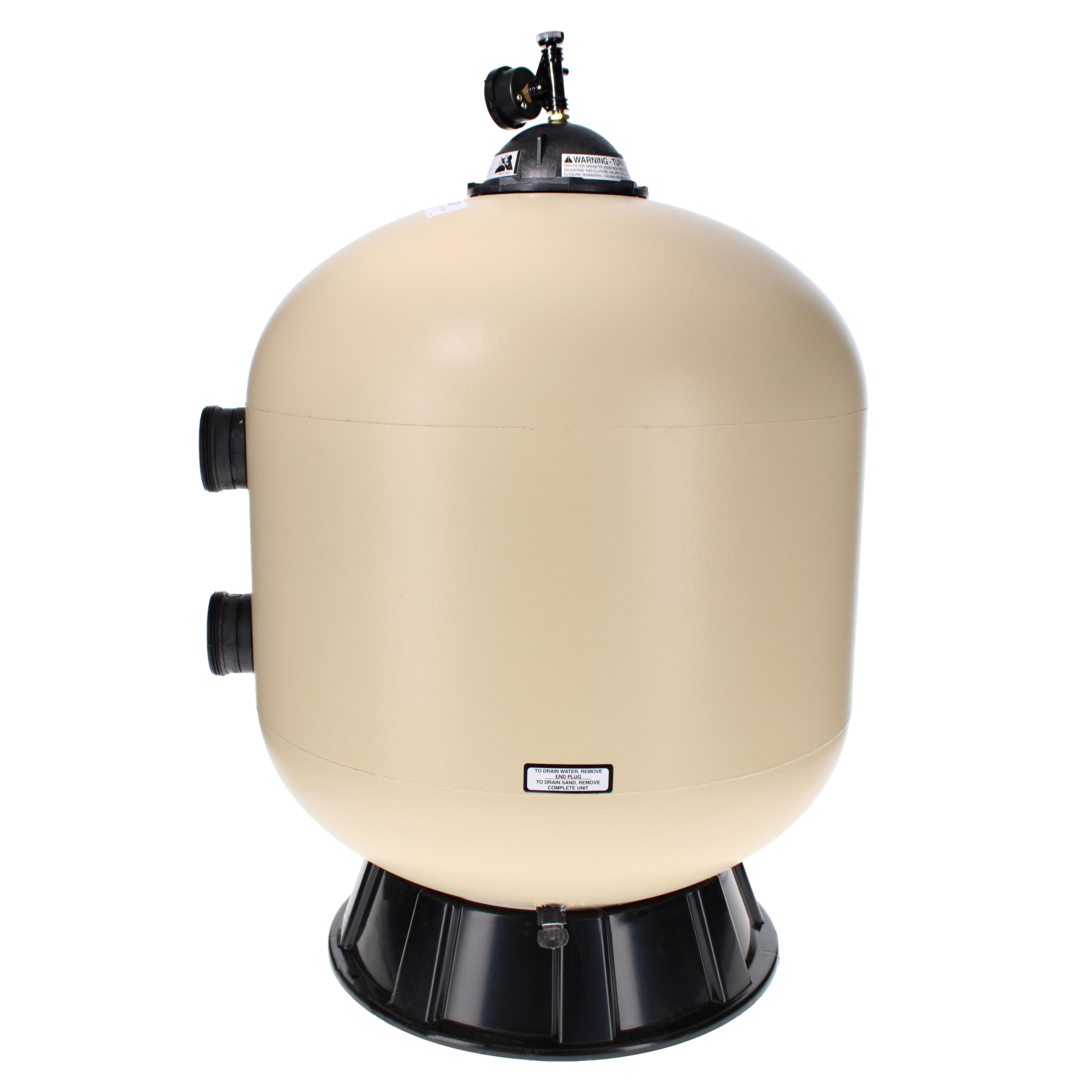

Pentair | EC-140264 | Triton II TR60 Side Mount Sand Filter | 24" Diameter Almond
Couldn't load pickup availability
The Pentair EC-140264 Triton II TR60 is a 24-inch diameter fiberglass sand filter featuring a side mount valve configuration and almond finish. Engineered with Pentair’s time-proven internal design, this filter ensures even water distribution across the sand bed for efficient particulate removal and extended run times between backwashing. The one-piece, fiberglass-reinforced tank incorporates a UV-resistant surface for long-term durability in residential pool environments.
────────────────────────────────────────
Key Features
• 24-inch diameter Triton II TR60 sand filter with side mount configuration.
• 3.14 square feet of effective filtration area for balanced flow performance.
• Designed for residential pool applications requiring dependable sand filtration.
• One-piece fiberglass-reinforced tank with UV-resistant surface finish.

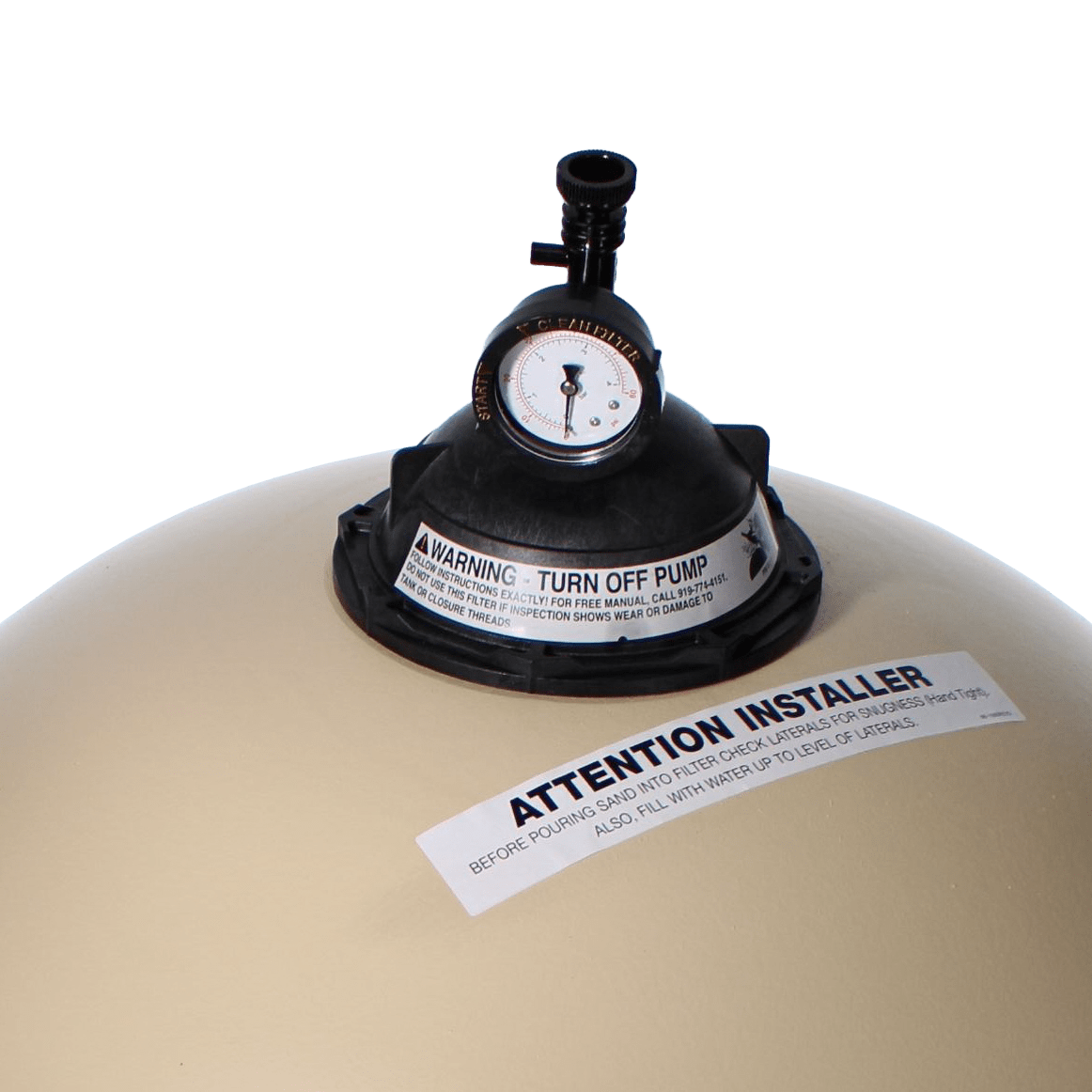

• Heavy-duty threaded closure with integrated pressure relief valve.
• Swing-away diffuser provides access to sand bed and internal components.
• Combination sand and water drain simplifies servicing and winterization.
• Maximum operating pressure rated at 50 psi.
────────────────────────────────────────
Product Overview
The Pentair EC-140264 Triton II TR60 Side Mount Sand Filter is engineered to deliver consistent filtration performance through a precisely controlled internal flow system. Its 24-inch tank diameter and 3.14 square feet of filtration area support efficient water clarification while maintaining steady hydraulic performance. The internal design promotes uniform water distribution across the sand bed, helping maximize filtration efficiency and extend operational cycles between required backwashing.
Constructed using Pentair’s fiberglass-reinforced tank process with a UV-resistant exterior, the TR60 is built for long-term durability in outdoor equipment installations. The side mount configuration allows simplified plumbing alignment and service accessibility. With a maximum operating pressure of 50 psi and compatibility with standard #20 silica sand media, the Triton II TR60 provides reliable, low-maintenance filtration performance for residential pool systems.
