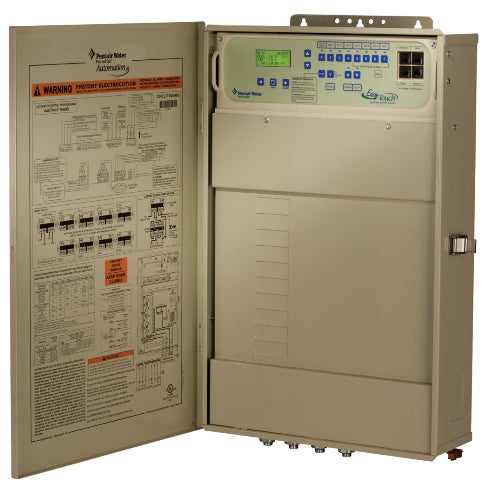

Pentair | 520540 | EasyTouch 8 Pool & Spa Automation System (Model 520540) – Trade Grade Base System

Pentair EasyTouch 8 automation system (Model 520540) is a trade-grade, pool & spa control center featuring 8-function circuitry, two valve actuators, robust diagnostics, and compatibility with ScreenLogic2 for remote control via mobile devices.

Key Features

• Trade-Grade Automation Control
  Professional-grade system engineered for reliable, long-lasting operation in residential and commercial settings.

• Comprehensive 8-Function Load Center
  Supports up to eight accessory circuits—ideal for pumps, waterfalls, lighting, heating, and features like laminar streams.

• Pool and Spa Shared Equipment Ready
  Includes two valve actuators for automatic switching between pool and spa configurations without manual interaction.

• Expandable Breaker Infrastructure
  Built-in 150 A (or 125 A, depending on regional configuration) breaker base with capacity for up to ten 1″ breakers enables system growth and flexibility.

• Built-In Diagnostics & Service Mode
  Onboard diagnostics test relays, sensors, and communication ports; includes a diagnostic display for fast troubleshooting and maintenance.

• Remote Control Compatibility
  Pairs with ScreenLogic2 for remote access via mobile devices, tablets, and smart home systems—streamlining operation and control.

• Wide Equipment Integration
  Designed to work natively with Pentair components such as IntelliFlo/VF pumps, UltraTemp heaters, IntelliBrite lighting, MagicStream laminar jets, and IntelliChem controllers for seamless system cohesion.

• UL & cUL Certified, Weather-Resistant Design
  Durable, code-compliant enclosure rated for outdoor installation with robust protection against the elements.

Product Overview

The Pentair EasyTouch 8 Automation System (Model 520540) is a professional-grade control panel built to manage all aspects of a pool–spa system seamlessly. As a base system (“no ICP”), it does not include an indoor control panel, making it a flexible core suited for both new installations and retrofits.

Featuring eight programmable relay circuits, this load center delivers full visibility and control over pumps, lighting, heating, and water features. It’s designed for shared equipment setups—dual valve actuators automate water routing between the pool and spa zones, offering unmatched convenience and automation.

With built-in diagnostics and display functions, service professionals can pinpoint issues fast, minimizing downtime. Its expandable breaker layout supports future enhancements such as additional lighting or ancillary equipment.

Paired with optional ScreenLogic2, the system can be controlled remotely from smartphones or smart home platforms, adding another layer of convenience and modern functionality. It’s also designed to integrate smoothly with Pentair’s ecosystem, supporting smart pumps, lighting, heaters, and more for a unified and intelligent pool system.

Fully certified, rugged, and installer-friendly, the EasyTouch 8 (520540) delivers powerful control and system flexibility for pro-grade automation setups.
