Jandy | TRUCLEARXL + TRUCLEARPS | TruClear XL Complete Salt Chlorination System | Smart Cell with Unions and Smart Power Pack, Pools to 45,000 Gallons

This is the complete Jandy TruClear XL salt chlorination system: the TRUCLEARXL Smart Chlorinator Cell with unions paired with the TRUCLEARPS Smart Power Pack, sold together. Jandy ships these as two separate parts and neither one works without the other, so buying the combo means you get a matched, working system in one order instead of tracking down the pieces separately.

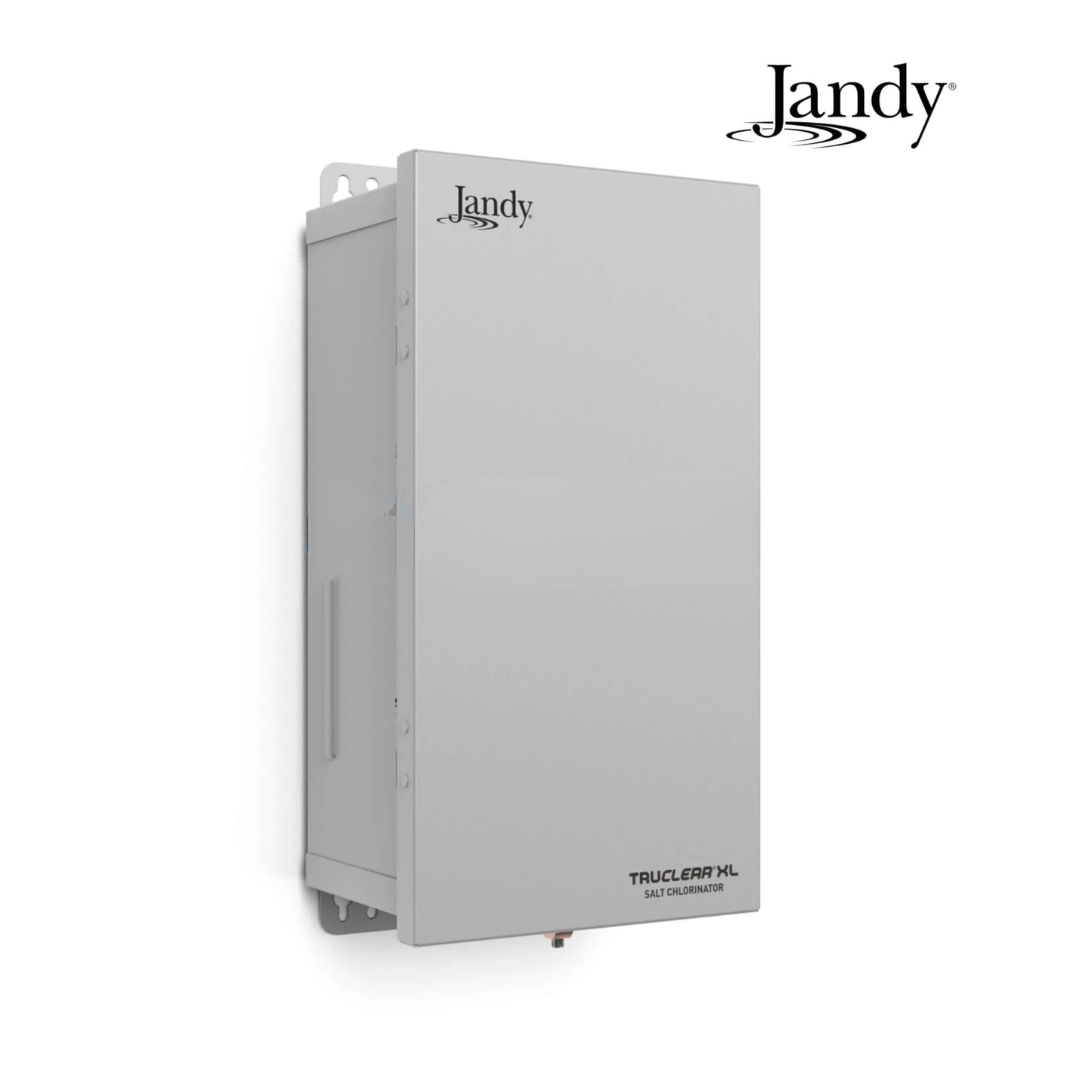

The system is rated for inground pools up to 45,000 gallons. The power pack mounts at the equipment pad and converts incoming AC into the low voltage DC the cell needs. The cell plumbs into the return line with the included unions, where dissolved salt passes over the plates and is converted to chlorine. The chlorine sanitizes the water, reverts to salt, and the cycle repeats, so you stop hauling and dosing chlorine.

Two things separate the XL from the older TruClear. Temperature compensation scales chlorine production to water temperature, which protects plate life instead of running the cell hard in cold water where it wears fastest. Dual gas traps handle flow detection and shut generation down when circulation is insufficient, rather than letting the cell run dry and accumulate gas.

It runs at low flow rates, so it works properly with a variable speed pump on a slow overnight schedule instead of forcing you to run the pump fast just to keep the chlorinator happy. Connect the power pack to an AquaLink automation system over RS-485 and the whole thing runs from the iAquaLink app.

If you are on an AquaPure system today, the XL cell installs as a drop-in retrofit using your existing AquaPure union tailpieces. The plumbing stays where it is.

Features

• Complete system: TruClear XL cell with unions plus TruClear XL Smart Power Pack
• Rated for inground pools up to 45,000 gallons
• Temperature compensation adjusts output to protect cell life
• Dual gas traps for flow detection and safe shutdown
• High resistance to calcium buildup for less maintenance
• Cell authentication for genuine Jandy cells
• Works at low flow rates, fully compatible with variable speed pumps
• Unions included for straightforward plumbing
• Drop-in retrofit for existing AquaPure union tailpieces
• RS-485 connection to any Jandy automation system
• iAquaLink app control when paired with AquaLink automation
• Weather resistant power pack housing for equipment pad mounting

Specifications

• Brand: Jandy
• Kit components: TRUCLEARXL cell with unions, TRUCLEARPS Smart Power Pack
• Cell part number: TRUCLEARXL, UPC 052337095365
• Power pack part number: TRUCLEARPS, UPC 052337095693
• Power pack manufacturer reference: WW000138
• Series: Jandy TruClear XL
• Pool size maximum: 45,000 gallons
• Required salinity: 3,000 PPM
• Automation interface: RS-485
• Plumbing: unions included
• Power pack weight: 11.5 lb
• Power pack shipping dimensions: 16.63 x 10.63 x 9 in
• Cell country of manufacture: United States
• Power pack country of manufacture: Mexico
• Application: residential and commercial inground pools

Frequently Asked Questions

What is in the box?

Two boxes. One holds the TruClear XL Smart Chlorinator Cell with unions, the other holds the TruClear XL Smart Power Pack. Together they make a complete working salt system.

Why are these sold as two parts?

That is how Jandy builds them. The cell is a wear item that gets replaced every few years, and the power pack outlasts several cells. Buying the combo gets you both for a new install or a full replacement.

What size pool does this handle?

Up to 45,000 gallons. For smaller pools the standard TruClear system is the right match instead.

Can I use a non-Jandy replacement cell later?

No. The XL system uses cell authentication, so aftermarket and clone cells will not run on it. Plan on a genuine Jandy XL cell when the time comes.

I have an AquaPure system. Can I switch to this?

Yes. The XL cell installs as a drop-in retrofit using your existing AquaPure union tailpieces, so no replumbing is needed.

What salt level does it need?

3,000 PPM. Test before startup and again after any large water addition.

Does it work with a variable speed pump?

Yes. It operates at low flow rates, which is what lets you run a variable speed pump on slow overnight cycles.

Can I control it from my phone?

Yes, when connected to an AquaLink automation system. The power pack links over RS-485 and runs through the iAquaLink app.

Do I still need to add salt?

Yes. Salt is not included and is purchased locally. The amount depends on pool volume and your current reading.

Can I install this myself?

The power pack is a hard wired electrical component and the cell plumbs into the return line. Installation should be done by a licensed electrician or a qualified pool professional, and local code applies. The chlorinator should be wired on the same circuit as the filter pump so the cell cannot run in a no-flow condition.
