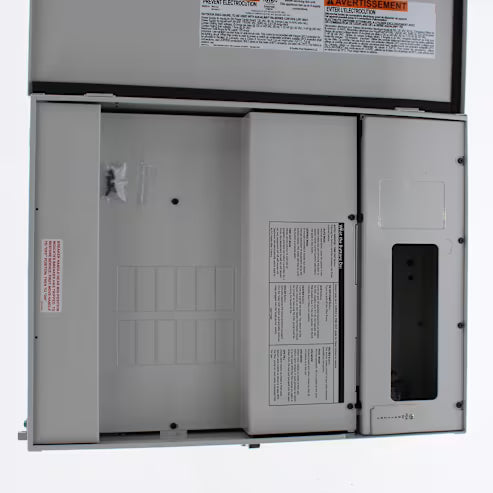

Jandy | 6614-LDG | AquaLink RS Sub-Panel Power Center | Gray, 12 Breaker Slots, 125A, Four 3 HP Relays
Couldn't load pickup availability

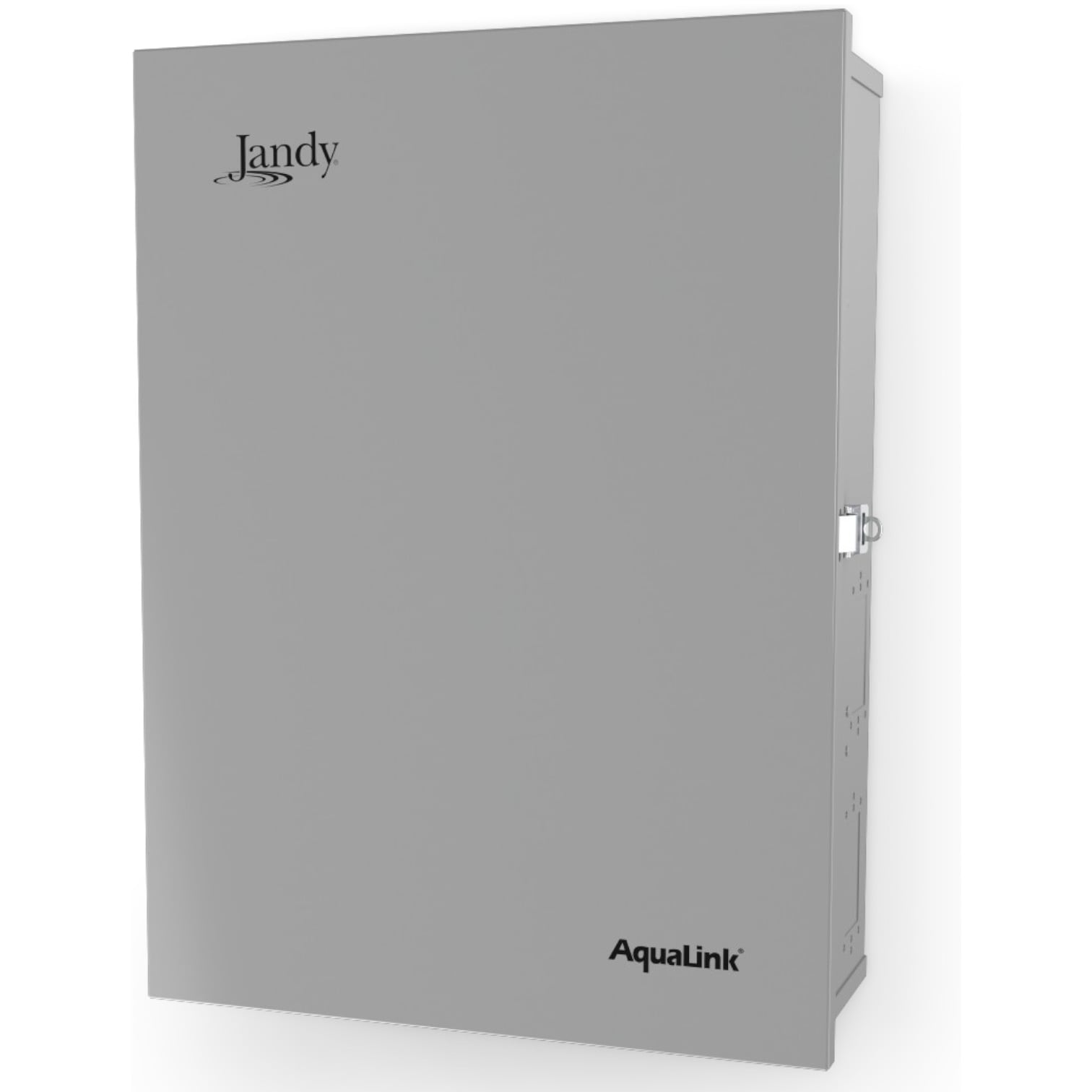

The Jandy 6614-LDG is the AquaLink RS sub-panel power center in gray. It is the metal box that lives on your equipment pad and does the actual switching. The bezel, printed circuit board, service control panel, and relays of your AquaLink control system all mount inside it, and your pool equipment wires into it. If you are building or rebuilding an AquaLink RS or AquaLink PDA system, a power center is not optional. The control system will not run without one.
The sub-panel version is the one to buy when you want breaker capacity in the same enclosure instead of a separate subpanel on the wall. It carries twelve 1 inch breaker mount slots rated for 125 amps total, plus a side knockout for a GFCI. That combination is what makes it the standard choice on new builds and on pads where the existing electrical is being redone anyway.
It ships with four 3 HP relays and accepts up to eight, so it operates up to eight circuits out of one box. If your control system needs more relays than that, they come with the control system itself. For larger installations you can add up to three auxiliary power centers within 500 feet of the primary one.
Construction is powder-coated galvanized steel for outdoor service, with multiple knockouts sized from 1/2 inch to 1-1/2 inch conduit and a top-down installation layout that keeps the wiring sane. It works with every AquaLink RS control interface: All Button, OneTouch, TouchLink, and PDA.
Features
- Sub-panel power center for AquaLink RS and AquaLink PDA control systems
- Twelve 1 inch breaker mount slots, rated 125 amps total
- GFCI side knockout
- Four 3 HP relays included, expandable to eight
- Operates up to 8 circuits
- Powder-coated galvanized steel enclosure for outdoor equipment pads
- Multiple knockouts for 1/2 in to 1-1/2 in conduit
- Simple top-down installation
- Service and time-out for all circuits
- Add up to three auxiliary power centers within 500 feet of the primary
- Accepts optional surge protection for all components
- Works with All Button, OneTouch, TouchLink, and PDA interfaces
- UL, ETL, and CE listed
Specifications
- Brand: Jandy
- Manufacturer part number: 6614-LDG
- Series: Jandy Pro Series AquaLink RS
- Type: sub-panel power center
- Color: gray
- Breaker slots: 12, one inch
- Total amperage rating: 125 A
- Relays included: four 3 HP
- Maximum relays: eight
- Circuits operated: up to 8
- Enclosure: powder-coated galvanized steel
- Conduit knockouts: 1/2 in to 1-1/2 in
- Listings: UL, ETL, CE
- Circuit breakers: not included
- Application: inground pool and spa equipment pads
Frequently Asked Questions
Do I need a power center at all?
Yes, if you are running AquaLink RS or AquaLink PDA. The control system boards and relays have to mount in a power center. There is no way around it.
Are circuit breakers included?
No. Breakers are never supplied with any Jandy power center model and are purchased separately. Size them to your equipment and local code.
What is the difference between a sub-panel and a standard power center?
The sub-panel version adds the twelve breaker slots and the GFCI knockout, and carries the 125 amp rating. A standard or foundation power center holds the control hardware but does not give you breaker capacity in the same box.
How does this differ from a PureLink power center?
PureLink power centers have salt water chlorinator electronics built in. This one does not. If you want automation and salt chlorination in a single enclosure, look at the PureLink models such as the 6614AP-LG instead.
How many relays does it come with?
Four 3 HP relays, and it accepts up to eight. If your control system calls for more relays than the power center ships with, those relays come with the control system.
I have a 6614-LD. Is this the replacement?
The 6614-LDG is the current gray sub-panel power center in the AquaLink RS line. Confirm your existing enclosure and transformer configuration before ordering, since older units vary.
Can I run more than eight circuits?
Yes, by adding auxiliary power centers. You can add up to three within 500 feet of the primary power center.
Which control panels work with it?
All AquaLink RS interfaces: All Button, OneTouch, TouchLink, and PDA.
Can I install this myself?
No. This is a hard wired electrical enclosure carrying up to 125 amps. Installation should be done by a licensed electrician, and local electrical code applies.
