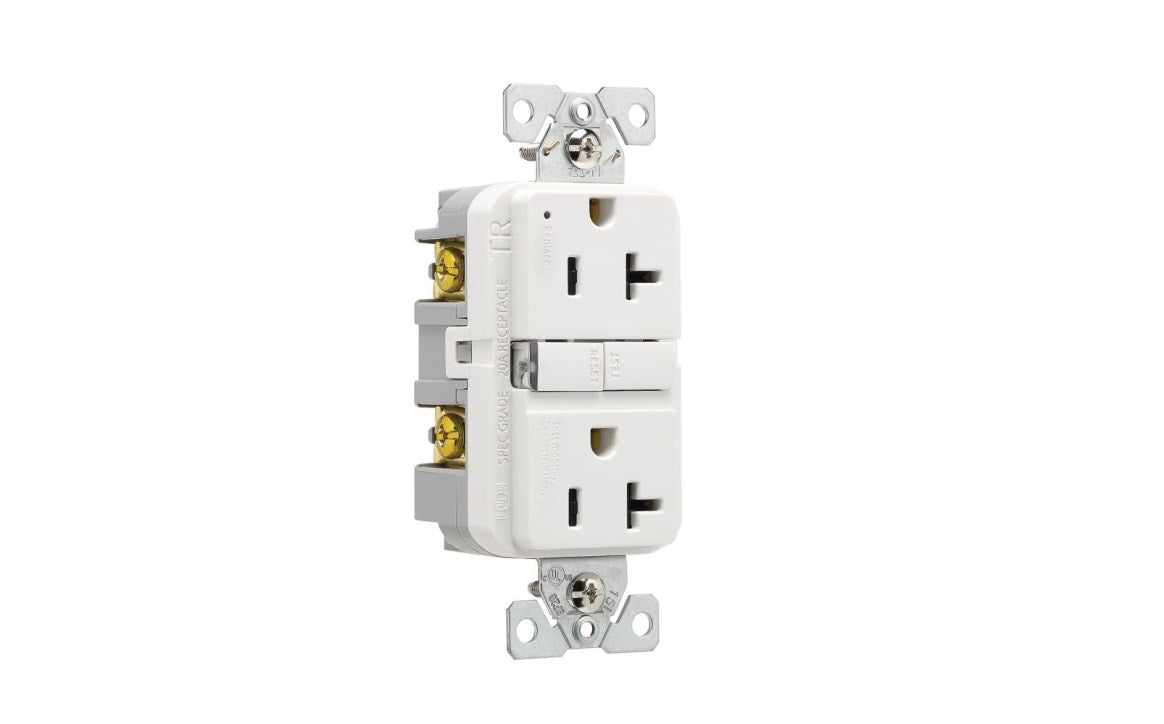

Eaton | TRGF20W | Slim Self-Test Tamper-Resistant GFCI 20A

The Eaton TRGF20W is a 20A, 125V slim self-test GFCI receptacle with tamper-resistant protection. Its slim design provides a reduced installation depth while maintaining the required GFCI protection. The white receptacle uses back- and side-wire connections and is supplied without a wallplate.

━━━━━━━━━━━━━━━━━━
Key Features
• 20A, 125V rating
• Self-test GFCI protection
• Tamper resistant design
• Slim 1.03" installation depth
• 5-20R NEMA configuration
• White finish; wallplate not included

━━━━━━━━━━━━━━━━━━
Product Overview
The Eaton TRGF20W Slim GFCI Receptacle is designed to provide GFCI protection in residential, commercial, and industrial electrical installations. Its self-test function automatically checks the GFCI protection, while the tamper-resistant design helps prevent unintended insertion of foreign objects.

The receptacle measures approximately 1.03" deep x 1.69" wide x 4.19" high and supports #14–10 AWG wire using back- and side-wire connections. The TRGF20W is rated 20A at 125V and uses a 5-20R configuration. A wallplate is not included.
