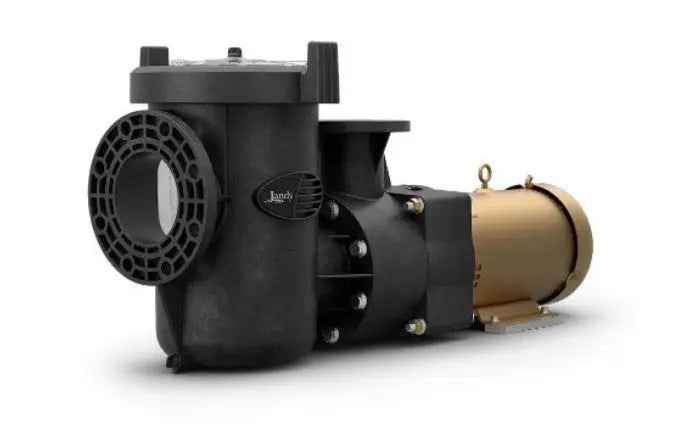

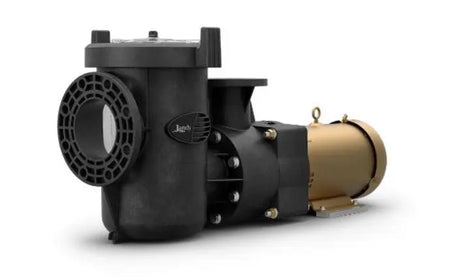

Jandy | JCP073ATS | JCP Pump with Strainer | TEFC 7.5 HP 208/230/460V 3 Phase Commercial Pump

Jandy JCP073ATS is a high-performance JCP commercial pool pump with integrated strainer and TEFC motor, rated at 7.5 HP with 208/230/460V 3-phase configuration. This pump is engineered for commercial pool circulation systems requiring high flow performance, durable construction, and reliable operation in demanding aquatic environments.

────────────────────────────────────────

Key Features

• Jandy JCP073ATS is a JCP commercial polymer pump with integrated strainer designed for high-performance pool circulation systems.
• 7.5 HP TEFC motor with 3-phase 208/230/460V configuration supports continuous-duty commercial operation.
• 6" suction and 4" discharge ANSI-150 flange connections allow integration into large-scale plumbing systems.
• 30% glass-filled polymer pump body, impeller, and diffuser provide durability and corrosion resistance.
• Premium efficiency motor design with Class H insulation supports inverter-ready operation and energy performance.
• Integrated strainer assembly features locking lid with radial-seal O-ring and pressure/suction relief capability.
• Back pull-out design allows easier service and maintenance without removing connected piping.
• Equipped with 316 stainless steel hardware and mechanical seal components for long-term durability.
• Compatible with standard NEMA JM frame motors for easier replacement and service flexibility.
• NSF-50 and UL1081 listed for commercial pool equipment compliance and safety standards.

────────────────────────────────────────

Product Overview

The Jandy JCP073ATS JCP Pump with Strainer is designed for commercial aquatic systems that require high-capacity water circulation, durability, and serviceability. As outlined in the installation manual, the JCP series is engineered to deliver strong hydraulic performance with improved priming capabilities using a specialized impeller and diffuser system.

This model features a robust polymer construction combined with stainless steel hardware and a TEFC motor, making it suitable for demanding environments such as public pools, water parks, hotels, and large residential systems. The integrated strainer assembly helps protect internal components from debris, while the back pull-out design allows for maintenance access without disturbing installed plumbing. With 6" suction and 4" discharge connections and compatibility with variable frequency drives, the JCP073ATS is built for scalable, high-performance commercial pool circulation applications.
