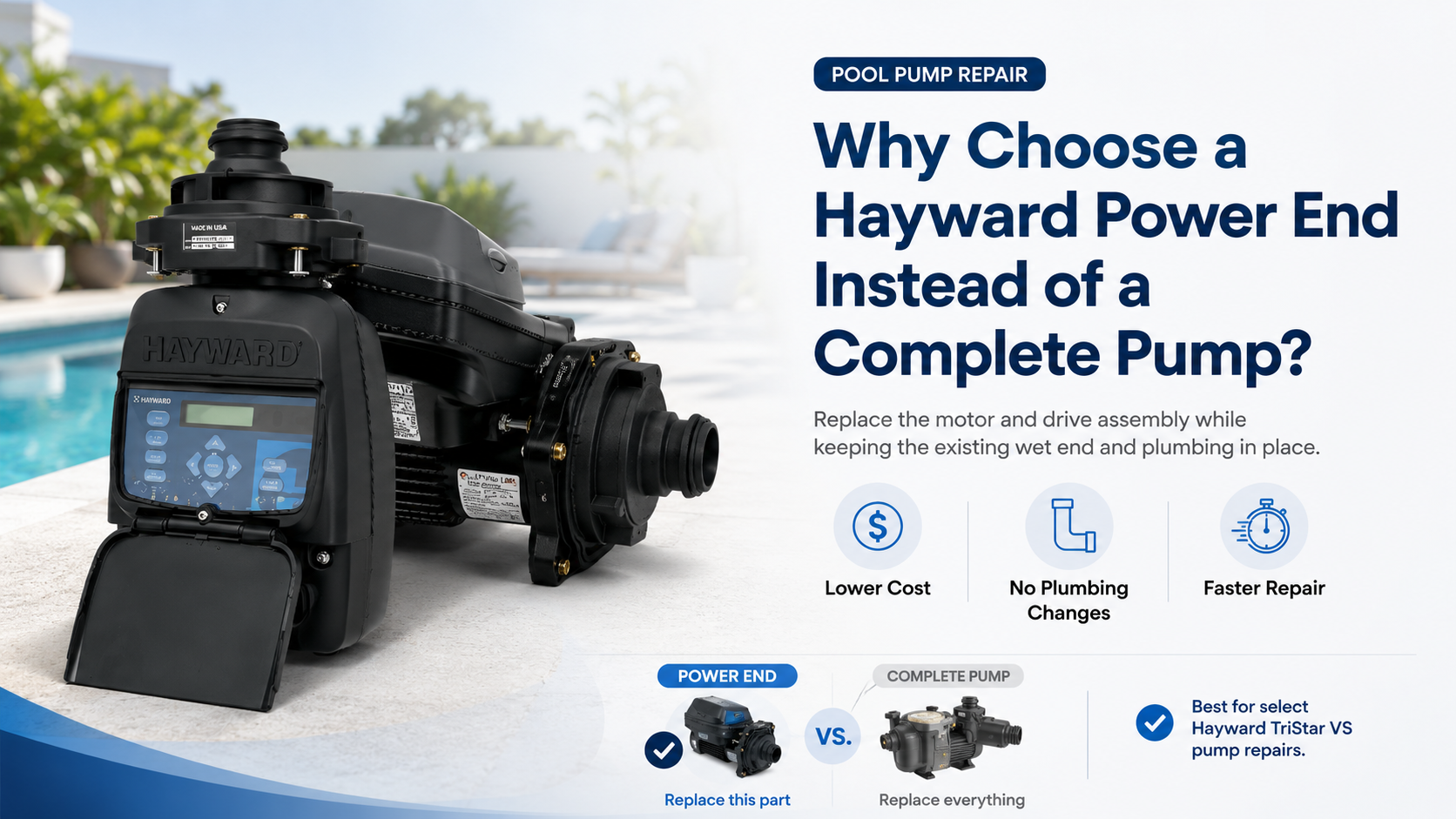

When a pool pump stops working, many pool owners assume the entire pump needs to be replaced. In many cases, that is not true. If the plumbing, pump housing, strainer basket, lid, volute, diffuser, and wet end are still in good condition, you may only need a Hayward power end replacement instead of a complete new pump.
A Hayward power end is the motor and drive side of the pump. It is the part that powers the pump and controls operation, especially on variable-speed models. Replacing only the power end can be a smart repair option when the motor, drive, or electrical side has failed but the hydraulic side of the pump is still usable.
What Is a Hayward Power End?
The power end is the back section of the pump that includes the motor and, on many variable-speed pumps, the drive or control assembly. The wet end is the front section of the pump that moves the water. This usually includes the pump housing, basket area, diffuser, impeller, seals, and plumbing connections.
When you replace a complete pump, you are replacing both the power end and wet end. When you replace only the power end, you keep the existing wet end and plumbing in place.
This can be a major advantage because the plumbing does not usually need to be cut, moved, or reconfigured.
Why Replace the Power End Instead of the Complete Pump?
Replacing only the Hayward power end can make sense for several reasons.
First, it can reduce repair cost. A complete pump includes parts you may not need if your pump housing and wet end are still in good shape. If the issue is limited to the motor or drive, replacing only the power end may solve the problem without paying for a full pump assembly.
Second, it can make the repair easier. Since the existing plumbing connections stay in place, the installer may not need to cut PVC, modify unions, or rebuild the plumbing around the pump. This can save labor time and reduce the chance of plumbing leaks after installation.
Third, it keeps the same pump layout. If your current pump already fits the pad correctly and lines up with the suction and return plumbing, a power end replacement allows you to repair the pump without changing the equipment setup.
When a Hayward Power End Is the Right Choice
A Hayward power end may be the right option if the pump turns on and off randomly, the motor has failed, the drive display is not working, the pump is showing drive-related errors, or the motor is noisy, seized, overheating, or no longer starting properly.
It is also a good option when the wet end is not cracked, leaking, warped, or physically damaged. If the pump basket housing, lid, unions, diffuser, impeller, and seals are still serviceable, the power end may be all that is needed.
This is especially common on variable-speed pumps, where the motor and drive are the most expensive and electronically sensitive parts of the pump.
When You Should Replace the Complete Pump
A power end is not always the best solution. A complete pump may be the better choice if the pump housing is cracked, the wet end is leaking badly, the basket area is damaged, the unions are stripped, the pump has major internal wear, or the existing pump is very old and multiple parts are failing at the same time.
You may also want to replace the full pump if you are upgrading to a different pump size, changing from single-speed to variable-speed, redesigning the plumbing, or replacing a pump that is no longer worth repairing.
If both the power end and wet end are in poor condition, a complete pump is usually the cleaner long-term repair.
Important: Match the Correct Hayward Model
Not every Hayward power end fits every Hayward pump. The correct replacement depends on the exact pump model, horsepower, voltage, and series. Before ordering, always verify the pump model number and part number from the pump label.
For example, a Hayward Super Pump, TriStar, MaxFlo, or XE series pump may use different replacement parts. Ordering the wrong power end can cause fitment issues, wiring issues, or performance problems.
If you are not sure which power end you need, take a clear photo of the pump label and the full pump body before ordering.
What Else Should Be Replaced With a Power End?
When replacing a power end, it is usually recommended to inspect or replace common wear parts at the same time. This may include the shaft seal, housing gasket, diffuser gasket, lid O-ring, and other seal kit components depending on the pump model.
Even if the wet end is being reused, the seal area is opened during the repair. Installing a new seal kit can help reduce the chance of leaks after the new power end is installed.
Final Recommendation
If your Hayward pump has a failed motor or drive but the wet end and plumbing are still in good condition, replacing the power end can be a practical and cost-effective repair. It allows you to restore pump operation without replacing parts that are still working.
However, if the pump housing is cracked, the wet end is leaking, or the pump has multiple worn components, replacing the complete pump may be the better long-term choice.
At AppaeTech Pool Supply, we can help identify the correct Hayward power end or complete pump replacement based on your pump model number, part number, and equipment photos. Getting the right part the first time helps avoid delays, installation issues, and unnecessary replacement costs.
Frequently Asked Questions
What is the difference between a Hayward power end and a complete pump?
A Hayward power end is the motor and drive side of the pump. A complete pump includes both the power end and the wet end, including the pump housing, basket area, and water-moving components.
Do I need to cut the plumbing to replace a power end?
In many cases, no. One of the main benefits of replacing the power end is that the existing wet end and plumbing can usually stay in place.
Is a power end cheaper than a complete pump?
Usually, replacing only the power end can be less expensive than replacing the entire pump, especially when the wet end is still in good condition.
When should I replace the complete pump instead?
You should consider a complete pump if the housing is cracked, the wet end is leaking, the pump is very old, or multiple components are failing.
How do I know which Hayward power end I need?
Check the model number and part number on the pump label. A clear photo of the pump label and the full pump can help confirm the correct replacement.
