What Size Hayward HeatPro Heat Pump Do You Need? (50K vs 90K vs 140K BTU)
Buying a Hayward HeatPro is mostly a sizing question. Get it right and the pump runs less, costs less to operate, and holds your temperature without a fight. Get it wrong and you are either paying for capacity you never use or waiting three days for the water to warm up.
We sell the whole HeatPro line, from the 50,000 BTU W3HP50HA2 up to the 140,000 BTU W3HP21405T. Here is how we help customers pick.
What size heat pump do I need for my pool?
The short answer: bigger pool, bigger BTU. As a working rule, a 140K BTU unit like the W3HP21405T suits most in-ground pools in the 20,000 to 30,000 gallon range, a 90K to 110K unit fits mid-size pools, and the 50K W3HP50HA2 is meant for small pools and spas.
Gallons are only part of it though. Surface area matters more than depth, because that is where heat escapes. A wide, shallow pool loses heat faster than a small deep one holding the same water.
- Spa or small pool (under 10,000 gallons): 50,000 BTU, W3HP50HA2
- Average residential pool (10,000 to 18,000 gallons): 90,000 to 110,000 BTU

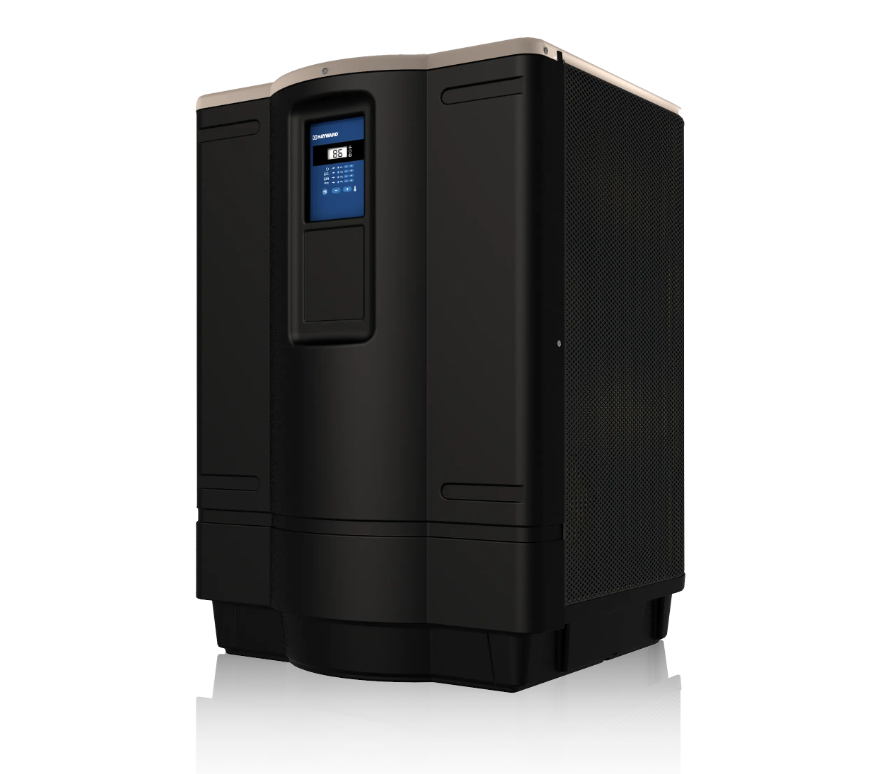

- Large pool, windy or exposed yard, or you want fast recovery: 140,000 BTU, W3HP21405T
If you are between two sizes, go up. An oversized heat pump does not waste energy the way an oversized gas heater can. It just reaches your set temperature sooner and then cycles off.
Why does BTU rating matter so much?
BTU is how much heat the unit can move into your water per hour. A 140,000 BTU HeatPro moves roughly three times the heat of the 50,000 BTU model, so it raises pool temperature about three times faster in the same conditions.
That speed is the real difference for most people. Undersized units are not broken, they are just slow, and on cool nights they can lose ground faster than they gain it. That is the single most common complaint we hear when someone says their heat pump is not working. Nine times out of ten it is a sizing problem, not a failure.
Does a pool cover change the size I need?
Yes, and more than most people expect. A solar cover cuts evaporation loss significantly, and evaporation is where the bulk of your heat goes. With a cover on overnight, a mid-size unit can often keep up with a pool that would otherwise need the 140K W3HP21405T.
No cover, lots of wind, or a pool in open sun with no windbreak? Size up. The W3HP21405T earns its keep in exactly those yards.
How cold does it get where you live?
Heat pumps pull warmth out of the air, so ambient temperature matters. Output drops as the air cools, and below roughly 50 degrees most units slow way down.
If you swim in spring and fall in a cooler climate, a larger unit like the W3HP21405T gives you more usable season. In Florida or south Texas, where nights stay mild, you can size closer to the middle of the range and be fine.
Do you need heat only or heat and cool?
Heat-only models such as the W3HP21405T do one job and cost less. Heat and cool models (the HP31005T, for example) can also drop water temperature on brutal summer days, which matters in hot climates where pools hit 90 degrees and stop feeling refreshing.
Most customers do not need cooling. If your pool is shaded or you are north of the Gulf states, heat only is the practical pick.
What about electrical and installation?
Every HeatPro in this range runs on 230V. Before you order, check three things:
- Your panel has room and capacity for a dedicated breaker at the right amperage for the model
- The pad has clearance around the unit for airflow, since a heat pump needs to breathe
- Your plumbing can be routed after the filter and before any chlorinator or salt cell
Give it space. Boxing a heat pump into a tight equipment enclosure is the fastest way to hurt its efficiency.
Repair or replace an older unit?
If your existing HeatPro is under about eight years old and the failure is a control board, fan motor, or contactor, repair usually makes sense. Those parts are far cheaper than a new unit.
Once the titanium heat exchanger or compressor goes, or the cabinet is rusted through, replacement is the better spend. That is also the moment to correct a sizing mistake and move up to something like the W3HP21405T if the old one never quite kept up.
Still not sure which size fits?
Tell us your pool gallons, whether you use a cover, and the months you want to swim. That is enough for us to point you at the right HeatPro without guessing.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
