Pressure-Side Pool Cleaner Slow or Not Moving? How to Troubleshoot a Hayward W36060 Booster Pump
A pressure-side cleaner that used to zip around the pool and now barely crawls is almost always a water pressure problem, not a cleaner problem. Nine times out of ten the booster pump is where the trouble starts. If you have a Hayward W36060 1 HP booster pump on your pad, here is what to check and in what order.

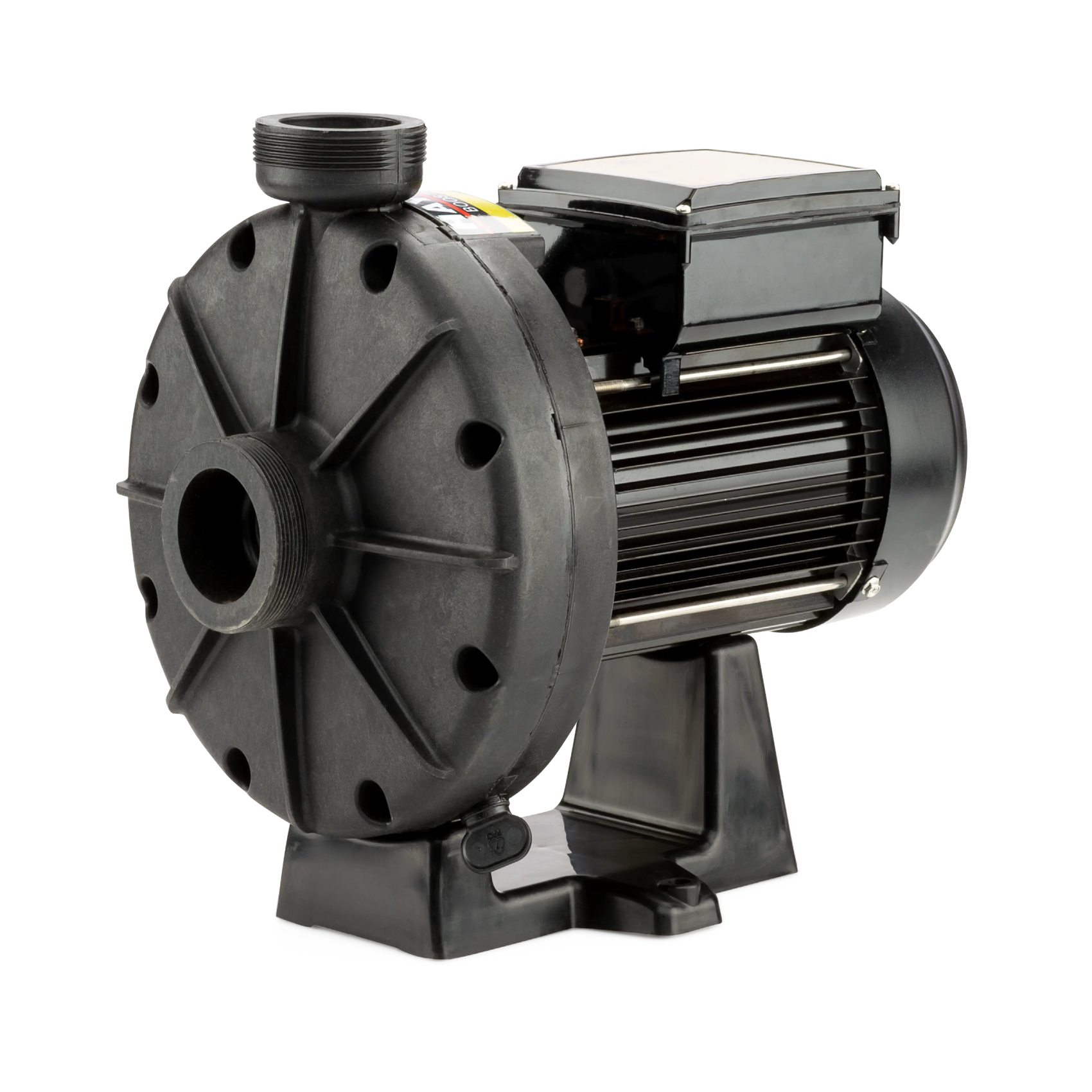

What does the Hayward W36060 booster pump actually do?
It gives your pressure-side cleaner the extra push it needs to drive its wheels and lift debris. Your main filter pump alone does not put out enough pressure at the cleaner line, so the W36060 sits downstream and boosts it.
That also means the booster pump only runs when the cleaner is supposed to run, usually on a timer or an automation relay. It is a dedicated pump with one job, so when it slacks off, the cleaner is the first thing to show it.
Why is my pressure-side cleaner not moving?
If the cleaner sits still or drags, start with these. They cover most of the calls we get.
- The booster pump never turned on (timer, relay, or breaker issue)
- Low water level, so the skimmer is pulling air and starving the whole system
- A dirty filter or a packed pump basket cutting flow to the booster
- A clogged or kinked cleaner hose
- A worn impeller inside the booster pump
- A cracked or leaking hose fitting at the wall
Work from the easy stuff outward. Check water level and clean both baskets before you touch anything electrical. A surprising number of "my booster pump is not working" problems end right there.
How do I know if the W36060 is actually running?
Stand next to it while the cleaner cycle is supposed to be on and listen. A healthy W36060 makes a steady hum and the plumbing downstream feels firm and pressurized.
If it is silent, you have a power problem. Check the breaker, then the timer or automation relay that controls it. If it hums but nothing moves, the motor is getting power but the shaft is not turning freely, which usually points to a seized motor or a jammed impeller.
Why does my booster pump keep tripping the breaker?
A booster pump that trips the breaker is drawing more current than it should. That is a real electrical fault, not something to reset over and over.
Common causes are a failing motor with shorted windings, moisture that got into the motor housing, a bad capacitor, or wiring that has corroded at the connections. Turn the breaker off and look inside the wiring compartment for green or crusty terminals and any sign of water. If you are not comfortable there, get a pool tech or an electrician on it.
My booster pump is loud or screeching. What is that?
Loud grinding or a high pitched squeal almost always means bearings. Bearings wear out over time, especially on a pump that runs dry even briefly.
Running dry is the number one killer of a booster pump. If the filter pump shuts off but the booster keeps running, the W36060 has no water moving through it and the seal cooks in a matter of minutes. Make sure your timer or automation is set so the booster only runs while the main pump is running.
Should you repair or replace a Hayward W36060?
Small stuff is worth fixing. Hose kits, O-rings, the volute, and the impeller assembly are all sold separately and are inexpensive compared to a new pump. If your booster is only a few years old and the motor spins fine, replacing a worn impeller or a leaking O-ring is the smart move.
Replace the whole unit when the motor itself is the problem. A seized motor, a burned smell, repeated breaker trips, or a pump that is close to a decade old is not worth chasing part by part. By the time you buy a motor and a seal kit and pay labor, you are near the cost of a new W36060 with a fresh warranty.
Parts that fail most often on this pump
- Impeller assembly, worn down by grit and sand
- Shaft seal, usually after a dry run
- Booster hose kit, which gets brittle in the sun
- O-rings at the volute, which dry out and leak
- Motor bearings, the loud ones
Keeping the next one alive longer
Give the W36060 clean water and it will last. Empty the pump and skimmer baskets weekly, backwash or clean the filter on schedule, and keep the cleaner hose free of splits so the pump is not fighting a leak.
Set the run time so the booster starts after the filter pump and shuts off before it. Fifteen minutes of overlap on either end is cheap insurance. Do that and a Hayward W36060 will run for years without much attention.
