Pool Pump Loses Prime Every Time It Shuts Off? You Probably Need a Check Valve (Pentair 263042)
Here's a call we get all the time. The pump runs fine all day, but every morning it starts up dry, growls for a minute, and has to pull water all over again. Nothing is clogged. The pump itself checks out. So what gives?
Nine times out of ten, the water is simply draining back toward the pool the moment the pump shuts off. The fix is usually not a new pump. It's a small part called a check valve, and the Pentair 263042 is the one we sell most for this exact problem.
Why does my pump lose prime when it shuts off?
Your pump loses prime because gravity pulls the water in the plumbing back down to the pool once the motor stops. A check valve holds that water in place so the pump stays full and ready.
This happens most often when the pump sits above the water level of the pool. The suction line acts like a straw. While the pump runs, it keeps the straw full. When it stops, the water column falls, air sneaks in, and the pump basket empties out. Next startup, the pump has to re-prime from scratch, and that dry grinding period is hard on the shaft seal.
What does the Pentair 263042 check valve actually do?

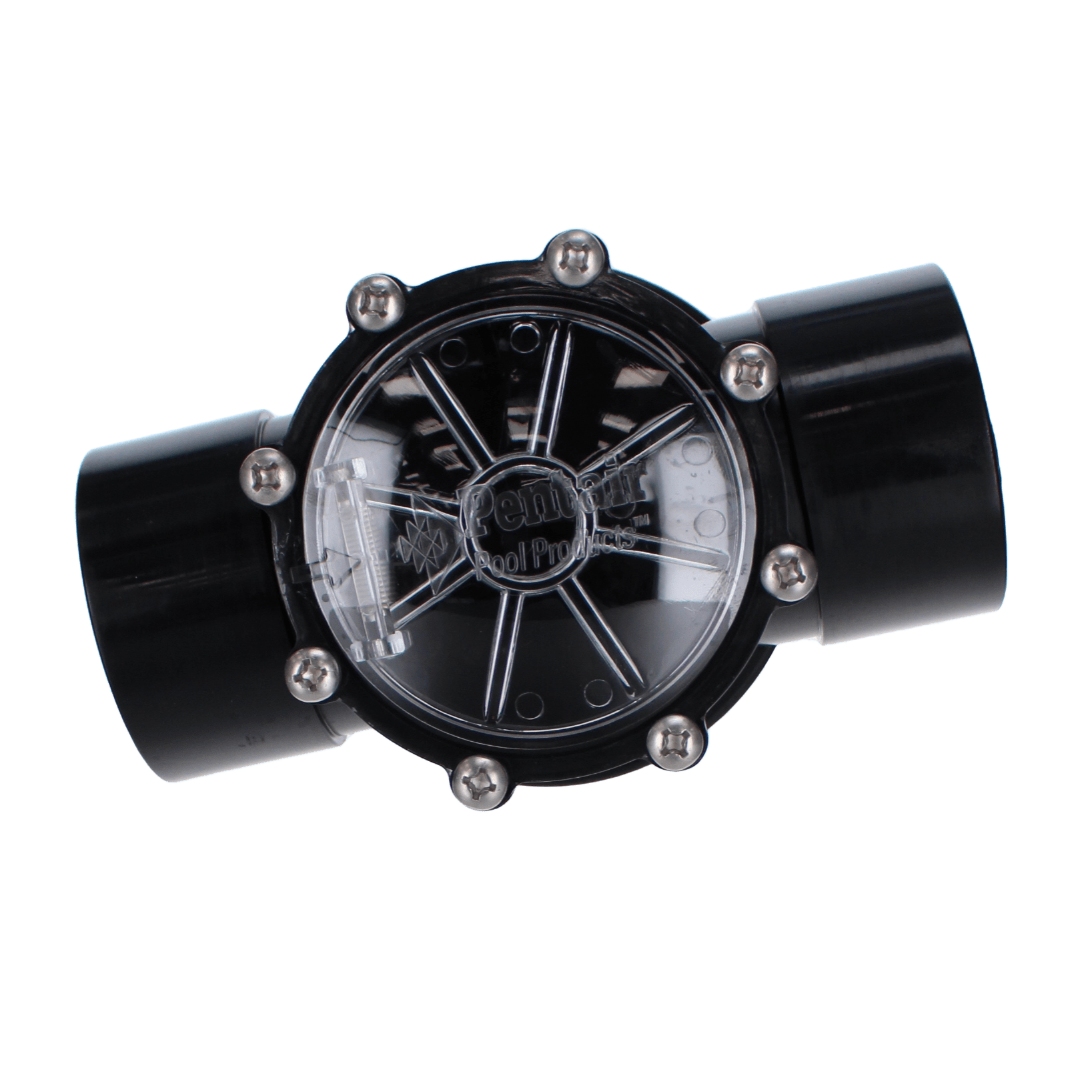

The Pentair 263042 is a 2 inch CPVC check valve that lets water flow in one direction only. Water passes through freely while the pump runs, then the valve closes the instant flow stops, so nothing drains backward.
It's a straight-through Compool style design, which means it glues into a run of pipe without forcing the water around a sharp corner. That keeps flow restriction low, which matters if you're running a variable speed pump at low RPM. Install one on the suction side and the pump holds its prime between runs instead of starting dry every single time.
Other signs you need a check valve (or need to replace one)
Losing prime is the big one, but it's not the only symptom. Watch for these:
- Air bubbles in the pump basket every time the system starts up, even though it ran clear the day before.
- A spa that slowly drains down to pool level overnight. A check valve on the spa return holds the water up where it belongs.
- Chlorine smell or bleached parts near the heater. If you feed chlorine after the heater, a check valve keeps that strong chemical water from sliding back into the heater when the pump is off. Skipping this one gets expensive.
- Water hammer or a clunk in the plumbing at shutoff, which can mean an old check valve flapper is slamming or sticking.
How to tell if your existing check valve is bad
A bad check valve usually fails in one of two ways: it sticks open and stops holding water, or it sticks closed and chokes your flow. Either way, the pump tells on it.
If you already have a check valve and the pump still won't hold prime, debris may be holding the flapper open. Sometimes a pebble or a wad of leaves is all it takes. On older valves, the internal parts just wear out and won't seal anymore. If your valve has a clear lid, look inside while the system is off. If you can see water moving backward through it, it's done. Many older valves are sealed units, so replacement is the practical fix rather than repair.
Installing the Pentair 263042: a few quick notes
Installation is a basic glue-in job on 2 inch pipe. If you're comfortable cutting PVC and using primer and cement, it's a very doable afternoon project.
- Check the flow arrow on the valve body and point it in the direction the water travels. Backwards installation is the number one mistake we see.
- For prime problems, install it on the suction line between the pool and the pump, as close to the pump as is practical.
- For chlorinator protection, it goes between the heater and the chlorine feeder.
- Give the glue joints a full cure before you fire the pump back up.
Not confident with plumbing? Any local pool tech can set one in well under an hour, and the part cost stays the same either way.
Is the Pentair 263042 the right part for your setup?
If you have 2 inch plumbing and a pump that loses prime, drains back, or lets chemical water creep where it shouldn't, the Pentair 263042 covers it. It fits 2 inch pipe directly and 2.5 inch fittings on the outside, so it works in most standard inground pads. It's a cheap part that protects some very expensive equipment, which is about the best trade you can make on a pool pad.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
