Pentair SuperFlo VST Weak Flow or Noisy Pump? Check the Diffuser (355949Z)
A SuperFlo VST that used to push plenty of water and now barely stirs the surface almost always has something wrong inside the wet end. Most people clean the basket, pull the impeller, swap the lid o-ring, and still end up with weak flow. The part that gets skipped is the diffuser, and on the SuperFlo VST that part is the Pentair 355949Z.
What does the diffuser actually do?

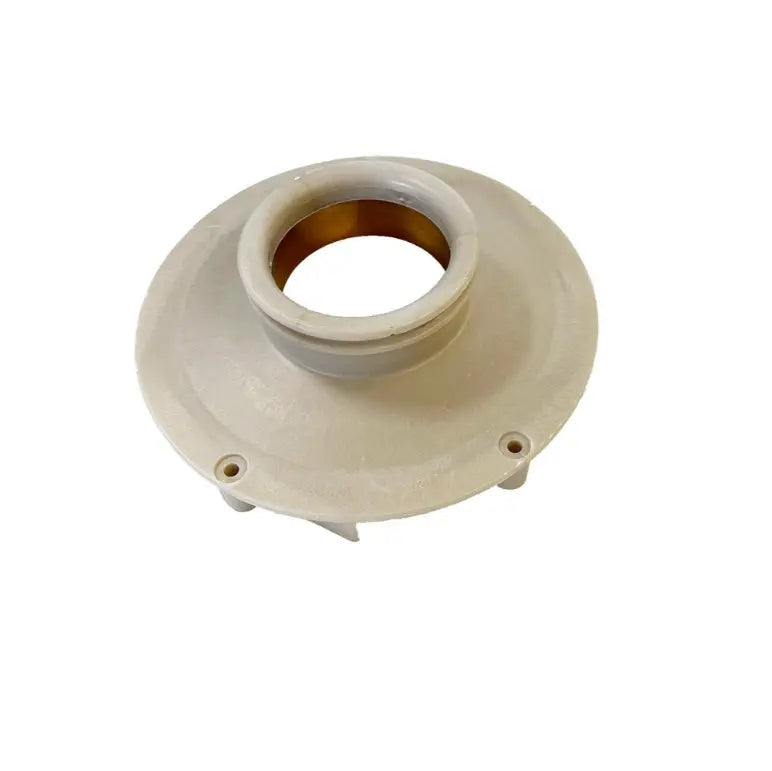

The diffuser is the plastic cone that sits over the impeller and seals against it. It aims the water leaving the impeller into the pump housing so the pump can build pressure instead of churning water in a circle.
It also keeps the impeller centered and separates the suction side from the discharge side. When that seal breaks down, water takes a shortcut back to where it came from. The motor still spins at full RPM, but a chunk of the flow never leaves the pump.
Why is my SuperFlo VST pump not building pressure?
Low flow on a SuperFlo VST comes down to two things: something is blocking the water, or air and water are leaking where they should not. Work through the cheap stuff first.
- Skimmer and pump baskets packed with leaves or a cracked basket letting debris through
- An air leak on the suction side (lid o-ring, union o-rings, a loose drain plug, or a worn valve stem)
- Debris jammed in the impeller vanes
- Water level too low, so the skimmer pulls air
- A cracked, warped, or worn diffuser
If the baskets are clean, the impeller is clear, and you still have weak flow, the diffuser is the next thing to look at.
Signs the 355949Z diffuser needs replacing
A bad diffuser usually shows itself two ways: you can see damage on the part, or the pump makes a noise it did not used to make. Pull the wet end apart and look for these.
- A crack, chip, or broken tab anywhere on the cone
- The diffuser o-ring is flat, hard, cracked, or missing entirely
- Scuff or rub marks on the inside where the impeller has been contacting it
- A warped or slightly melted look, which happens after the pump runs dry
- Rattling, buzzing, or a grinding sound that changes with pump speed
Any of those and the 355949Z is worth replacing while you already have the pump open.
How to replace the diffuser on a SuperFlo VST
This is a straightforward repair. Most people can do it with basic hand tools in under an hour.
- Turn the pump off at the breaker, not just at the keypad
- Close the suction and return valves, then pull both drain plugs to empty the pump
- Remove the bolts holding the motor and seal plate assembly to the pump housing
- Slide the motor assembly back and out. The diffuser comes off the front of the seal plate
- Note how the old diffuser is oriented before you pull it, then lift it off
- Set the new diffuser on with a fresh o-ring, lightly greased with pool lube (never petroleum grease)
- Slide the assembly back into the housing, tighten the bolts evenly in a crossing pattern, reinstall the drain plugs
- Fill the pump pot, open the valves, and prime it
Do not overtighten the bolts. The housing and the diffuser are both plastic and cracking one of them turns a small job into a big one.
Is the 355949Z compatible with your pump?
The 355949Z is the diffuser for Pentair SuperFlo VST pumps and compatible SuperFlo models. Pentair used different diffusers across the SuperFlo line and the older WhisperFlo pumps, so they are not interchangeable.
Easiest way to be sure: pull your old diffuser and look for a molded part number on it. If it does not match, or the number is worn off, send us your pump model number off the motor label and we will confirm the right part before you order.
Should you fix it or buy a new pump?
If the motor and drive are healthy and the only problem is a cracked diffuser, fix it. A diffuser is one of the cheapest wet end parts on the pump and it takes an afternoon at most.
The math changes if the drive is throwing faults, the motor is humming without starting, or the housing itself is cracked. At that point you are stacking several expensive parts and a new pump starts to make more sense. But a SuperFlo VST with a good drive and a bad 355949Z diffuser is worth repairing every time.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
