Pentair SuperFlo VST Error Codes: Full Reference Guide (Model 342002)

An error code on a Pentair SuperFlo VST (model 342002) almost always points to one of four things: power, water flow, heat, or the drive itself. The pump shuts down on purpose to protect the motor, so the code is telling you what tripped it.

We sell and troubleshoot the SuperFlo VST 342002 every week, and most calls come down to the same handful of alerts. This guide walks through the common fault categories, what causes each one, and how to fix them without guessing.

What do the error codes on a SuperFlo VST mean?

The SuperFlo VST 342002 shows alerts on its keypad display when the drive detects a fault. Each alert maps to a category: electrical (voltage or current), thermal (the drive or motor running hot), hydraulic (priming or flow problems), or internal drive faults.

The exact code list is printed in the owner's manual that came with your pump, and Pentair updates it between drive revisions. So rather than memorizing numbers, it helps to know what each category means and what to check first. That's what usually gets the pump running again.

Why does my SuperFlo VST keep tripping?

A pump that keeps tripping and shutting off is usually reacting to unstable power or restricted water flow. Start with the simple stuff before assuming the drive is bad.

• Voltage problems. Loose wire connections, an undersized breaker, or utility voltage sag can all trigger electrical faults. Check that the supply voltage matches the pump's rating and that connections at the terminal block are tight.
• Dirty filter or clogged baskets. Restricted flow makes the pump work harder and can trip protective alerts. Clean the pump basket and skimmer baskets, and backwash or clean the filter.
• Air leaks on the suction side. A bad lid o-ring or loose union lets air in, which causes flow-related faults and priming trouble.
• A failing capacitor or drive component. If the pump trips the moment it tries to ramp up, the drive electronics may be on their way out.

Overheat alerts: is the pump actually too hot?

Thermal alerts mean the drive's internal temperature sensor hit its limit. The fix is usually about airflow and workload, not a broken part.

Make sure the pump has open space around the motor end and isn't boxed in by an enclosure with no ventilation. Direct afternoon sun on a dark equipment pad makes a real difference too. If the pump only faults on hot days at high RPM, try scheduling high-speed runs for early morning. If it overheats even on cool days at low speed, the drive itself may have a failing fan or heat sink issue.

Priming errors: why won't the pump prime?

A priming alert means the pump ran its priming cycle and never detected full water flow. Nine times out of ten this is a suction-side problem, not a pump problem.

• Check the water level in the pool. Low water lets the skimmer pull air.
• Inspect the pump lid o-ring for cracks and lubricate it with pool-safe lube.
• Confirm all suction valves are open and the pump basket is seated correctly.
• Look for drips at the suction union, which signal an air leak.

If the housing is full of water and the pump still won't prime, the impeller may be clogged with debris. Kill power at the breaker before opening anything up.

How to clear an error code on the 342002

Most alerts on the SuperFlo VST clear once you fix the underlying cause and reset the pump. Here's the standard sequence:

• Fix whatever caused the fault first. Clearing a code without fixing the cause just brings it right back.
• Press the reset or stop button on the keypad to acknowledge the alert.
• If the display is frozen or unresponsive, turn off power at the breaker, wait about 60 seconds so the drive fully discharges, then power back on.
• Restart the pump and watch it through a full priming cycle.

When an error code means the drive is failing

If your SuperFlo VST 342002 throws internal drive faults repeatedly after you've ruled out power and flow issues, the drive electronics are likely failing. Common signs include faults that appear at random with no pattern, a dead or garbled display, or the pump refusing to respond to the keypad at all.

At that point you're deciding between a replacement motor and drive assembly or a whole new pump. If your wet end (housing, basket, seals) is in good shape, a drive or motor swap saves money. If the pump is old and the housing is brittle or leaking, a new 342002 is usually the smarter buy since you get a fresh warranty on everything.

Bottom line on SuperFlo VST 342002 error codes

Check power, flow, and heat before you blame the pump. Most error codes on the SuperFlo VST 342002 trace back to a dirty filter, an air leak, or a wiring issue, and those are cheap fixes. Repeated internal faults after all that means the drive is done, and it's time to price out a replacement.

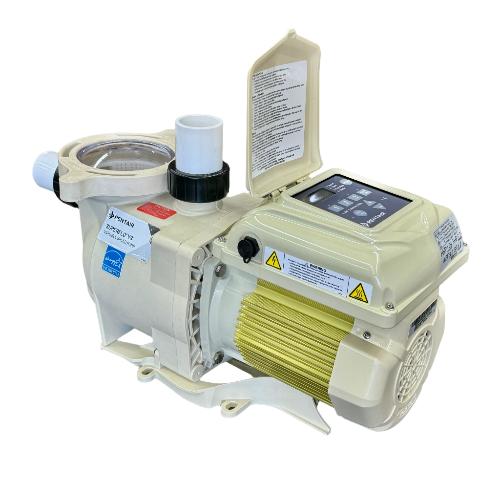

2.2 THP Pentair SuperFlo VST Variable Speed Pool Pump – TradeGrade, Energy Efficient. 342002
