Pentair ScreenLogic Won't Connect? Troubleshooting Guide (Model 523434)

Few things are more annoying than pulling out your phone to heat the spa and seeing the ScreenLogic app spin and fail. When Pentair ScreenLogic won't connect, the cause is almost always one of three things: the adapter lost power, the wireless link between the pad and the house dropped, or something changed on your home network. The good news is you can check all three yourself in about twenty minutes.

This guide walks through it in order, from the quick stuff to the point where the Pentair 523434 wireless connection kit itself needs to be replaced.

Why won't my ScreenLogic connect?

The most common reason ScreenLogic stops connecting is that the Protocol Adapter can't reach your router anymore. That happens after power outages, router swaps, Wi-Fi password changes, and firmware updates on either end.

Before you touch anything else, ask yourself what changed recently. New internet provider? New router? Power blink during a storm? Nine times out of ten, the answer points straight at the problem.

Step 1: Check power at the Protocol Adapter

Start with the simplest fix. Find the ScreenLogic Protocol Adapter (the small box usually mounted near your router or inside the house) and confirm its lights are on.

• If there are no lights at all, check the power supply and the outlet it's plugged into.
• Unplug the adapter, wait 30 seconds, and plug it back in. Give it a full two minutes to boot.
• While you're at it, reboot your router too. A fresh start on both ends clears a lot of connection problems.

If the app connects after this, you're done. If not, keep going.

Step 2: Make sure the app can find the adapter on your network

The ScreenLogic app looks for the Protocol Adapter on your local network first. If your phone is on a different network than the adapter, it won't find it.

• Confirm your phone is on your home Wi-Fi, not cellular data and not a guest network.
• If you recently changed your Wi-Fi name or password, the adapter is likely still trying to join the old network. It needs to be reconfigured with the new credentials.
• Mesh systems and network extenders can also confuse things. If you added one recently, try connecting your phone to the main router's network.

Remote access (connecting when you're away from home) depends on Pentair's servers and your adapter being online. If it works at home but not remotely, the adapter usually needs a reboot or your router is blocking it.

Is the wireless link between the equipment pad and the house down?

If your system uses the Pentair 523434 ScreenLogic High-Power Wireless Connection Kit, there are two transceivers involved: one at the load center by the pool equipment, and one inside near the adapter. If that link drops, the app might open but show no connection to the pool system.

A few things to check on the wireless kit:

• Power at both transceivers. The outdoor unit gets power from the load center, so make sure the breaker is on.
• Distance and obstructions. If someone parked a shed, a metal fence, or a new wall between the two antennas, signal strength suffers.
• Antenna condition. Sun and weather are hard on outdoor gear. A cracked or corroded antenna connection is a common failure point on older kits.

Step 3: Update firmware and the app

Outdated firmware causes plenty of "not working" complaints. Check that your ScreenLogic app is current in the app store, and update the Protocol Adapter firmware through the ScreenLogic Connect utility on a computer. Mismatched versions between the app, the adapter, and the control panel can block the connection even when the hardware is fine.

When is it time to replace the 523434 kit?

If you've confirmed power, rebooted everything, fixed the network side, and the wireless link still keeps dropping, the transceiver hardware is the likely culprit. These kits live outdoors year round, and after enough seasons the radios just wear out.

Signs that point to replacement rather than another reset:

• The connection drops daily or every few hours, no matter what you reboot.
• One transceiver shows no signs of life even with confirmed power.
• The link only works when you move the indoor unit unrealistically close to a window.

The replacement is the same Pentair 523434 ScreenLogic High-Power Wireless Connection Kit, and swapping it is a reasonable DIY job if you're comfortable working around the load center with the breaker off. If you're not, any pool tech can install it quickly.

Quick recap

Work in this order: power cycle the adapter and router, verify your phone and adapter share the same network, check both wireless transceivers, update firmware, and only then look at replacing the 523434 kit. Most ScreenLogic connection problems never get past the first two steps.

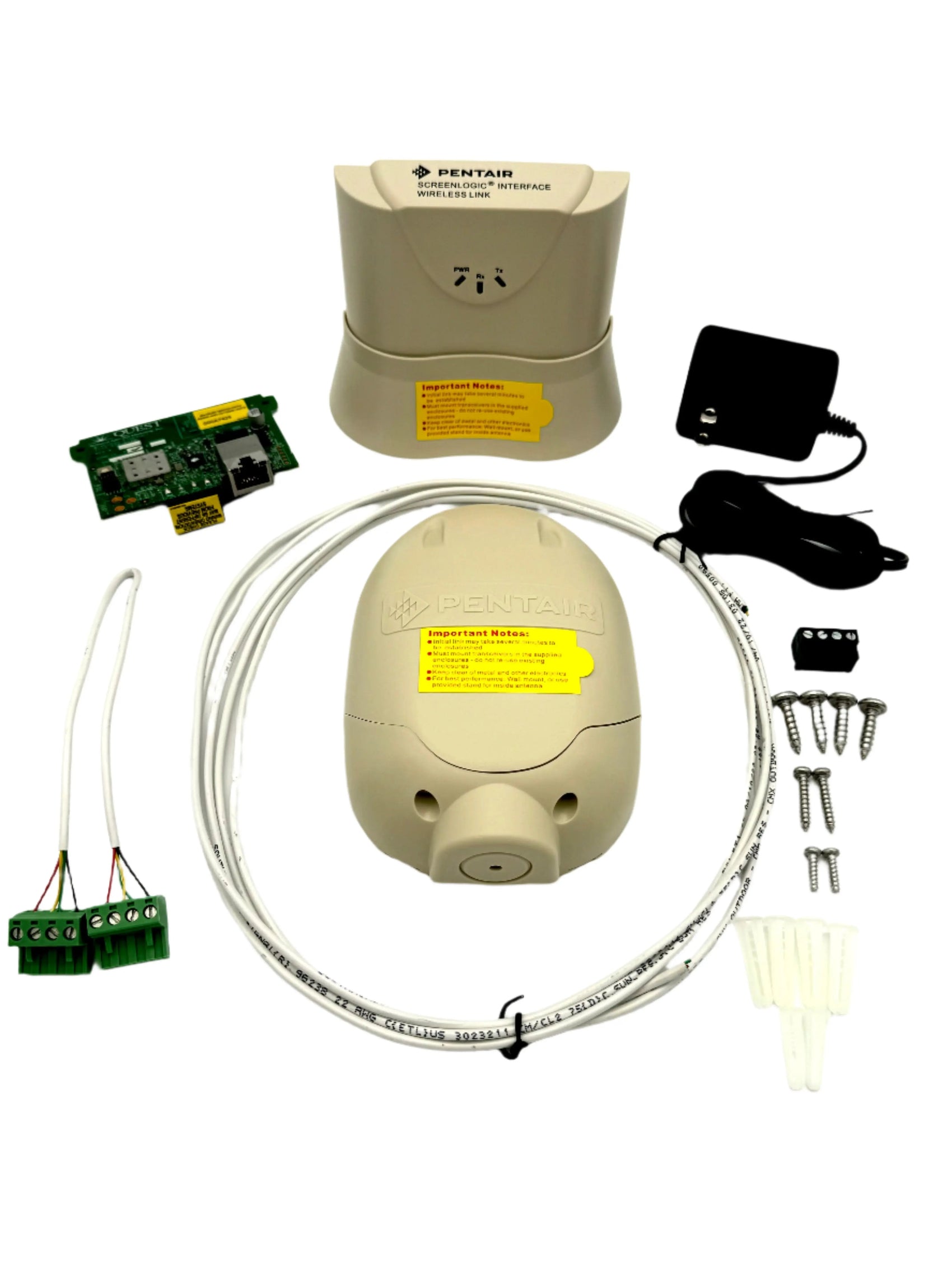

Pentair | 523434 | ScreenLogic High-Power Wireless Connection Kit – Pool Automation Interface
