Pentair MasterTemp Heat Exchanger Replacement or New Heater? How to Decide (77707-0234)
You walk out to the equipment pad and there's a puddle under the heater. The pump is fine, the filter is dry, and the water is coming from inside the MasterTemp cabinet. Nine times out of ten that means the heat exchanger has given up.
The good news is that Pentair sells the 77707-0234 heat exchanger replacement kit, so you don't automatically need a whole new heater. The harder question is whether the repair is worth it on your unit. Here's how we walk customers through it at the counter.
How do I know the heat exchanger is bad?
A bad heat exchanger leaks water inside the heater cabinet, not at the unions or the plumbing. If you dry everything off, run the pump with the heater off, and water still shows up inside the box, the exchanger is the prime suspect.
Things we look for before condemning one:
- Water dripping onto the burner tray or pooling in the bottom of the cabinet
- Rust streaks or white crusty buildup on the tube bundle
- Steam or a hiss when the burner fires, followed by the heater shutting down
- Green or blue staining around the copper tubes, which points to bad water chemistry eating the metal
- The heater runs, then trips out on high limit because water is hitting the flame
Before you order the 77707-0234, rule out the simple stuff. Loose union o-rings, a cracked header, a leaking pressure switch, or a failed manifold gasket can all drip water into the same place. Tighten and inspect those first. A five dollar o-ring is a much better outcome than a heat exchanger job.
Why do MasterTemp heat exchangers fail?
Almost always chemistry. Copper tubes corrode from the inside when pH runs low, when total alkalinity is out of range, or when someone dumps acid or chlorine straight into the skimmer while the pump is running.
Low flow is the other big one. If the pump is undersized, the filter is dirty, or the impeller is clogged, water sits in the tubes too long and cooks. Salt pools are hard on standard copper too, which is why the HD models ship with cupro-nickel instead.

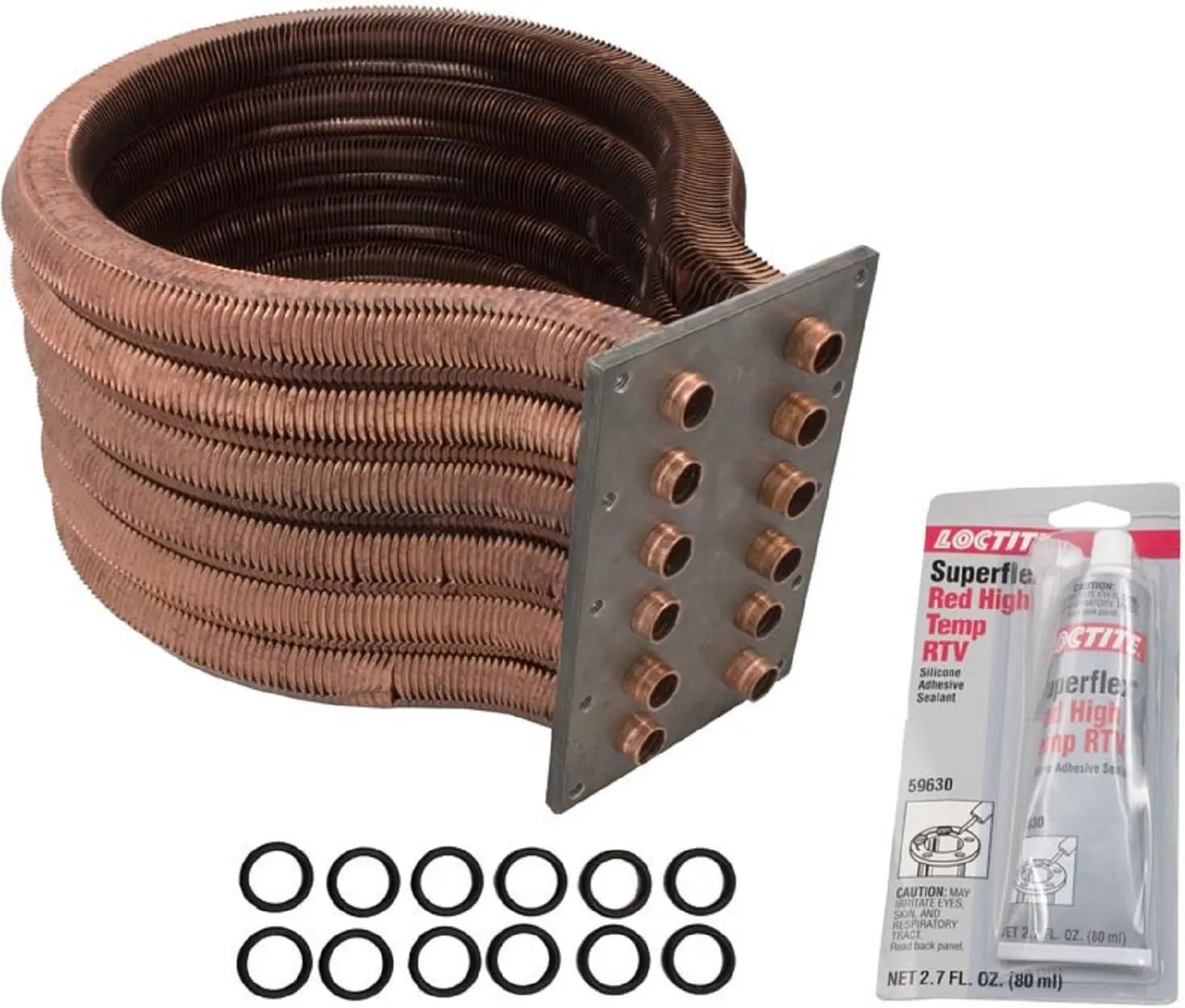

What does the 77707-0234 kit cover?
The Pentair 77707-0234 is the OEM heat exchanger replacement kit for MasterTemp and Sta-Rite Max-E-Therm heaters. It's the tube bundle and hardware, so it puts the water side of the heater back to new without touching the burner, the controls, or the cabinet.
Fitment matters here. MasterTemp heaters come in several BTU sizes and in standard copper and HD cupro-nickel versions, and the exchangers are not interchangeable across all of them. Pull the model number off the rating plate on the side of the heater before you order anything. If you're on a salt pool, this is a good moment to think about whether a cupro-nickel exchanger is the smarter buy for your water.
Should I repair the heater or replace it?
Short version: if the heater is under about eight years old and everything else on it works, replace the exchanger. If it's older than that and other parts are already failing, put the money toward a new heater.
Lean toward the 77707-0234 repair when:
- The heater is fairly young and the cabinet, burner, and controls are in good shape
- You know exactly what killed the exchanger and you've fixed it (chemistry or flow)
- You're doing the labor yourself or you have a plumber you trust
Lean toward a new heater when:
- The unit is a decade old and this is the third or fourth repair
- The gas valve, control board, or burner tray are also on the way out
- The cabinet is rusted through at the base, since a new exchanger in a rotting box is money down the drain
- You want the efficiency or the cupro-nickel build that a newer model gives you
Run the math with real numbers. Add up the parts you'd need, plus labor, and compare it to a new MasterTemp installed. If the repair lands over about half the cost of new, most people are happier buying new.
How to make the new one last
A fresh 77707-0234 exchanger will fail just as fast as the old one if nothing changes. Keep pH between 7.4 and 7.6, hold total alkalinity around 80 to 120 ppm, and never pour chemicals into the skimmer with the pump running.
Clean the filter on schedule so the heater gets full flow. Check the burner area every spring for spiders, nests, and debris that block airflow. And if you have a salt system, plan on cupro-nickel next time around.
Parts that often go with it
While the heater is open, it's worth looking at the manifold and gaskets, the union o-rings, the pressure switch, and the stack flue sensor. Those are cheap compared to the labor of opening the heater a second time. If the burner tray is heavily rusted, price that out too before you commit to the 77707-0234.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
