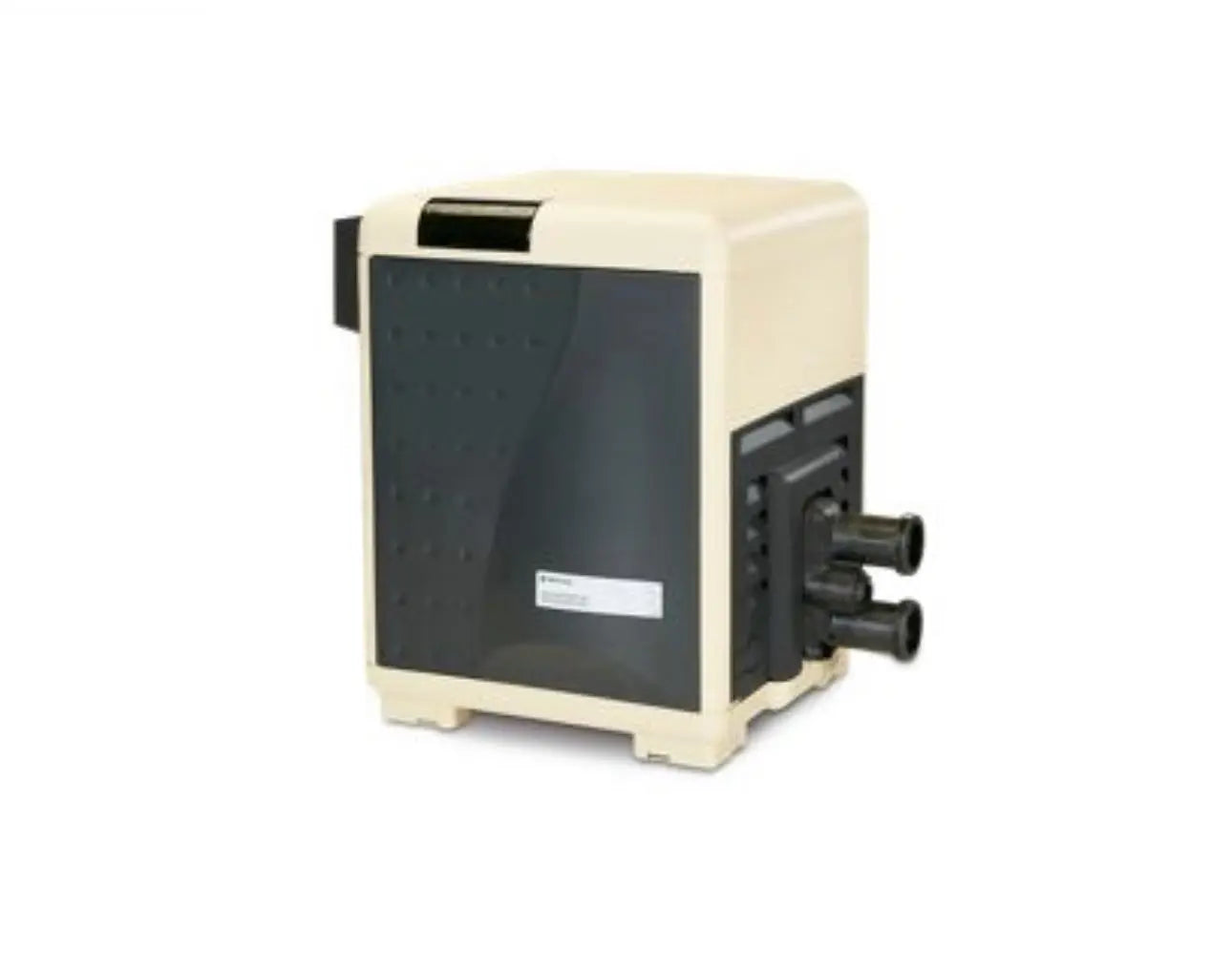

Pentair MasterTemp 300 Won't Ignite? Troubleshooting Steps (Model 460734)
A MasterTemp 300 that clicks, hums, or just sits there doing nothing is one of the calls we get most often once the water cools off. The good news is that when a Pentair MasterTemp 300 (model 460734) won't ignite, the cause is usually one of a handful of things, and you can check most of them yourself in about twenty minutes.
Before you assume the heater is dead, work through the steps below in order. Most no-ignition problems come down to water flow, gas supply, or the ignition parts themselves.
Check the basics before you blame the heater
Start with the simple stuff. A surprising number of "heater not working" calls end with a valve that got bumped or a thermostat set below the water temperature.
- Make sure the heater is switched on at the panel and the desired temperature is set higher than the current water temperature. The heater won't fire if it thinks the pool is already warm enough.
- Confirm the gas supply valve at the heater and at the meter is fully open. A half-open valve can starve the burner.
- Check that the pump is running and the filter isn't clogged. The MasterTemp 300 will refuse to fire if it doesn't sense enough water moving through it. That's a safety feature, not a defect.
- Look at the display. If the model 460734 is showing a service light or a code, write it down before you power cycle anything. Your Pentair manual lists what each code means for your exact unit.
Why is my MasterTemp 300 not igniting?
The short answer: the heater is either not getting enough water flow, not getting enough gas, or the ignition system can't light and prove a flame. Every no-fire situation on the 460734 falls into one of those three buckets.
The heater runs through a startup sequence every time it tries to fire. It checks water pressure, runs the blower, opens the gas valve, and sparks the igniter. If any step in that chain fails, the whole thing shuts down and you get a cold pool. Figuring out which step is failing is the whole troubleshooting game.
Low water flow is the most common culprit
If the heater won't even attempt to fire, poor water flow is the first thing to rule out. The pressure switch inside the heater has to close before anything else happens.
- Clean or backwash your filter. A dirty filter is the number one cause of low flow.
- Empty the pump and skimmer baskets.
- Make sure any valves between the pump and heater are open all the way.
- If you run a variable speed pump, bump the speed up. At very low RPM some pumps don't push enough water to satisfy the heater's pressure switch.
Once flow is restored, the heater will usually fire right up on the next call for heat.
Gas supply problems
If the blower runs and you hear clicking but no flame, gas delivery is the next suspect. The MasterTemp 300 is a 300,000 BTU appliance, and it needs a properly sized gas line at the right pressure to run.
Things worth checking: whether other gas appliances in the house are working, whether the gas was shut off for a recent service visit, and whether the line to the heater was sized correctly in the first place. Undersized gas lines are common on heaters that were swapped in without redoing the plumbing. If you smell gas at any point, stop and call your gas company. Don't keep trying to fire the heater.
Igniter and flame sensing issues
If the heater sparks but the flame won't stay lit, or it lights briefly and drops out, you're likely looking at the ignition and flame sensing side. On a unit like the 460734 this often comes down to a worn igniter, a dirty flame sensor, or corroded connections from living outdoors year round.
Spiders and debris in the burner area can also block ignition, especially after the heater has sat unused over winter. If the unit keeps tripping into lockout after several failed attempts, that's the control system protecting itself. These repairs are affordable compared to a new heater, but they involve gas components, so if you're not comfortable in there, have a pool tech handle it.
Repair or replace the model 460734?
If your heater is under ten years old and the problem traces to a single part, fixing it almost always makes sense. Igniters, sensors, and switches are cheap next to a full replacement.
But if the heat exchanger is leaking, the unit is well past a decade old, or you're fixing something new every season, replacement cost starts to win the math. A new MasterTemp 300 heats fast, runs quieter than older units, and comes with a fresh warranty instead of a growing repair tab. We stock the current Pentair MasterTemp 300 (model 460734) and ship it freight, ready to swap in place of an older MasterTemp with minimal replumbing.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
