Pentair IntelliValve vs. Standard Valve Actuator: Which Should You Buy? (521485 vs 263045)
If your pool has a spa, a water feature, or solar, there's a motorized actuator sitting on top of at least one of your diverter valves. When it wears out, or when you're adding automation, you have two Pentair options: the standard valve actuator (model 263045) or the newer IntelliValve actuator (model 521485). They bolt onto the same valves and do the same basic job, so which one should you buy?
Short version: the 263045 is the proven, lower-cost workhorse. The IntelliValve 521485 costs a bit more and is easier to set up and adjust. Here's how to pick between them.
What does a valve actuator actually do?
A valve actuator is a 24V AC motor that rotates a diverter valve for you, so your automation system can switch water flow between pool and spa (or to a water feature) without anyone touching a valve handle. Both the 263045 and the 521485 mount on standard Pentair 2-port and 3-port valves and rotate them through 180 degrees.
If you have an EasyTouch, IntelliCenter, or IntelliConnect system, actuators are what make "spa mode" work at the push of a button. When one fails, that convenience disappears and you're back to turning valves by hand.
How is the Pentair 263045 different from the IntelliValve 521485?
The biggest difference is how you set the stopping points. On the standard 263045, the end positions are set mechanically with internal cams. It works fine, but dialing in the rotation takes a little trial and error, and you'll be pulling the actuator apart if you ever need to change it.

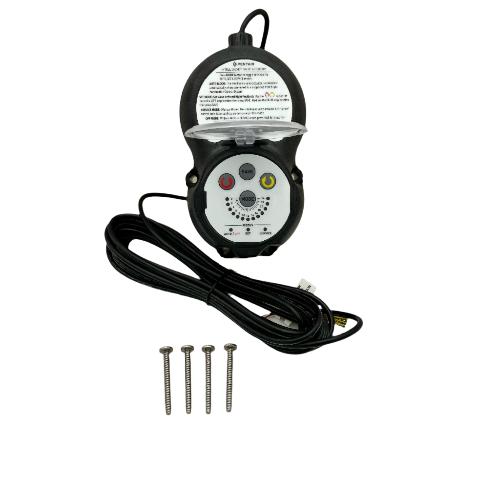

The IntelliValve 521485 replaces that with push-button programming and an LED status light. You set the open and closed positions electronically, right at the unit, and you can see at a glance what the actuator is doing. If a stop point ever needs adjusting, it takes a minute instead of a teardown.
- Setup: cams and trial-and-error on the 263045, button programming on the 521485
- Status: no feedback on the 263045, LED indicator on the 521485
- Adjustment later: partial disassembly vs. reprogramming in place
- Price: the 263045 runs about $40 less
Is the IntelliValve 521485 compatible with my automation system?
Yes. The IntelliValve wires up the same way as a standard actuator, so it works as a direct replacement on Pentair automation systems like EasyTouch, IntelliCenter, and IntelliConnect. Same three-wire 24V AC connection, same mounting pattern on the valve. You don't need to change anything else in your system to use one.
The same goes in reverse. If you have IntelliValves on some valves and a standard 263045 on another, they'll coexist just fine on the same automation panel.
Which one should you actually buy?
Buy the standard 263045 if you just need a straight swap and want to spend less. It's the same style of actuator that's been running on Pentair and Compool valves for decades, and there's nothing wrong with it. Set the cams once and it'll click back and forth for years.
Buy the IntelliValve 521485 if you're doing a new automation install, if you've fought with cam adjustment before, or if your valve needs a stop position that isn't a simple 180 degree swing. The programmable stops are the real selling point. Plumbing is never perfectly textbook, and being able to fine-tune where the valve lands without opening the actuator up saves real frustration.
Signs your old actuator needs replacing
Before you buy either one, make sure the actuator is actually the problem. Common symptoms of a failing actuator include:
- The valve doesn't move at all when you switch modes (and the toggle switch on the actuator does nothing either)
- The motor hums or grinds but the valve doesn't rotate, which usually means stripped gears
- The valve stops in the wrong position or overshoots
- It works sometimes and not others, often a sign of a worn internal switch
Also check the simple stuff first: the actuator fuse in your automation panel, loose wiring at the terminal, and whether the valve itself turns freely by hand. A stiff, scaled-up valve can kill a brand new actuator, so fix that before installing a 521485 or 263045.
Bottom line on the 521485 vs the 263045
Both are genuine Pentair parts that fit the same valves and the same automation systems. The 263045 is the budget-friendly standard. The IntelliValve 521485 is the easier one to live with, especially on new installs. For most people replacing a single dead actuator, either works. For anyone setting up several valves at once, the IntelliValve pays for itself in setup time alone.
