Pentair IntelliPH Not Dispensing Acid? Troubleshooting Guide (Model 521377)

You test your water and the pH is 8.0 again. The acid tank on your Pentair IntelliPH 521377 is still full, so clearly nothing is being fed into the pool. This is one of the calls we get most often about the IntelliPH, and the good news is the fix is usually cheap. Most of the time it comes down to a clogged fitting, a tired peristaltic tube, or a settings issue, not a dead unit.

What does the Pentair IntelliPH 521377 actually do?

The IntelliPH is an automatic acid feeder. It holds muriatic acid in a 4 gallon reservoir and dispenses small doses into your plumbing to keep pH in range. That matters on salt pools especially, because salt chlorine generators push pH up over time.

The 521377 connects to an IntelliChlor power center and only feeds acid when the pump is running and the salt cell confirms water flow. That safety logic is also the first place to look when it stops feeding.

Why is my IntelliPH not dispensing acid?

The most common reasons an IntelliPH 521377 stops dispensing are a clogged injection point, a worn or flattened pump tube, no flow signal from the salt cell, or a dispense rate set too low. Here is the full list, roughly in order of how often we see each one:

• Clogged injection fitting. Acid plus hard water leaves scale behind. The little injection point where acid enters the plumbing can crust over completely.
• Worn peristaltic tube. The pump works by squeezing a flexible tube. That tube hardens and flattens with age, and once it loses its shape it can't move acid anymore.
• No flow signal. The IntelliPH won't feed unless it sees flow through the IntelliChlor cell. A dirty cell, a bad flow switch, or a pump running too slow can all block feeding.
• Dispense setting too low. If the feed rate is set near zero, the unit is working fine but barely doing anything.
• Air lock or suction leak. A loose fitting on the suction side lets the tube pull air instead of acid.
• Empty or crystallized pickup line. Acid left sitting through winter can leave deposits inside the pickup tube in the tank.

How to fix an IntelliPH that won't feed acid

Start at the injection point and work backward toward the tank. Wear gloves and eye protection any time you open acid lines.

• Step 1: Check the dispense setting. Make sure the feed rate isn't set at or near its minimum. Bump it up and watch for the pump to run.
• Step 2: Confirm the salt cell shows flow. If your IntelliChlor shows a flow problem, fix that first. No flow signal means no acid, period.
• Step 3: Inspect the injection fitting. Shut the system down, remove the fitting, and soak it in fresh water to dissolve scale. A soft brush helps. Do not force a metal pick through it.
• Step 4: Check the peristaltic tube. Open the pump head and look at the tube. If it's flattened, stiff, discolored, or cracked, replace it. This is a normal wear item, similar to the pump tubes on an IntelliChem.
• Step 5: Check for suction leaks. Snug up the fittings between the tank and the pump head. Even a small air leak stops the feed.
• Step 6: Prime and test. Run a manual feed and watch the line. You should see acid moving within a minute or so.

IntelliPH has no lights or won't power on

If the unit is completely dead, check where it gets power. The IntelliPH 521377 draws power through its connection to the IntelliChlor power center, so a tripped breaker or a bad power center takes the IntelliPH down with it. Verify the power center is on and the salt cell is behaving normally before you blame the IntelliPH itself.

Also check the cable connection between the two units. A corroded or loose plug is easy to miss and easy to fix.

Should you repair your IntelliPH or replace it?

If the problem is a tube, a fitting, or a clog, repair it. Those parts cost very little compared to a new controller. Replacement makes more sense when the control board fails, the pump motor dies, or the housing is cracked from sun and acid exposure after many seasons.

One more thing worth saying. If you've been dosing acid by hand every week, the IntelliPH 521377 pays for itself in consistency. Steady pH protects your heater, your salt cell, and your plaster, and it keeps chlorine working the way it should.

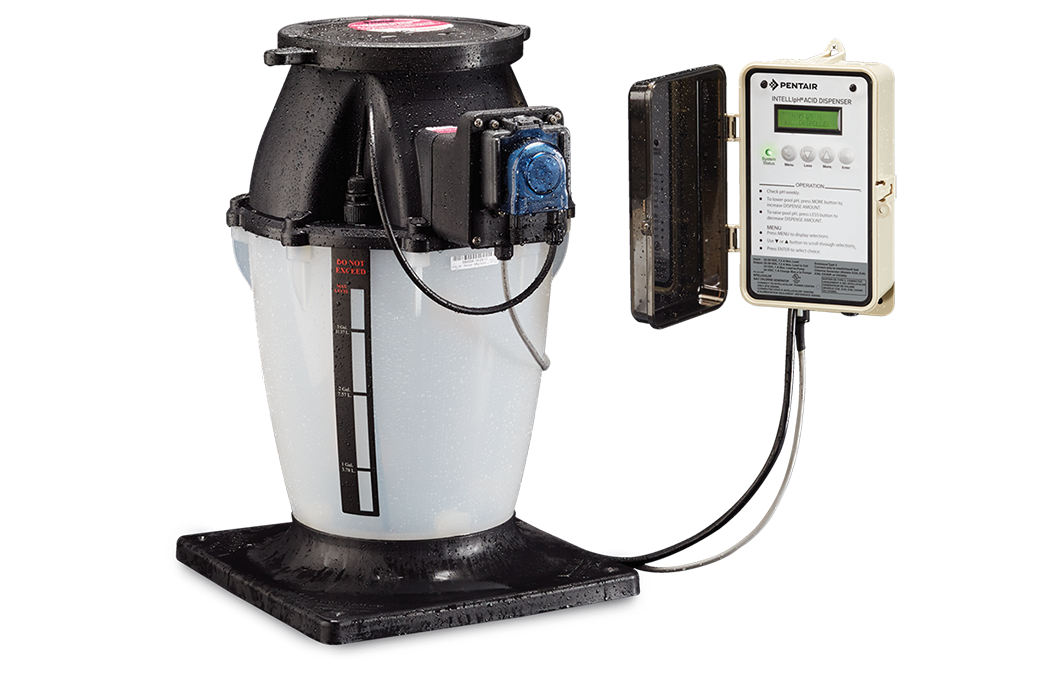

Pentair | 521377 | IntelliPH Controller - 1/4 inch SDS Mount, 4 Gallon Acid Reservoir
