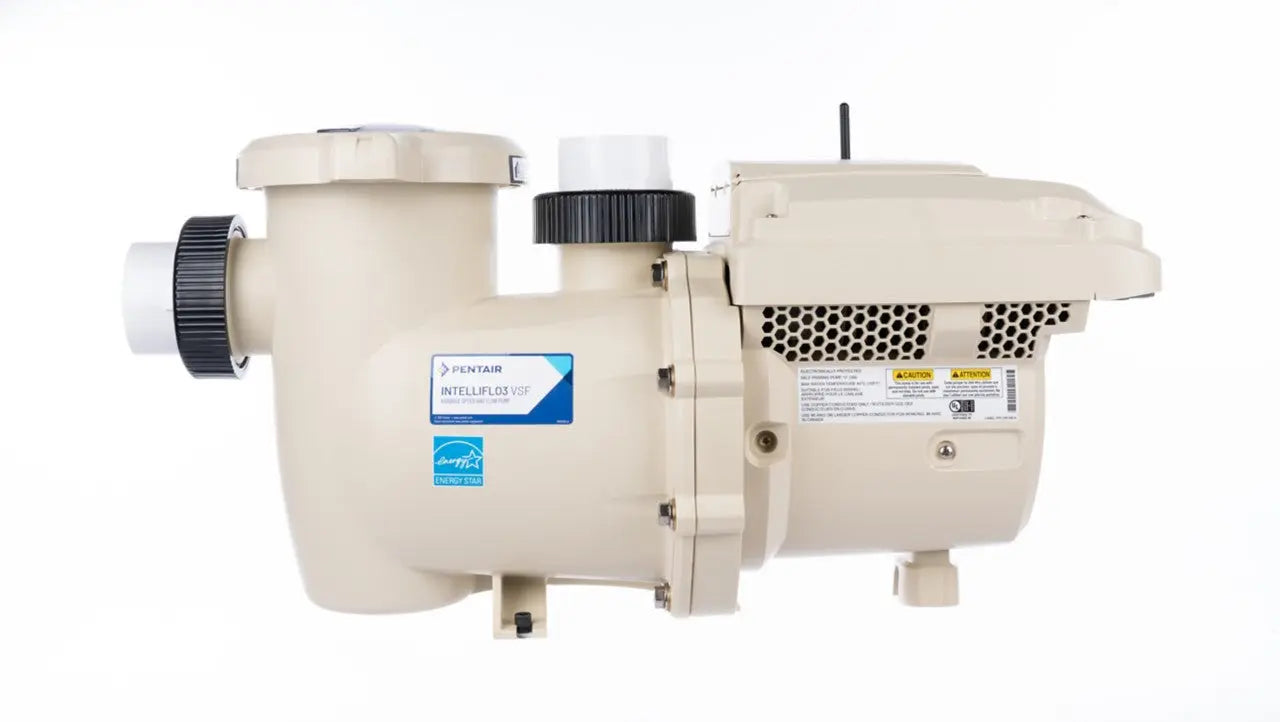

Pentair IntelliFlo3 VSF Error Codes Explained (and How to Fix Each One)
If your Pentair IntelliFlo3 VSF pump is flashing an error code, don't panic. Most of the time it's something simple you can check yourself before spending money on a repair. Here's what each common IntelliFlo3 error means and what to do about it.
Why won't my IntelliFlo3 prime?
A priming failure means the pump ran its cycle but never pulled water in. Before you assume the pump is broken, check these things first:
- Is the water level high enough to cover the skimmer?
- Is the pump lid O-ring seated right and lightly greased?
- Are all the suction valves fully open?
- Any air leaking in at the unions or the strainer basket lid?
If you've checked all of that and it still won't prime, the shaft seal is probably worn out and letting air into the pump. That's normal after 3 to 5 years of use, and it's a cheap part to replace.
What does an Over Current error mean?
An Over Current alarm means the motor is pulling more power than it should. This is almost always a mechanical problem, not an electrical one. Usually it's a clogged or jammed impeller, worn bearings, or low voltage coming from your panel. Pull the pump basket and check the impeller for debris or cracks before you replace anything electrical.
Why does my pump keep overheating?
The IntelliFlo3 has thermal protection built into both the drive and the motor. It'll trip an overheat error if it gets too hot, which can happen from direct sun on the drive unit, blocked cooling vents, a seized motor shaft, or a winding fault. Make sure the pump has at least 12 inches of open space around it and isn't sitting in a hot, closed off spot.
What causes a communication error (0002)?
Error 0002 usually means the drive and the control board aren't talking to each other, or the keypad ribbon cable came loose. Try cutting power at the breaker for a full minute and turning it back on. If the error comes right back, the drive board itself probably needs to be replaced instead of the whole pump.
Why is my pump showing low flow or no flow?
Since the IntelliFlo3 watches your flow rate constantly, a dirty filter, closed valve, or narrow plumbing can trigger a flow error even when the pump is working fine. Check your cartridge or DE filter first. That's the cause more often than not.
Should you repair it or replace the whole pump?
Most IntelliFlo3 problems get fixed with basic maintenance like new O-rings, clearing the impeller, or giving it more airflow. You don't need a new pump for most of these. If the problem really is the drive electronics, a drive and keypad replacement kit almost always costs less than a full pump, since the housing, impeller, and seal plate usually outlast several drives.
