Pentair IntelliFlo i1 Pump: Common Problems & Fixes (Model 011059)
If your Pentair IntelliFlo i1 pump is acting up, you're not alone. The 011059 is one of the most common variable speed pumps we sell, and most of the problems people call us about come down to a short list of usual suspects. Here's how to figure out what's actually wrong with your IntelliFlo i1 before you spend money on parts you don't need.
Why won't my IntelliFlo i1 pump turn on?
Most of the time it's power getting cut off somewhere between the breaker and the pump, not the pump itself. Before you assume the 011059 is dead, check the simple stuff first.
- A tripped breaker or a GFCI outlet that needs a reset
- Loose wiring at the connection box on the back of the drive
- A blown capacitor or fuse inside the control panel
- Moisture that got into the electrical connections after a storm
If the display on your IntelliFlo i1 is completely dark and nothing lights up when you hit the power button, start with the breaker panel. If it powers on but won't spin, that points toward the drive or the motor itself.
Why is my Pentair 011059 not priming?
A pump that won't prime almost always has an air leak somewhere between the pool and the pump basket, or the impeller is clogged. Priming problems are the number one reason people search for IntelliFlo i1 troubleshooting help.
Check the pump basket lid first. The o-ring there dries out and cracks over time, and that lets air into the system instead of water. Also look at the skimmer and pump baskets for leaves or debris blocking flow, and make sure the water level in your pool is high enough to keep the skimmer from sucking air.
Common causes behind IntelliFlo i1 problems
Beyond power and priming issues, a few other things show up again and again on the 011059:
- Worn shaft seals that let water drip into the motor housing
- A failing drive board, which usually shows up as the pump cutting out mid-cycle
- Bearings that have worn down, causing a loud grinding or squealing noise
- Debris caught in the impeller, which makes the motor hum but not actually pump water
How do you troubleshoot a Pentair IntelliFlo i1 that's not working right?
Work through it in order rather than guessing. Start with power, move to priming, then check for noise or leaks, and only after that consider the drive or motor as the culprit.
- Confirm the pump is getting steady power at the breaker and the connection box
- Check for air leaks at the lid o-ring, unions, and any fittings near the pump
- Listen for unusual noise. Grinding usually means bearings, humming with no water flow usually means a clogged impeller
- Look underneath the pump for drips, which point to a worn shaft seal
- If the pump powers on but the display shows an error or the motor won't ramp up to speed, the drive itself may need replacing
Repair or replace: what makes sense for the 011059?
If the fix is a seal, an o-ring, or a basket lid, repair it. Those parts are cheap and the labor is simple. If you're looking at a full drive replacement or a motor that's more than eight or nine years old, it's worth comparing that repair cost against a full pump.
The IntelliFlo i1 was built to run efficiently for a long time, so a full replacement usually only makes sense once you're stacking up multiple repairs in the same year. One good part swap is almost always the better deal.
Keep your IntelliFlo i1 running
Most problems with the Pentair 011059 trace back to something simple: a tripped breaker, an air leak, or a worn seal. Catching it early with basic troubleshooting saves you a service call and gets your IntelliFlo i1 pump back to normal fast. If you've gone through the steps above and you're still stuck, we carry the genuine Pentair 011059 pump and can help you figure out exactly what part you need.

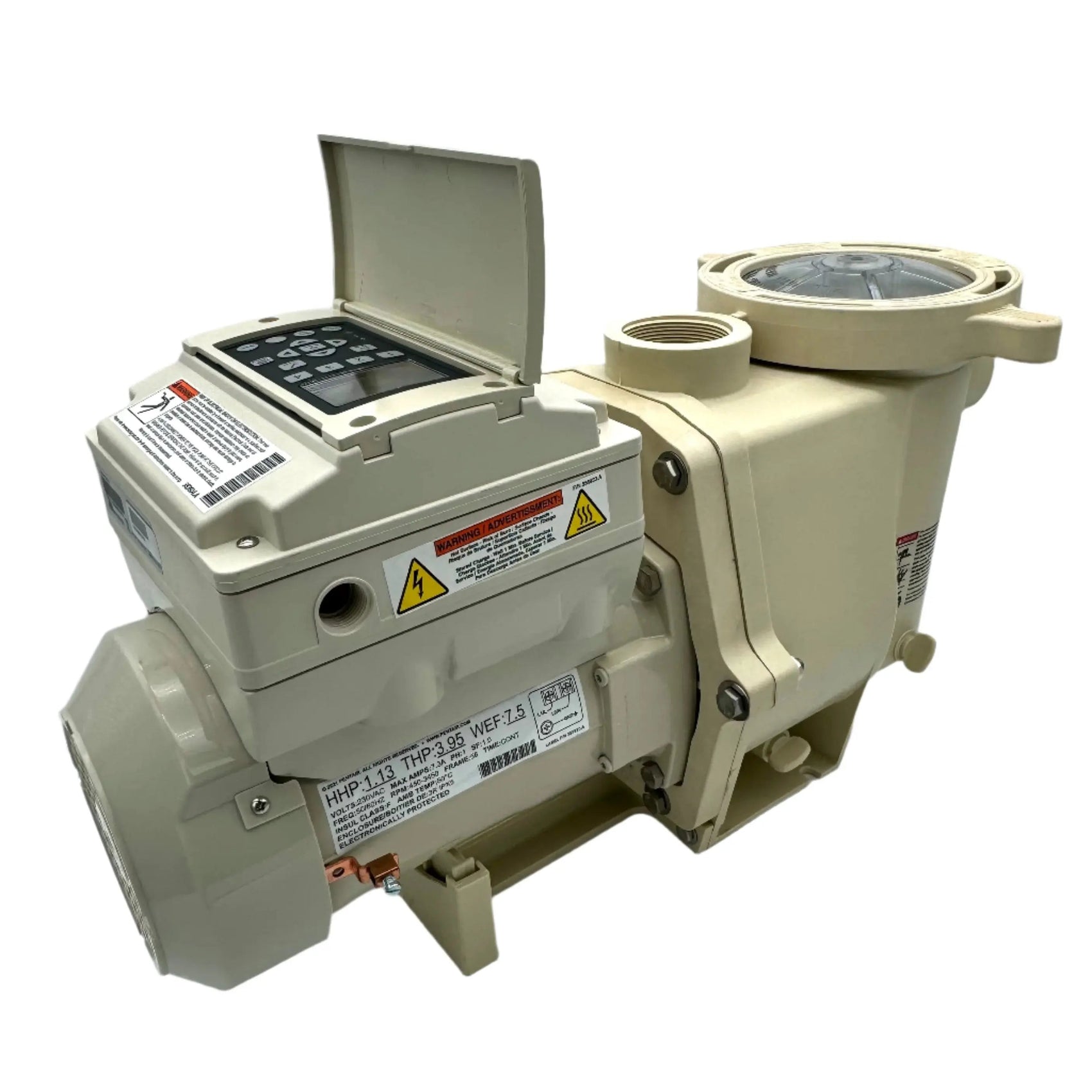

Pentair | 011059 | IntelliFlo i1 1HP Variable Speed Pool Pump 230V Automation Ready
