Pentair IntelliFlo Humming or Tripping the Breaker? It Might Be the Motor, Not the Drive (350305S)

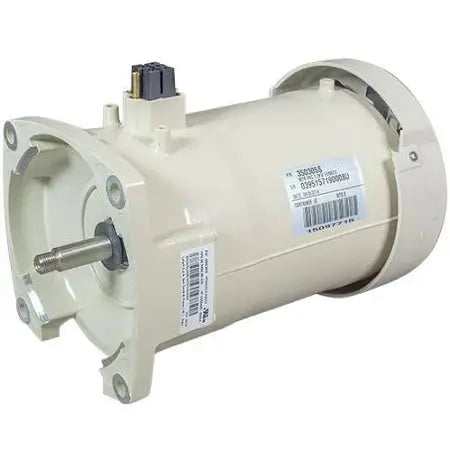

When an IntelliFlo stops running, most people assume the drive died. That is the computer on top of the pump, and yes, drives fail. But we talk to plenty of pool owners who spent good money on a new drive and still had a pump that would not spin. The real problem was underneath the whole time: the motor. For IntelliFlo VSF pumps, that part is the Pentair 350305S, a 3.2KW 10-pole replacement motor.
Before you buy anything, it pays to spend ten minutes figuring out which half of the pump is actually broken. Here is how to do that.
Is it the drive or the motor? The quick answer
A bad drive usually shows up as an electronics problem: blank display, an error code, buttons that do nothing. A bad motor usually shows up as a mechanical or electrical problem: humming, grinding, a breaker that keeps tripping, or a shaft that will not turn.
That one distinction sorts out most cases. The drive is the brain. The motor is the muscle. If the brain seems awake but the muscle will not move, look at the motor first.
Signs your IntelliFlo motor is bad
If the display lights up normally but the pump will not run right, these symptoms point at the motor:
- The pump hums or buzzes but the shaft never spins up.
- The breaker keeps tripping shortly after the pump tries to start. A shorted motor winding pulls way too much current, and the breaker does its job.
- Grinding, screeching, or a rough rumble while running. That is usually bearings on their way out.
- A burnt smell near the motor body, or visible rust and water staining around the seal area.
- With the power off, the shaft feels stiff or seized when you try to turn it by hand.
Signs it is actually the drive
If the problem lives on the screen rather than in the sound of the pump, suspect the drive. A dead or scrambled display, error codes that will not clear, a keypad that does not respond, or a pump that runs fine until the drive heats up and then quits are all classic drive failures. We covered drive replacement options and pricing in a separate post, so if that sounds like your pump, start there instead.
How to check the motor before you order a 350305S
You can confirm most motor failures without any special tools. It takes a few minutes.
- Shut off power to the pump at the breaker. Not just the keypad, the breaker.
- Take off the back cover or reach the shaft end and try to rotate it by hand. It should turn smoothly with light resistance. Stiff, gritty, or frozen means bad bearings or a seized motor.
- Look for rust trails or calcium buildup where the motor meets the wet end. That means the shaft seal leaked and water got into the motor. Once that happens, the motor is done.
- Sniff around the motor housing. A sharp burnt smell means cooked windings.
- If the shaft spins free, there is no water damage, and the drive still throws errors or the pump still trips the breaker, have a tech meter the windings before you spend anything.
Pentair 350305S replacement cost, and when a new pump makes more sense
The 350305S motor runs $796.95, and a straightforward swap keeps your existing drive, wet end, and plumbing exactly where they are. If the rest of your IntelliFlo is in decent shape, replacing just the motor saves you real money over a whole new pump, which can run well past two thousand dollars installed.
The math changes if the pump is old and tired. If the drive is also flaky, the housing is sun-baked and brittle, or you have already replaced other major parts, putting $800 into a motor can be throwing good money after bad. Rough rule: one failed part on an otherwise healthy pump, fix it. Two or more big parts failing on a pump past its prime, price out a new one before you commit.
The bottom line
Humming, tripping breakers, grinding, and seized shafts point to the motor. Blank screens and error codes point to the drive. If your diagnosis lands on the motor and you have an IntelliFlo VSF, the Pentair 350305S is the genuine replacement, and we keep it in stock.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
