Pentair iChlor Not Producing Chlorine? Here's Why (Models 523080, 523081, 523009)

We get this call a lot in the middle of summer. The pool starts looking cloudy, the test strip shows zero chlorine, and the Pentair iChlor on the wall looks like it's running fine. If your iChlor 523080, 523081, or 523009 cell has stopped producing chlorine, there are really only a handful of causes. Most of them cost nothing to fix.

Work through these checks in order. They go from cheapest to most expensive on purpose.

Why is my Pentair iChlor not producing chlorine?

Nine times out of ten it's one of four things: the salt level is too low, the cell plates are coated in scale, water isn't flowing through the cell, or the cell itself has worn out. The unit can look powered on and still produce nothing if any of these conditions trip its safety shutoffs.

The good news is the iChlor tells you a lot through its indicator lights. Before you touch anything, look at the front of the unit and note which lights are on or blinking. Your owner's manual maps each light to a specific condition, and that alone can save you an hour of guessing.

Check your salt level first

Low salt is the single most common reason an iChlor stops making chlorine. The system needs the water's salt concentration inside its operating range, and if it drops too low the unit cuts output to protect the cell.

Don't trust the unit's own salt reading by itself. A dirty or aging cell can report salt levels that are off by a lot. Take a water sample to a pool store or use fresh test strips to get an independent number. If salt really is low, add pool-grade salt per the label, let it circulate for 24 hours, then recheck.

If your water tests fine but the iChlor says the salt is low, that's a clue the cell is dirty or nearing the end of its life. Keep reading.

Is the cell dirty? Here's how to check

A scaled-up cell can't produce chlorine at full output. Calcium builds up on the plates over time, especially in hard water areas, and the buildup blocks the reaction that makes chlorine.

Shut off the pump, close your valves, and remove the cell so you can look through it. Clean plates look dark and uniform. Scale looks like white, flaky, crusty deposits between the plates.

• Try rinsing the cell with a garden hose first. Sometimes that's enough.
• If scale remains, soak the cell in a diluted acid solution made for salt cells, following the product directions closely.
• Never scrape the plates with metal tools. Scratching the coating shortens the cell's life fast.

If you're cleaning your cell more than a couple times a season, get your calcium hardness and pH checked. Water that's out of balance will keep scaling the cell no matter how often you clean it.

No flow, no chlorine

The iChlor has a flow sensor, and it will not produce chlorine unless it detects proper water movement. This is a safety feature, not a defect. Without flow, chlorine gas could build up inside the plumbing.

So if the unit reports a flow problem, check the basics: a clogged pump basket, a dirty filter, a skimmer full of leaves, or a variable speed pump running too slow can all drop flow below the threshold. If flow is clearly good and the unit still won't recognize it, the flow-temperature switch itself may have failed. It's a replaceable part (Pentair 523100) and swapping it is a lot cheaper than replacing the whole system.

Cold water cuts output too

Salt systems produce less chlorine in cold water, and below a certain temperature the iChlor reduces or stops production on its own. If your chlorine dropped off in early spring or late fall and the water is cold, the unit may be doing exactly what it's designed to do. Supplement with liquid chlorine until the water warms up.

How long does an iChlor cell last?

Most salt cells last somewhere in the range of three to seven years, depending on how many hours they run and how well the water chemistry was kept in balance. If your cell is in that age range, the salt reading is drifting, and cleaning no longer brings output back, the cell is most likely just used up.

At that point you don't need to replace the whole system. The power center on your 523080 or 523081 setup usually outlives the cell, so a replacement cell like the iChlor 30 (part 523009) restores full chlorine production for a fraction of the cost of a new system. It also covers pools up to 30,000 gallons, so it's a common upgrade path for people who started with the 15K unit and always felt like it was working too hard.

Quick recap

Test your salt independently, inspect and clean the cell, confirm real water flow, and factor in water temperature. If everything checks out and your iChlor still isn't producing chlorine, the cell has probably reached the end of its service life and a 523009 replacement cell is the fix.

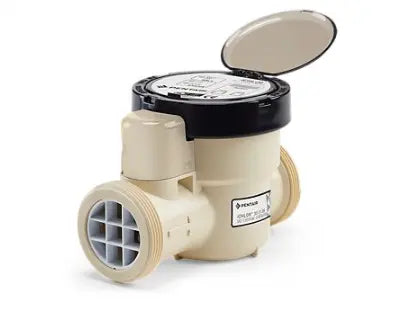

Pentair | 523009 | iChlor 30 Salt Chlorine Generator Cell – 30K Gallon Capacity

$952.99

Shop this part

Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
