Indoor Venting Requirements for Hayward Pool Heaters (Vertical vs. Horizontal)
A lot of pool heaters end up in garages, sheds, and equipment rooms. That works, but a gas heater burns fuel and puts out exhaust, so it can't just sit indoors with nothing but a ceiling above it. It needs a proper vent to the outside, and Hayward makes specific kits for exactly this.
This guide covers how indoor venting works on Hayward pool heaters, the difference between vertical and horizontal venting, and which kit fits your heater. The two part families you'll see are the UHXNEGVT series (vertical) and the UHXPOSHZ series (horizontal).
Can you install a Hayward pool heater indoors?
Yes, most Hayward Universal H-Series heaters can be installed indoors, but only with the correct Hayward indoor vent kit and enough combustion air in the room. Skipping either one is a safety problem, not just a performance problem.
The heater has to pull in fresh air to burn gas, and it has to push the exhaust all the way outside. Your heater's manual lists the exact air opening sizes and vent requirements for your model, and your local building code has the final say. When indoor venting is done wrong, exhaust gases (including carbon monoxide) can end up in the room. That's why this is one job where cutting corners isn't an option.
What's the difference between vertical and horizontal venting?
The short answer: vertical venting runs the exhaust straight up through the roof, while horizontal venting sends it out through a side wall. Which one you use mostly comes down to where the heater sits in the building.
Vertical venting on Hayward heaters uses a negative pressure setup. Hot exhaust naturally rises, so a vertical vent stack drafts on its own. The UHXNEGVT adapter connects the top of the heater to that vertical vent pipe. It's the simpler and usually cheaper option, which is why it's the go-to when a straight run up through the roof is possible.
Horizontal venting is a positive pressure setup. The exhaust gets pushed sideways out through the wall instead of rising on its own, so the vent system has to be sealed and built for it. That's what the UHXPOSHZ kit is for. It costs more than the vertical adapter, but it's the answer when going through the roof isn't practical.
Which Hayward indoor vent kit is compatible with your heater?
You match the kit to two things: your heater's BTU size and the vent pipe diameter. A kit sized for a 150K heater is not compatible with a 400K heater, so check the model number on your heater's rating plate before you order anything.
- Vertical (UHXNEGVT series): negative pressure indoor vent adapters, sized by heater BTU. For example, the UHXNEGVT13508 fits select 350,000 BTU H-Series heaters with an 8 inch vent connection.
- Horizontal (UHXPOSHZ series): positive pressure indoor vent kits, also sized by BTU and pipe diameter. The UHXPOSHZ12006, for example, is the horizontal kit for select 200,000 BTU heaters with a 6 inch adapter.
The last digits in the part number tell you the size. Once you know your heater's BTU rating, picking between a UHXNEGVT adapter and a UHXPOSHZ kit is quick.
What happens if the venting is wrong?
Bad venting shows up as a heater that won't ignite, keeps shutting off, or short cycles for no obvious reason. The heater's safety controls are doing their job by shutting things down when airflow isn't right.
Common venting mistakes we hear about include:
- Using a kit sized for the wrong BTU rating, which chokes or overdrafts the exhaust
- Not providing enough combustion air openings in the room
- Using regular duct or the outdoor top instead of the actual indoor vent parts
- Long vent runs or extra elbows beyond what the manual allows
If your indoor heater won't stay lit and you've ruled out gas supply and ignition parts, the vent setup is one of the first things worth checking.
Should you install an indoor vent kit yourself?
We recommend having a licensed gas professional handle the installation. This isn't like swapping a pump seal. Gas appliance venting has to meet local code, and an inspector may need to sign off on it. Buying the right UHXNEGVT or UHXPOSHZ part yourself is a good way to save money, then let a pro do the hookup and verify the draft.
The bottom line
If your Hayward heater vents straight up through the roof, you need a UHXNEGVT negative pressure vent adapter sized to your heater's BTU rating. If it vents out through a wall, you need the matching UHXPOSHZ horizontal vent kit. Match the size, give the heater enough combustion air, and have the work checked against local code. Here are the two kits, one for each venting style:

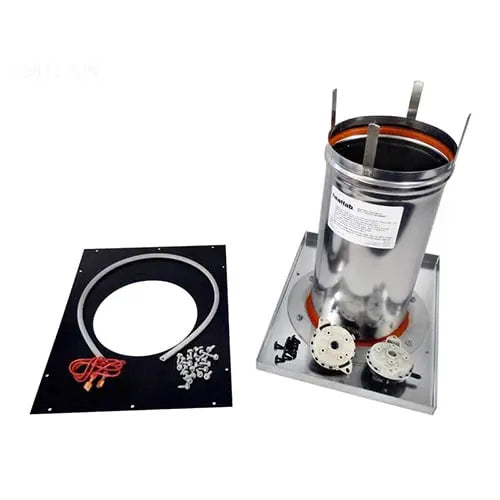

Hayward UHXPOSHZ12006 Universal H-Series Indoor Vent Kit (Horizontal, 200K, 6 inch)
