How to Set Up Hayward AquaConnect Home Network (AQ-CO-HOMENET)
If you own a Hayward Aqua Logic or Pro Logic system, you've probably wished you could adjust your pool from your phone instead of walking out to the panel. That's exactly what the Hayward AquaConnect Home Network mini-server (model AQ-CO-HOMENET) is for. Setup isn't hard, but a few steps trip people up, so here's the whole process in plain English.
What does the AQ-CO-HOMENET actually do?

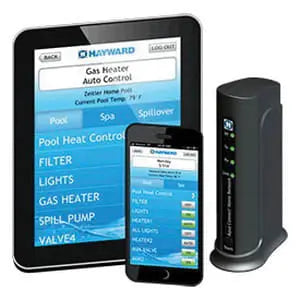

The AQ-CO-HOMENET is a small mini-server that links your Hayward automation control to your home network. Once it's connected, you can check and control your pool (pump, heater, lights, salt system) from a phone, tablet, or computer instead of standing at the control panel.
Think of it as a translator. Your Hayward panel speaks its own language over a communication bus. The mini-server takes that signal and puts it on your home network so your devices can talk to it.
What you need before you start
Have these ready before you open anything up. It saves a second trip to the garage.
- A compatible Hayward automation system, such as Aqua Logic, Pro Logic, or Aqua Plus
- The AQ-CO-HOMENET unit itself
- A working home network with decent signal near where the unit will mount
- A small screwdriver for the communication wiring terminals
- Your network name and password written down
One tip from experience: check your signal strength at the mounting spot with your phone first. If your phone struggles to hold a connection there, the mini-server will too.
How to install the AquaConnect Home Network, step by step
The short version: kill power, wire the unit to your panel's communication bus, restore power, then join it to your home network. Here's the longer version.
- 1. Turn off power at the breaker. Never wire anything inside the automation panel with power on. Flip the breaker, not just the panel switch.
- 2. Mount the unit. Pick a dry, protected spot near the panel that still gets good network signal. Indoors or inside a weather-protected enclosure is best.
- 3. Connect the communication wiring. The AQ-CO-HOMENET wires into the communication bus terminals on your Hayward panel. Match each wire to the correct terminal per the included instructions, and snug the screws down. Loose comm wires are the number one cause of a unit that's not working right after install.
- 4. Restore power. Flip the breaker back on and give the panel and mini-server a minute to boot up.
- 5. Join your home network. Follow the pairing steps in the manual to get the unit onto your network. You'll need that network name and password you wrote down.
- 6. Register and test. Set up your account, then try turning a light or the pump on and off from your phone while you're standing at the pool. If the equipment responds, you're done.
AquaConnect not connecting? Try this first
Most connection failures come down to three things: weak signal, a wrong password, or loose communication wiring. Start there before assuming the unit is bad.
- Weak signal. Pool panels are often mounted far from the router, sometimes behind stucco or concrete walls. Moving your router, adding an extender, or relocating the mini-server a few feet can fix it.
- Wrong network credentials. Re-enter the password slowly. One wrong character and it will never connect, with no helpful error to tell you why.
- Loose or reversed comm wires. Kill power and double-check every terminal against the wiring diagram. Reversed wires are a common install mistake.
- Old firmware on the panel. If your Aqua Logic or Pro Logic board is running very old software, it may not talk to the mini-server properly. Check with us if you're not sure what revision you have.
If you've checked all four and it's still not connecting, power cycle everything (breaker off, wait 30 seconds, breaker on) and try the pairing process again from scratch. A clean restart clears up a surprising number of issues.
Is the AQ-CO-HOMENET compatible with your system?
It's built for Hayward's Goldline family of controls, which includes Aqua Logic, Pro Logic, and Aqua Plus. It is not a fit for other brands, and it won't add automation to a pool that doesn't have a compatible Hayward panel already installed. If you're running a bare pump and filter with no automation, you'd need a control system first.
Not sure what panel you have? Snap a photo of the board inside your control box and send it to us. We match parts to panels all day and can tell you quickly whether the AQ-CO-HOMENET will work for your setup.
Bottom line
The Hayward AquaConnect Home Network (AQ-CO-HOMENET) is one of the simpler upgrades you can make to an Aqua Logic or Pro Logic system, and it's the difference between walking out to the panel every time and just pulling out your phone. Wire it carefully, get it on a strong network signal, and it should run quietly in the background for years.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
