Hayward W36060 Booster Pump Not Turning On? Causes, Fixes, and Replacement Cost
A pressure-side cleaner is only as good as the pump pushing water to it. When the booster pump quits, the cleaner stops dead or just drags itself around the shallow end. Here's how to tell what went wrong with a Hayward W36060 booster pump before you start buying parts.
What does the W36060 booster pump actually do?
It's a separate 1 HP pump that takes water from your filter's return line and shoots it into the cleaner at high pressure. Your main pump can't do that job on its own. The W36060 runs only while the cleaner is running, usually on its own timer or automation relay.
That matters for troubleshooting. If the booster pump isn't getting power at the right time, the problem may be the timer or the relay, not the pump itself.
Why is my Hayward booster pump not turning on?
Nine times out of ten it's power, a bad start capacitor, or a seized motor shaft. Check those in that order before assuming the whole pump is toast.
- No power reaching the pump. Test the breaker, then test voltage at the pump terminals while the timer or automation is calling for the cleaner.
- Timer or relay failure. If the main pump runs but the booster never kicks on, the mechanical timer or the automation relay is a strong suspect.
- Bad capacitor. A pump that hums but won't spin usually has a failed start capacitor. This is one of the cheaper fixes on a booster pump.
- Seized shaft. If it ran dry at some point, the seal and bearings may have cooked. A shaft you can't turn by hand is a bad sign.
- Tripped thermal overload. Motors shut themselves off when they overheat. Let it cool and see if it restarts, but treat that as a symptom, not a fix.
Booster pump runs but the cleaner barely moves
If the W36060 is running and the cleaner still crawls, you have a flow problem, not an electrical one. The pump is doing its part but the water isn't getting where it needs to go at full pressure.
Start with the basics. A clogged pump basket or a dirty filter starves the booster pump. Cracked or leaking cleaner hoses bleed off pressure before it reaches the head. A worn impeller inside the booster pump moves less water even though the motor sounds fine.
Also check that the cleaner's wall fitting and quick disconnect aren't partially blocked. Debris that gets past the skimmer basket loves to park itself right there.
How to troubleshoot a W36060 step by step
- Shut off power at the breaker before you touch anything.
- Clean the main pump basket and the skimmer, then check filter pressure. Backwash or clean the cartridge if pressure is high.
- Restore power and watch the booster pump when the cleaner cycle starts. Note whether it hums, clicks, or stays silent.
- If it's silent, test for voltage at the pump. No voltage means the problem is upstream in the timer, relay, or breaker.
- If it hums but won't spin, kill the power and try turning the motor shaft by hand. Free shaft points at the capacitor. Stuck shaft points at the motor or wet end.
- If it runs strong but the cleaner is slow, inspect the hoses and the impeller for wear or blockage.
Never run a booster pump dry, even for a few seconds. It has no water reservoir of its own, so it depends completely on the main pump priming first. Running the W36060 without flow is the fastest way to destroy the seal.
Repair or replace the booster pump?
A capacitor, an O-ring, or an impeller is worth replacing. A pump with a seized motor, a burned winding, or a cracked volute usually isn't, especially if it's already several seasons old.
Here's the honest math. Parts and labor on an old booster pump can easily reach half the price of a new one, and you're still left with an aging motor. If the pump has been running dry or leaking for a while, put the money toward a new W36060 instead of chasing one failure after another.
Parts that fail alongside the W36060
When you're already in there, look at the pieces that wear out on the same schedule. Booster pump O-rings dry out and let air in. Impeller assemblies wear down and cost you pressure. Cleaner hose kits crack at the connections and leak.
Replacing a $12 O-ring while the pump is apart beats taking it apart again in three weeks.
Getting the right Hayward booster pump the first time

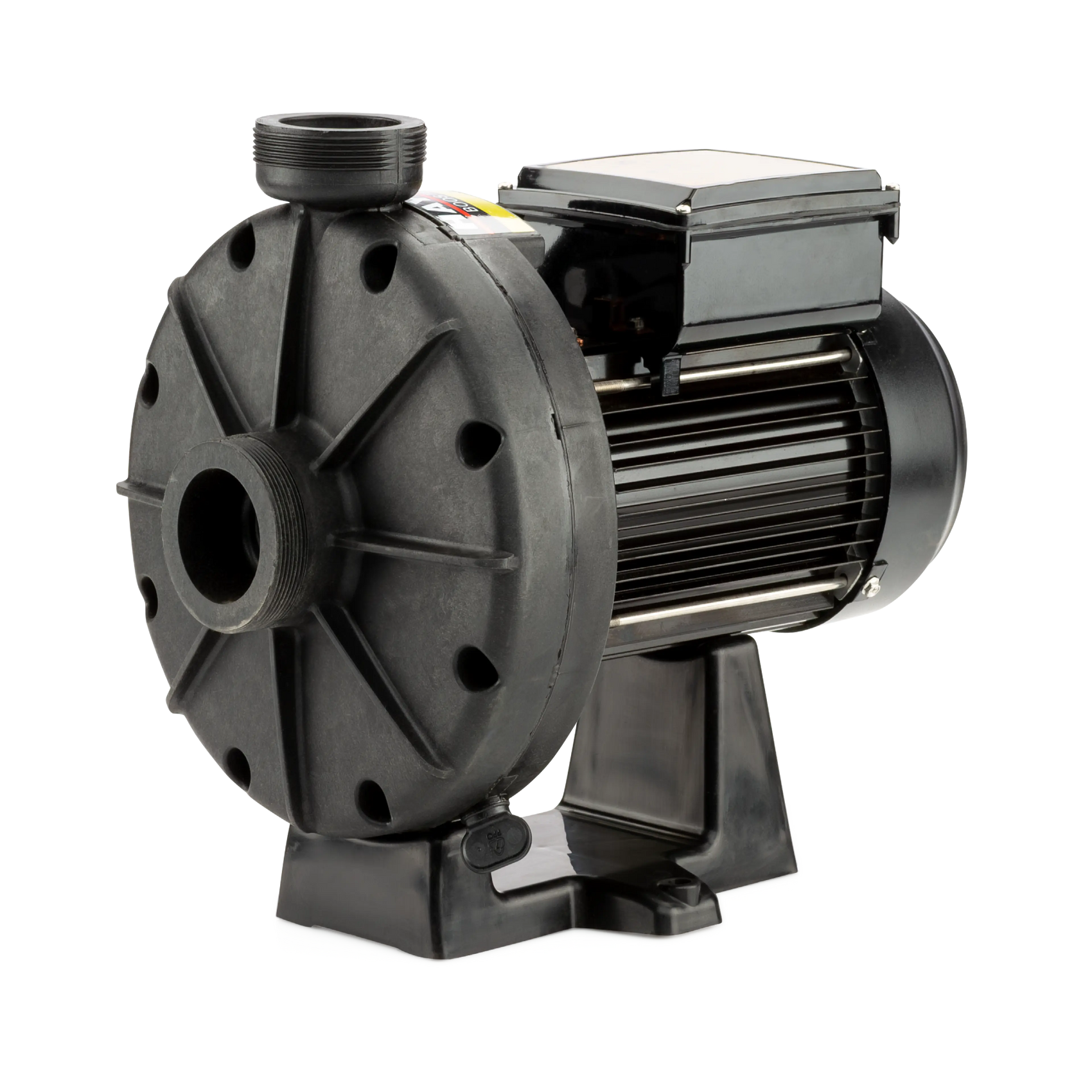

The W36060 is the current 1 HP booster pump for Hayward pressure-side cleaners, and it's a direct fit for most setups that already run one. Match the plumbing size and the voltage at your existing pad, and confirm your timer or automation relay is rated for the load.
If your cleaner has never moved the way it should, don't assume the pump is undersized. Nine out of ten slow-cleaner calls we take end up being filter pressure, hoses, or a worn impeller instead.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
