Hayward TriStar VS 900 vs. TriStar VS 950: Which Pump Do You Need? (SP32900VSPX1 vs SP32950VSPX1)
We get this question at the counter all the time. Someone knows they want a Hayward TriStar variable speed pump, then they see the TriStar VS 900 (model SP32900VSPX1) sitting next to the TriStar VS 950 (model SP32950VSPX1) and they're stuck. The names are nearly identical. The price gap isn't small. So which one do you actually need?
Short answer: most standard residential pools do fine with the VS 900. The VS 950 earns its extra cost when you have a big pool, a spa, water features, or long plumbing runs that need more muscle. Here's how to tell which camp you're in.
What's the actual difference between the VS 900 and VS 950?
The main difference is horsepower and voltage. The TriStar VS 900 (SP32900VSPX1) is a 1.85 HP pump that runs on 230V single phase. The TriStar VS 950 (SP32950VSPX1) steps up to 2.7 total HP and accepts either 115V or 230V.
Everything else about them is very similar. Both are part of Hayward's TriStar VS line, both are variable speed, and both come with OmniX built in, which means you can control them from the Omni app on your phone without buying a separate automation system. Same family, same smarts, different amount of muscle.
Is the TriStar VS 900 (SP32900VSPX1) enough for my pool?
For a typical in-ground pool with standard plumbing and no spa, yes, the VS 900 is plenty. At 1.85 HP it moves more than enough water for everyday circulation, filtering, and running a suction cleaner.
Remember that a variable speed pump spends most of its life running at low speed anyway. That's where the energy savings come from. Buying more horsepower than your pool needs just means you paid extra for capacity you'll rarely touch. If your old single speed pump was 1.5 HP or smaller and it kept your pool clean, the VS 900 will not leave you wanting.
Who should buy the TriStar VS 950 (SP32950VSPX1)?
Buy the VS 950 if your pool asks more of a pump than average. That extra horsepower matters when you have:
- A large pool, roughly 30,000 gallons or more
- A spa with jets that need strong flow to feel right
- Waterfalls, deck jets, or other water features
- Solar heating on the roof, which takes real pressure to push water up to
- Long plumbing runs or lots of elbows between the equipment pad and the pool
In any of those situations, an undersized pump has to scream at full speed to keep up, which burns more power and wears the pump harder. Sizing up to the SP32950VSPX1 lets it do the same job at a lower, quieter speed.
What about wiring? 230V vs dual voltage
The VS 900 needs 230V, full stop. The VS 950 is dual voltage, so it can run on 115V or 230V. If your equipment pad only has 115V available and rewiring isn't in the budget, that alone can settle the debate in favor of the VS 950.
Most in-ground pool pads already have 230V, so check your breaker panel or ask your electrician before you let voltage drive the decision. If you're not sure what you have, don't guess. Wiring a pump to the wrong voltage is a fast way to kill it.
Do both pumps work with automation?
Yes. Both the SP32900VSPX1 and SP32950VSPX1 include OmniX, Hayward's built-in smart control. You can schedule speeds, monitor the pump, and make changes from your phone. If you later add more Hayward smart equipment, these pumps fold right into that setup.
That's worth calling out because older TriStar models made you choose between a standalone pump and one that talked to automation. With these two, app control comes standard either way.
Price and the bottom line
The TriStar VS 900 (SP32900VSPX1) runs $1,660 and the TriStar VS 950 (SP32950VSPX1) runs $2,100. That $440 gap buys you close to a full extra horsepower and dual voltage flexibility.
Our honest take: match the pump to the pool, not to the spec sheet. Standard pool, standard plumbing, 230V at the pad? Save the money and get the VS 900. Big pool, spa, water features, solar, or a 115V-only pad? The VS 950 is the right tool and you won't regret it.
Hayward | SP32900VSPX1 | TriStar VS 900 Pump with OmniX | 1.85 HP 230V Single Phase
$1,660.00
Shop this part

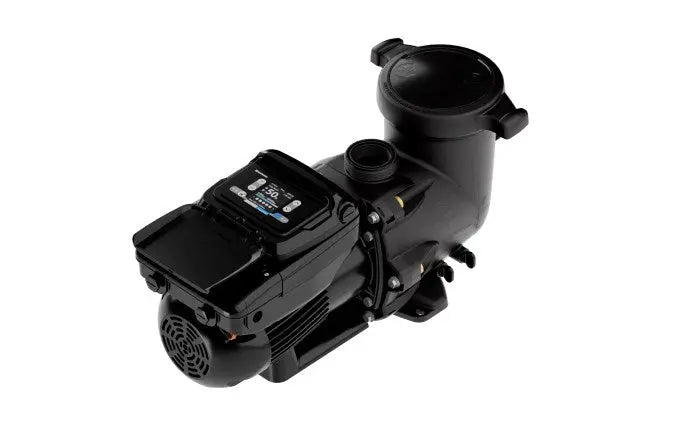

Hayward | SP32950VSPX1 | TriStar VS 950 Variable Speed Pump with OmniX | 2.7 HP 115/230V
$2,100.00
