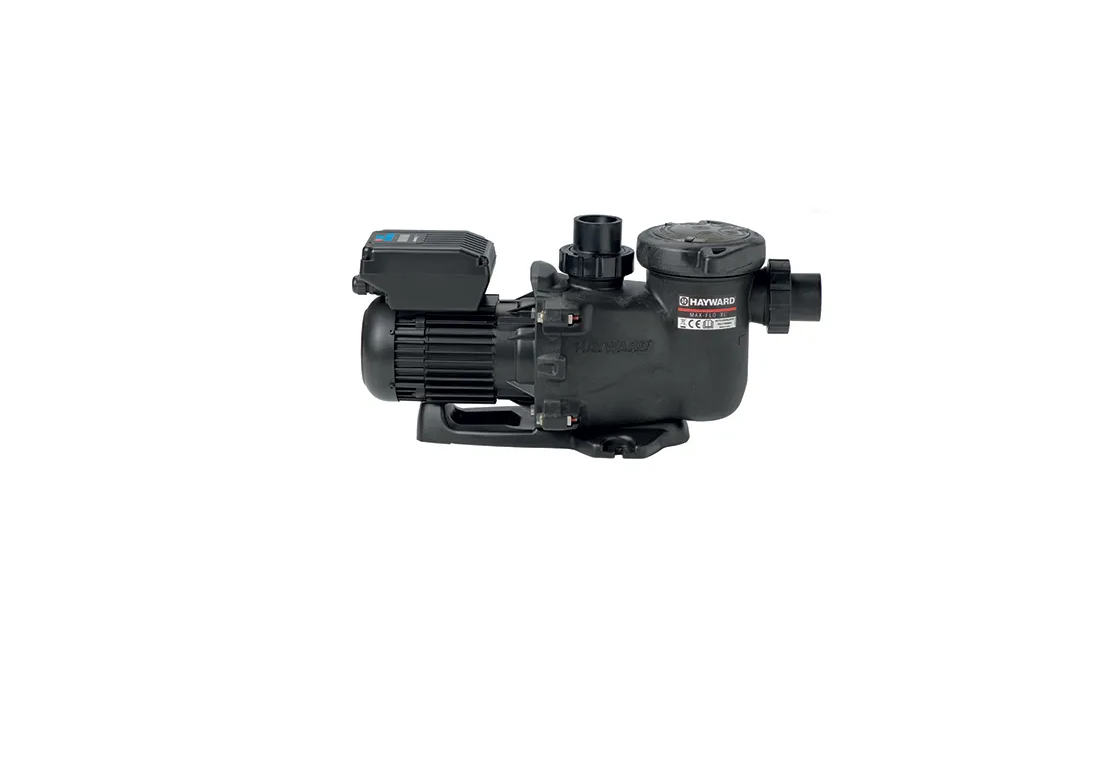

Hayward MaxFlo VS Pump Error Codes & Troubleshooting (Model SP23115VSP)
When a Hayward MaxFlo VS throws an error, the pump usually shuts itself down and flashes a code on the control panel. That's the drive protecting itself, not the pump dying. Most faults on the SP23115VSP trace back to power problems, overheating, or something blocking water flow, and you can sort a lot of them out yourself in under an hour.
We sell and support the MaxFlo VS SP23115VSP every week at the shop, so this guide covers the stuff customers actually call us about. Grab the code off your display, then work through the sections below.
What do the error codes on a Hayward MaxFlo VS mean?
The codes on the SP23115VSP display fall into a few families: power and voltage faults, drive or motor faults, overheating faults, and communication faults if the pump is tied into automation. Your owner's manual has the exact list for your firmware version, and it's worth keeping it near the equipment pad.
We're not going to print a made-up code table here. Hayward has revised these across firmware versions, so always match the code on your screen to the manual for your unit. What we can tell you is what each family of faults means in practice and how to fix it.
Why does my MaxFlo VS keep tripping on power faults?
Power faults almost always mean the pump isn't getting clean, steady voltage. The SP23115VSP is a 115V pump, and variable-speed drives are picky about what they're fed.
- Low voltage. Long wire runs, undersized wire, or a sagging supply during peak hours can drop voltage below what the drive will accept. Have the voltage checked at the pump terminals while it's running, not just at the breaker.
- Loose connections. Terminals loosen over seasons of heat cycling. Kill the breaker, then check that every connection at the pump and the timer or breaker is snug.
- Nuisance breaker trips. If the breaker itself keeps tripping, don't just reset it over and over. A weak breaker, a shared circuit, or a real short in the motor can all cause this, and an electrician can tell you which one you have.
If the pump won't turn on at all and shows nothing on the display, start at the breaker and work toward the pump. No display usually means no power reaching the drive.
How do I fix an overheating fault?
Clear space around the pump and clean water through it. That fixes most overheat shutdowns on the MaxFlo VS.
The drive on top of the motor generates heat and needs airflow to shed it. If the pump sits in a tight equipment enclosure, baking in afternoon sun, or covered in leaves and cobwebs, it'll run hot and shut down on the hottest days. Clear at least a few inches around the fan end, hose off the vents with the power off, and give it shade if you can.
Low water flow also makes the pump run hot. A packed pump basket, a dirty filter, or a mostly closed valve forces the motor to work harder than it should. Clean the basket and filter and make sure the suction valves are fully open.
What if the pump runs but won't prime or move water?
Priming problems are an air problem, not an electrical problem. The pump is pulling air in somewhere on the suction side.
- Check the pump lid o-ring. A dry, cracked, or dirty o-ring is the number one cause. Clean it, lube it with pool-safe lubricant, or replace it.
- Make sure the water level in the pool covers at least half the skimmer opening.
- Look for cracked suction fittings or loose drain plugs on the pump housing.
- Fill the strainer housing with water before restarting so the pump isn't trying to prime dry.
Never let the SP23115VSP run dry for long. Running without water cooks the shaft seal fast, and then you've got a leak on top of a priming issue.
How do I reset a Hayward MaxFlo VS after an error?
Most faults clear once the cause is fixed. Press the stop button, fix the underlying problem, and restart the pump. For stubborn faults, kill power at the breaker for a full minute, then power back up. That reboots the drive completely.
If the same code comes right back after a clean reboot with good voltage, clean water flow, and a cool drive, the fault is likely inside the drive or motor itself, and that's when it stops being a DIY job.
Repair or replace: when is the SP23115VSP worth fixing?
Simple fixes like o-rings, baskets, and wiring are always worth doing. A failed drive or motor on an older unit is a harder call.
Drive and motor replacements on a variable-speed pump can run a large chunk of the cost of a whole new pump. If your MaxFlo VS is more than five or six years old and the drive has failed, price out a new SP23115VSP before you commit to the repair. A new pump comes with a fresh warranty and current firmware, and you're not gambling on the next component failing a season later.
If you've worked through all of this and your SP23115VSP is still throwing codes, take a photo of the display and the data plate on the motor before you call anyone. Having the exact code and model info ready saves everyone time.
