Hayward HeatPro Heat Pump Not Heating? How to Tell If the Control Board Is Bad (HPX26024139)
A Hayward HeatPro that won't heat is one of the more frustrating calls we get. The pump runs, the water moves, and the pool stays cold. Sometimes the display is blank. Sometimes it shows a temperature but the compressor never kicks on. In a lot of these cases the culprit ends up being the control board, part number HPX26024139.
Before you order anything, though, it pays to rule out the cheap and easy stuff. Plenty of "dead" heat pumps turn out to be a tripped breaker or a flow problem. Here's how we walk customers through it.
What does the control board actually do?

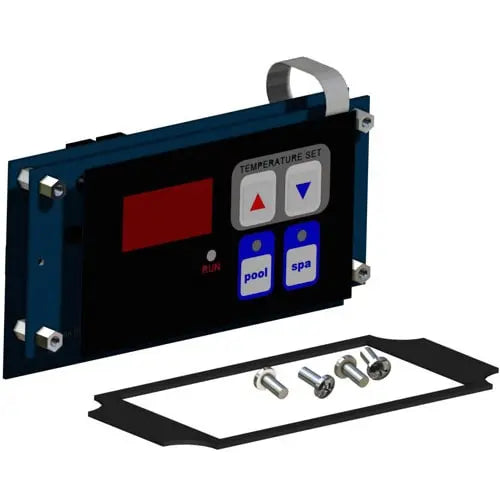

The control board is the brain of the HeatPro. It reads the sensors, watches the safety switches, and decides when the compressor and fan should run.
When the HPX26024139 board starts to fail, the heater can act possessed. You might see a blank or scrambled display, buttons that don't respond, a unit that powers on but never calls for heat, or one that shuts off at random. Because the board touches everything, a bad board can mimic almost any other failure. That's why you test the simple things first.
Why is my HeatPro not heating? Check these first
Most no-heat complaints aren't the board at all. Run through this list before you blame electronics:
- Power and breaker. Heat pumps pull serious amps. A weak or tripped breaker is the number one cause of a heat pump that won't turn on. Reset it once. If it trips again, call an electrician, don't keep resetting it.
- Thermostat setting. It sounds obvious, but confirm the set point is above the current water temperature. If they match, the heater has no reason to run.
- Water flow. A dirty filter, a low pump speed, or a closed valve can drop flow below the pressure switch's threshold. The board sees low flow and locks the heater out to protect it. Clean the filter and run the pump on high, then check again.
- Air temperature. Heat pumps pull warmth from the air. When it's cold out, roughly below the low 50s, output drops fast and the unit may spend long stretches in defrost. That's normal behavior, not a failure.
- Refrigerant issues. If the fan and compressor run but the water never warms, low refrigerant is possible. That's a job for an HVAC tech with gauges, not a parts swap.
Signs the HPX26024139 control board is the real problem
If power, flow, and settings all check out, the board moves to the top of the suspect list. These symptoms point strongly toward a failing control board:
- The display is blank even though the unit has confirmed voltage at the terminals.
- The display shows garbage characters, or readings that jump around wildly.
- Buttons do nothing, or the keypad works only some of the time.
- The unit ignores a legitimate call for heat. Water is below set point, flow is good, air is warm, and it still just sits there.
- Relays click rapidly on and off, or the unit starts and stops in short cycles for no clear reason.
- You see visible damage on the board itself: scorch marks, a swollen component, or corrosion. Boards live outside in a damp box, and moisture plus ants (yes, really) kill a lot of them.
A quick visual check costs nothing. Kill power at the breaker, open the access panel, and look the board over with a flashlight. Burnt spots or green corrosion around the connectors usually settle the question on the spot.
Replacement cost: new board vs. new heat pump
A genuine Hayward HPX26024139 control board runs a little over $200. A new heat pump runs several thousand dollars installed. If the rest of the unit is healthy, the board is an easy call.
The math changes if your HeatPro is 12 to 15 years old and already has other problems, like a tired compressor or a leaking heat exchanger. At that point putting a new board in is patching a unit that's near the end anyway. For a heater under about 10 years old with one clear fault, replace the board and move on.
Is HPX26024139 compatible with your heater?
The HPX26024139 board fits select Hayward HeatPro heat pump models. Before ordering, pull your heater's model number off the data plate on the cabinet and compare it against the part listing, or just send it to us and we'll confirm the match.
Swapping the board is mostly a matter of photographing the wire positions, moving connectors one at a time, and mounting the new board. If you're not comfortable working inside high-voltage equipment, a pool tech can do the swap quickly, and you'll still come out way ahead of replacing the whole unit.
Bottom line: rule out the breaker, the filter, and the weather first. If the HeatPro still won't heat and the symptoms match the list above, the HPX26024139 control board is the likely fix.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
