Hayward Heater Clicks but Won't Fire? How to Tell If the Gas Valve Is Bad (FDXLGSV0002)

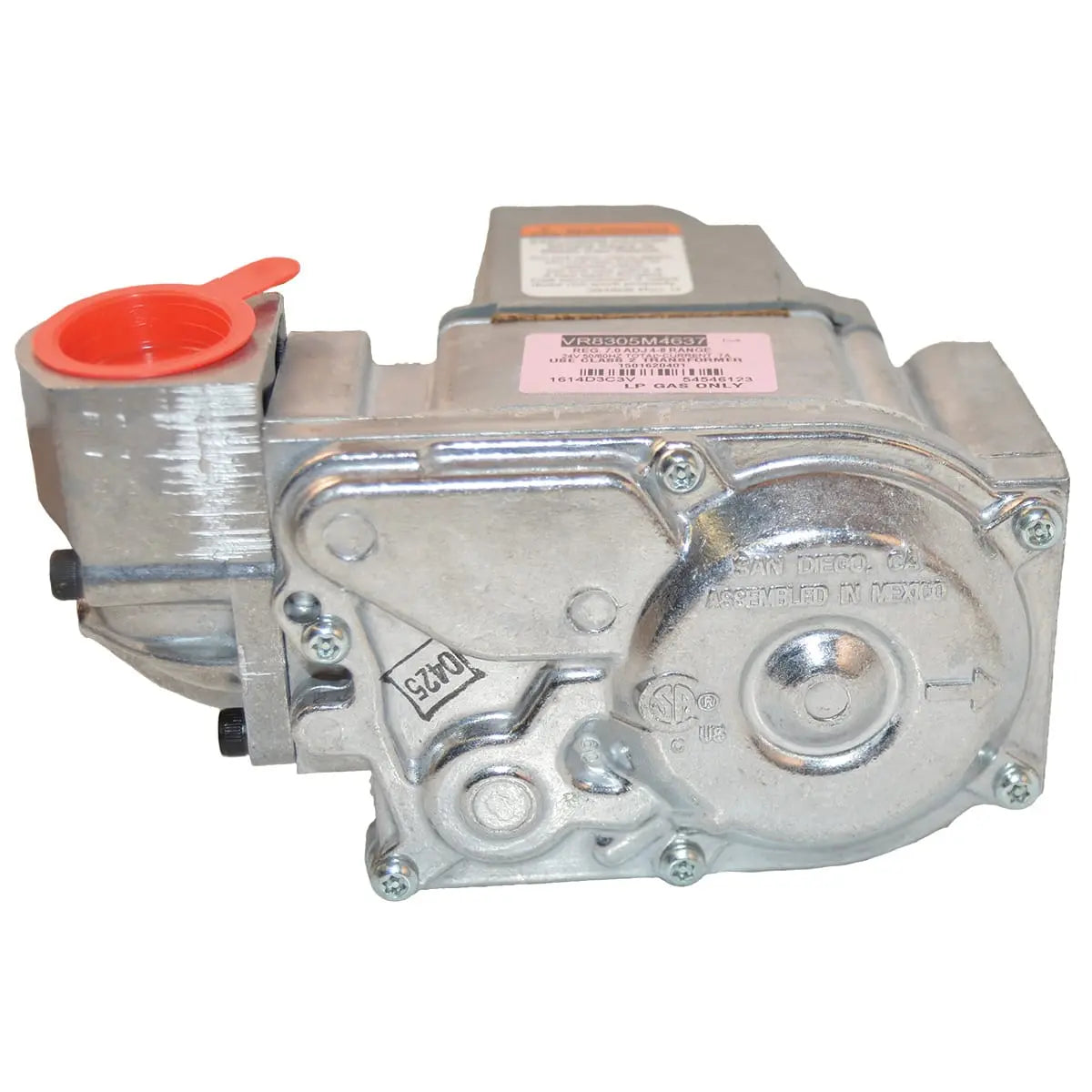

You hear the heater start its cycle. The blower spins up, the igniter clicks, and then nothing. No flame, no heat, and eventually an ignition failure lockout. When a Hayward Universal H-Series heater does this over and over, the gas valve is one of the usual suspects. On propane models, the replacement part is the Hayward FDXLGSV0002 gas valve kit.
Before you order anything, it pays to confirm the valve is actually the problem. Plenty of no-fire heaters turn out to have a simpler cause. Here's how to work through it.
What does the gas valve do on a Hayward heater?
The gas valve is the gatekeeper for fuel. When the control board calls for heat, it sends 24 volts to the valve, the valve opens, and gas flows to the burner tray where the igniter lights it. If the valve sticks shut or its internal coil fails, the heater runs through its whole startup routine but never gets any fuel to burn.
That's why a bad valve produces such a clean symptom. Everything sounds normal right up until the moment the flame should appear.
Signs the FDXLGSV0002 gas valve is going bad
The most common sign is a heater that clicks and tries to ignite but never fires, then locks out with an ignition failure. A few other patterns point the same direction:
- The heater lights sometimes and not others, often struggling more on cold mornings.
- You hear the igniter sparking but never hear the soft whoosh of the burners lighting.
- The heater fires briefly, runs a few seconds, then drops out and retries.
- You don't hear the faint clunk of the valve opening during the ignition attempt.
None of these prove the valve is dead on their own. They just tell you where to start checking.
How to check the gas valve before you replace it
Rule out the gas supply first. A closed shutoff, a near-empty propane tank, or low inlet pressure will cause the exact same no-fire symptom as a failed valve, and those fixes are free.
- Confirm every shutoff valve between the tank and the heater is fully open.
- On propane, check the tank level. Below about 20 percent, pressure can sag enough to cause ignition trouble.
- If other propane appliances on the same supply are also struggling, the problem is supply, not the heater.
- With a multimeter, check for 24 volts at the valve terminals during an ignition attempt.
- If the valve gets 24 volts but never opens, the valve itself is the likely failure.
- If there's no voltage at the valve, look upstream instead. The control board or a safety switch (pressure switch, high limit) is interrupting the circuit.
One honest caution here. If you're not comfortable working around gas and live voltage, hand this diagnosis to a pool heater tech. The part is easy to buy, but gas work is not the place to guess.
Is it the gas valve or the control board?
The voltage test settles it. Power arriving at the valve with no gas flow means a bad valve. No power arriving means the valve never got the command, so the board or a safety in the chain is the real problem. Swapping a gas valve when the board is at fault is a frustrating and expensive mistake, so take the five minutes to test.
FDXLGSV0002 replacement cost and compatibility
The FDXLGSV0002 gas valve kit runs $349.99, which is a small fraction of what a new heater costs. It's a genuine Hayward part built for the Universal H-Series FD platform.
Two things to verify before ordering. First, fuel type: this kit is for propane (LP) models, and natural gas heaters use a different valve kit. Second, your exact heater model, which you'll find on the rating plate. A quick check of your manual or a call to us confirms it's compatible with your unit.
If your Universal H-Series heater keeps clicking without firing and the valve failed your voltage test, the FDXLGSV0002 is the fix that gets your pool warm again.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
