Hayward HDF400 Heater Won't Ignite? Troubleshooting Steps
A Hayward HDF400 that won't ignite is almost always dealing with one of three things: no gas, not enough water flow, or a dirty ignition component. The good news is you can check most of these yourself in about twenty minutes, and none of them require tearing the heater apart.
We sell and support the HDF400 Universal HC Series every week, and the calls we get about ignition problems usually end with a fix that costs little or nothing. So before you assume the worst, work through this list in order.
What should I check first if my HDF400 won't fire?
Start with the simple stuff: power, gas, and the thermostat setting. It sounds obvious, but a surprising number of "broken heater" calls turn out to be a tripped breaker or a gas valve someone shut off last fall.
- Confirm the breaker for the heater hasn't tripped, and that the heater's display powers on.
- Make sure the manual gas shutoff valve near the heater is open (handle parallel to the pipe).
- Check that the thermostat is set higher than the current water temperature. The heater won't even try to ignite if it thinks the water is already warm enough.
- If your heater runs through an automation system, make sure the automation is actually calling for heat and not stuck in a schedule that has the heater off.
If all of that checks out and the HDF400 still won't light, move on to water flow.
Why won't my heater ignite when the pump is running?
Low water flow is the most common reason a pool heater refuses to ignite. The HDF400 has a pressure switch that blocks ignition unless it senses enough water moving through the heat exchanger. This is a safety feature, not a defect.
Common flow problems include:
- A dirty filter. If your filter pressure is running high, clean the cartridge or backwash before doing anything else.
- A variable speed pump running too slow. Many people set their pump to a low energy-saving speed, and that speed may not push enough water to satisfy the heater. Bump the RPM up and see if it lights.
- A partially closed valve somewhere between the pump and the heater.
- A clogged pump basket or skimmer basket starving the system.
Fix the flow issue, let the pump run a few minutes, then watch whether the heater attempts ignition.
Is it a gas supply problem?
If the heater powers up and has good flow but still won't light, gas supply is the next suspect. The HDF400 is a dual-fuel unit, so it can run on natural gas or propane, but either way it needs steady pressure to ignite and stay lit.
On propane, check your tank level first. Tanks that are low or nearly empty can't deliver enough pressure for a 400K BTU heater. On natural gas, make sure no other work has been done on the line and that the meter valve is fully open. Undersized gas lines are also a classic cause of a heater that tries to light, fires briefly, then drops out. If you suspect a pressure or line sizing issue, that's a job for a licensed gas professional, not a DIY fix.
Ignition components: igniter and flame sensor
If gas and flow are good, a dirty or worn ignition component is likely stopping the HDF400 from lighting. The two usual suspects are the hot surface igniter and the flame sensor.
An igniter that's cracked or burned out won't glow, so the gas never lights. A flame sensor coated in buildup can't confirm the flame exists, so the control shuts the gas off within seconds of ignition. That's how you fix the classic "lights then dies" pattern: the sensor gets cleaned or replaced and the problem goes away.
These parts are inexpensive compared to a service call, but they involve opening the combustion area. If you're not comfortable working around gas components, have a pool heater tech handle it.
Don't forget venting and airflow
The HDF400 needs clean intake air and a clear exhaust path to ignite reliably. Check for leaves, mulch, or debris around the unit, and look for anything blocking the vent. Indoor and enclosed installations are pickier here, since improper venting can starve the burner of air. Spider webs and insect nests in the burner area are a real thing too, especially after the heater sits unused for months.
When is it time to stop repairing and replace the heater?
If your heater is over 8 to 10 years old and needs a major component like a heat exchanger or control board, replacement usually makes more financial sense than repair. A new HDF400 gives you a fresh warranty, low NOx operation, and dual-fuel flexibility, and you stop throwing repair money at a unit that will keep finding new ways to fail.
For newer heaters, repair almost always wins. A flame sensor, igniter, or pressure switch is cheap next to the cost of a whole new unit.
Still stuck?

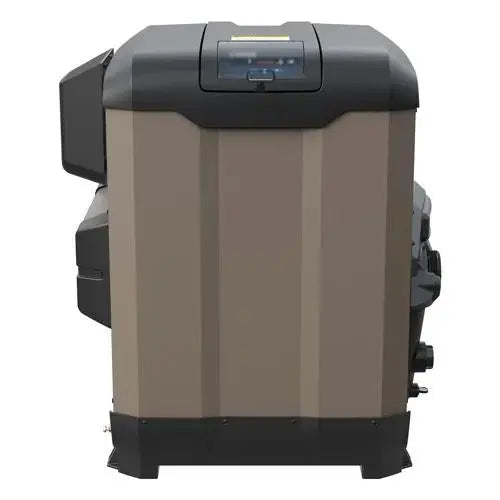

If you've worked through everything above and your Hayward HDF400 still won't ignite, the issue is likely in the gas valve or control board, and that calls for a diagnosis with a meter in hand. And if you've decided your old heater has reached the end of the road, here's the current HDF400 we stock.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
