Hayward H-Series Heater Leaking Water? How to Tell If the Heat Exchanger Is Bad (FDXLHXA1400)
A puddle under a pool heater makes everyone nervous, and honestly it should. Sometimes it's nothing. Sometimes it means the heat exchanger inside your Hayward Universal H-Series heater has failed, and that's the most expensive part in the whole cabinet.

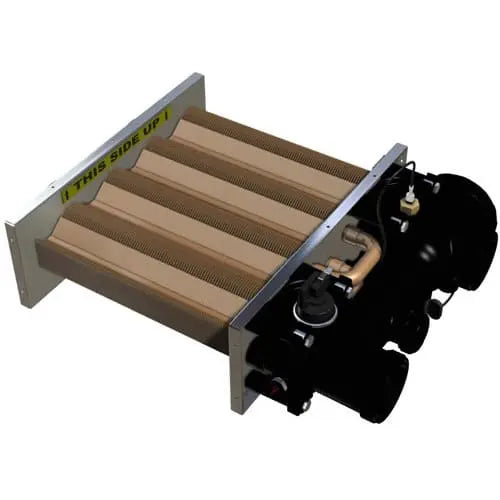

This guide walks through how to tell the difference, what kills heat exchangers in the first place, and when it makes sense to install a replacement like the Hayward FDXLHXA1400 heat exchanger assembly instead of paying for an entirely new heater.
What does the heat exchanger actually do?
The heat exchanger is the tube bundle that sits above the burners and carries your pool water through the flame's heat. Water goes in cool, picks up heat as it passes through the tubes, and comes out warm.
Because it holds pressurized water directly over an open flame, it takes more abuse than any other part in the heater. When it springs a leak, water ends up where it should never be: on the burners, on the controls, and on the ground under the unit.
Why is my Hayward heater leaking water?
Not every leak means a bad heat exchanger. Before you assume the worst, rule out the cheap and normal causes first.
- Condensation. A heater warming up cold spring water will sweat, and that condensation can drip out the bottom. It looks alarming and it's completely normal. It stops once the water warms up.
- Loose unions. The plumbing connections on the inlet and outlet side can weep after a season of heat cycles. Snug them by hand and see if the drip stops.
- Pressure relief valve. If your heater has one and it's weeping, the valve itself may be tired, or system pressure may be too high.
- Winterizing damage. If the leak showed up at spring startup, freeze damage is a real possibility, and the exchanger is usually the victim.
If the leak is steady, comes from inside the cabinet while the heater is running, and doesn't stop when the water is warm, the heat exchanger is the prime suspect.
Signs the FDXLHXA1400 needs to go in
A failing exchanger usually gives you more than one clue. Watch for these:
- A steady drip or stream from inside the heater cabinet, not from the plumbing connections
- Water pooling in the burner tray, or burners that hiss and sputter when the heater fires
- Rust streaks or heavy white scale on the outside of the tube bundle
- The heater lights but won't stay lit, because dripping water keeps disrupting the flame
- A drop in heating performance even though the heater seems to run fine
What causes a heat exchanger to fail?
Water chemistry is the number one killer. Low pH makes pool water acidic, and acidic water eats metal tube walls from the inside out. Salt pools with a chlorinator plumbed too close to the heater (or without a check valve) are especially rough on exchangers, because concentrated chlorine can flow back into the heater when the pump shuts off.
Low flow is the other big one. A dirty filter or an undersized pump lets water sit in the tubes too long, it overheats, and scale builds up fast. And in cold climates, water left in the exchanger over winter can freeze, expand, and split a tube.
Repair or replace the whole heater?
Here's the simple rule we give customers: if the heater is under 8 to 10 years old and everything else works, replace the exchanger. If the heater is older than that, or the control board and blower are also acting up, put the money toward a new unit.
The math usually favors the repair on newer units. The FDXLHXA1400 fits 400,000 BTU Hayward Universal H-Series heaters, and a brand new 400K heater costs well over three thousand dollars before installation. Swapping the exchanger saves you a big chunk of that and keeps a perfectly good cabinet, board, and gas system in service.
One tip before you order: Hayward makes a matching exchanger for each Universal H-Series size, from 150K up to 400K BTU. Check the model plate on your heater and match the last digits (a 400K unit takes the FDXLHXA1400, a 250K takes the 1250 version, and so on).
What does the replacement cost?
The FDXLHXA1400 assembly runs $1,499 as a genuine Hayward part. Installation is not a beginner job, since it involves gas connections and a full teardown of the top of the heater, so budget a few hundred dollars for a qualified tech unless you're experienced with heater work. Even with labor, you're typically well under the cost of a new 400K heater installed.
How to keep the new one alive
Once the new exchanger is in, protect it. Keep pH between 7.4 and 7.6, test water weekly during swim season, and make sure any chlorinator or salt cell downstream of the heater has a check valve between them. Backwash or clean your filter on schedule so the heater always gets full flow. Do those three things and the new FDXLHXA1400 should outlast the rest of the heater.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
