Can You Replace a 3/4 HP Pool Pump Motor With a 1 HP? (Hayward SPX1605Z1M vs SPX1607Z1M)
We get this question at the counter all the time. A motor dies, the customer figures they might as well go bigger, and they ask if the 1 HP Hayward SPX1607Z1M will work where their 3/4 HP SPX1605Z1M used to sit. The short answer is that both motors share the same 56J frame, so the 1 HP will bolt on. That doesn't mean it's the right move.
Can you put a 1 HP motor on a 3/4 HP pool pump?
Physically, yes. The Hayward SPX1605Z1M and SPX1607Z1M are both Maxrate 56J frame motors, so the mounting and shaft are the same. But the safe answer for most people is to replace like with like. Your pump's impeller, wiring, and plumbing were all sized around the original motor.
A pool pump motor doesn't decide how much water moves. The impeller does. Bolt a 1 HP motor behind a 3/4 HP impeller and you get almost the same flow you had before, just with a bigger electric bill.
Why does matching horsepower matter?
It matters because the impeller and the motor work as a pair. Here's what can go wrong when they don't match:
- The motor may draw more current than your existing wiring or breaker was sized for, which is how you end up with a pump that keeps tripping the breaker.
- You pay for extra electricity every hour the pump runs, with little or no gain in actual flow.
- If you also swap in a bigger impeller to chase more flow, you can overwork your filter and plumbing, which were sized for the original system.
If your pump was moving enough water before the motor failed, a matching replacement gets you right back to normal. That's the whole job.
What about total HP and service factor?
The number on the label isn't the full story. Motors also have a service factor, and the real working power is the rated HP multiplied by that service factor. Two motors with different labels can be closer in true output than they look.
This is why we tell customers not to shop by the HP sticker alone. Match the motor model number on your old motor's label if you can still read it. If the label is gone, the pump's model number is the next best way to look up the correct replacement. Not sure what you have? Send us a photo and we'll identify it.
SPX1605Z1M vs SPX1607Z1M: which one do you need?

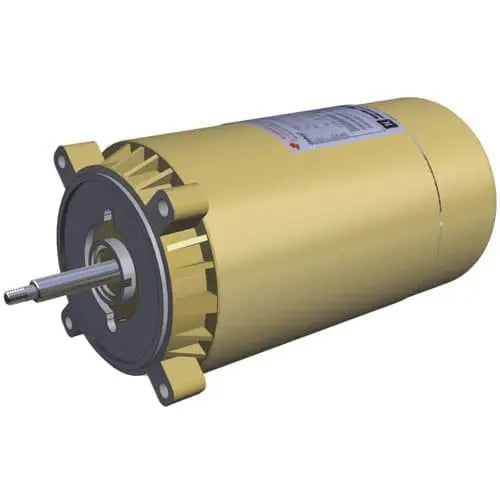

Pick the one that matches your pump's original rating. If your pump shipped with a 3/4 HP motor, the SPX1605Z1M is your replacement. If it shipped with a 1 HP motor, you want the SPX1607Z1M. Both are genuine Hayward Maxrate motors built for select Hayward pool and spa pumps, and both use the 56J frame.
Check the data plate on your dead motor. It lists the HP, frame, and model number. Two minutes with that label saves you a return shipment later.
When does upsizing actually make sense?
Upsizing is worth considering only if your pool genuinely needs more flow, like after adding a water feature or a larger filter. In that case it's not just a motor swap. You'd need the matching higher-HP impeller, and you should confirm your wiring, breaker, and plumbing can handle the change. For most backyard pools, that's a bigger project than it sounds, and a variable speed pump is usually the smarter upgrade path anyway.
One more note: replacing a motor also means replacing the shaft seal and usually the gaskets. Never reuse an old seal on a new motor. It's a cheap part, and skipping it is the most common reason a fresh motor swap starts leaking within weeks.
The bottom line on the SPX1605Z1M and SPX1607Z1M
Match your original motor. The 3/4 HP SPX1605Z1M and the 1 HP SPX1607Z1M both fit the same frame, but going bigger without changing the impeller buys you nothing except higher running costs, and it can create electrical headaches. Replace like with like and your pump will run the way it did when it was new.
Not sure this is the right part for your problem? Reach out and we will help you figure out exactly what you need before you spend money on the wrong thing.
