C-Flange vs. Threaded Shaft Pool Pump Motors: What's the Difference?
We get this call at the shop all the time. Someone's pump motor died, they found a motor online with the right horsepower, and they want to know if it'll bolt up to their pump. Half the time the answer is no, because they picked the wrong mounting style. The two you'll run into are C-flange and threaded shaft, and mixing them up is the most common mistake people make when ordering a replacement motor.
Let's break down what each one is, how to tell which one your pump takes, and where a motor like the Hayward SPX2610Z1MTG fits into the picture.
What does C-flange actually mean?
A C-flange motor has a flat machined face on the shaft end with threaded bolt holes, and the pump bolts directly to that face. The motor shaft itself is smooth with an internal thread at the tip, and the impeller screws onto a threaded stub or directly onto the shaft depending on the pump design.
The "C" comes from the NEMA C-face standard. On a 56J frame motor like the SPX2610Z1MTG, the flange and shaft dimensions follow that standard, which is why one 56J C-flange motor can fit many different pumps. If your old motor bolted to the pump housing with four bolts through a round flat face, you've got a C-flange.
What about a threaded shaft motor?
A threaded shaft motor has threads cut right on the end of the motor shaft, and the impeller spins directly onto those threads. There's no bolt-up face doing the work in the same way. These show up on older pumps and on certain square flange designs.
The practical difference is simple. On a threaded shaft motor, the impeller and shaft connect by the shaft's own threads. On a C-flange motor, the shaft has an internal thread and the impeller connection works differently. That's why the two styles are not compatible with each other, even at the same horsepower.
How do I tell which motor my pump uses?
The fastest way is to read the model number off the label on your old motor and search for that exact number. If the label is gone or unreadable, look at the shaft end.
- Threads cut directly on the outside of the shaft tip: threaded shaft motor.
- A smooth shaft with a threaded hole in the center of the tip: C-flange motor.
- A round machined face with bolt holes around the shaft: also points to C-flange.
You should also note the frame size, which is stamped on the motor label. A 56J frame is the common one for inground pool pumps. Frame size, mounting style, and horsepower all have to match for a replacement motor to work.
Can I swap a threaded shaft motor for a C-flange motor?
Not directly. The impeller from a threaded shaft pump won't attach to a C-flange shaft, and the mounting doesn't line up the same way. If you're switching styles, you'd need a different impeller and often a different seal plate, and at that point you're better off just buying the correct motor style in the first place.
This is why we always tell customers to match the old motor's part number, or at least its frame and flange type, before spending money. A motor that won't bolt up is a return shipment nobody enjoys.
Where does the Hayward SPX2610Z1MTG fit in?

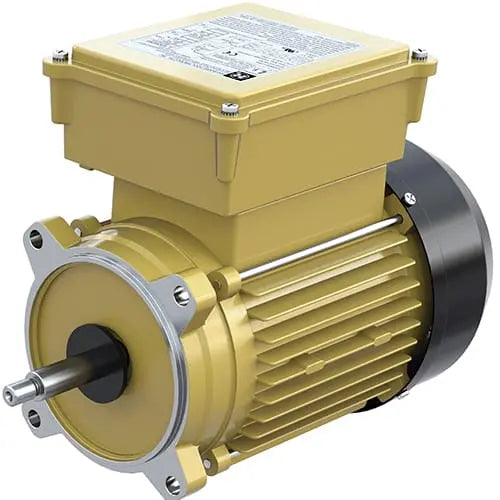

The SPX2610Z1MTG is a genuine Hayward 1.5 HP C-flange replacement motor on a 56J frame. It's the motor you want when your Hayward pump calls for a 1.5 HP C-flange unit and the old one won't turn on, hums without starting, or keeps tripping the breaker.
It's also a TEFC motor, which stands for totally enclosed fan cooled. The windings are sealed off from the outside air, so rain, splash-out, and debris have a harder time getting in. Open drip-proof motors breathe outside air through vents. TEFC motors tend to hold up better in wet equipment pads for that reason.
Before ordering, check your pump's manual or your old motor label to confirm your model takes a 56J C-flange motor at 1.5 HP. If it does, the SPX2610Z1MTG is a straight swap.
One more thing: always replace the shaft seal
Any time a motor comes off a pool pump, put a new shaft seal on before it goes back together. The old seal almost never survives removal, and a leaking seal will send pool water straight into your brand new motor. A few dollars in seal parts protects a few hundred dollars in motor.
Still not sure whether your pump takes a C-flange or threaded shaft motor? Snap a photo of your old motor label and the shaft end, and compare it against the SPX2610Z1MTG specs on our product page. When the frame, flange, and horsepower match, you're good to go.
