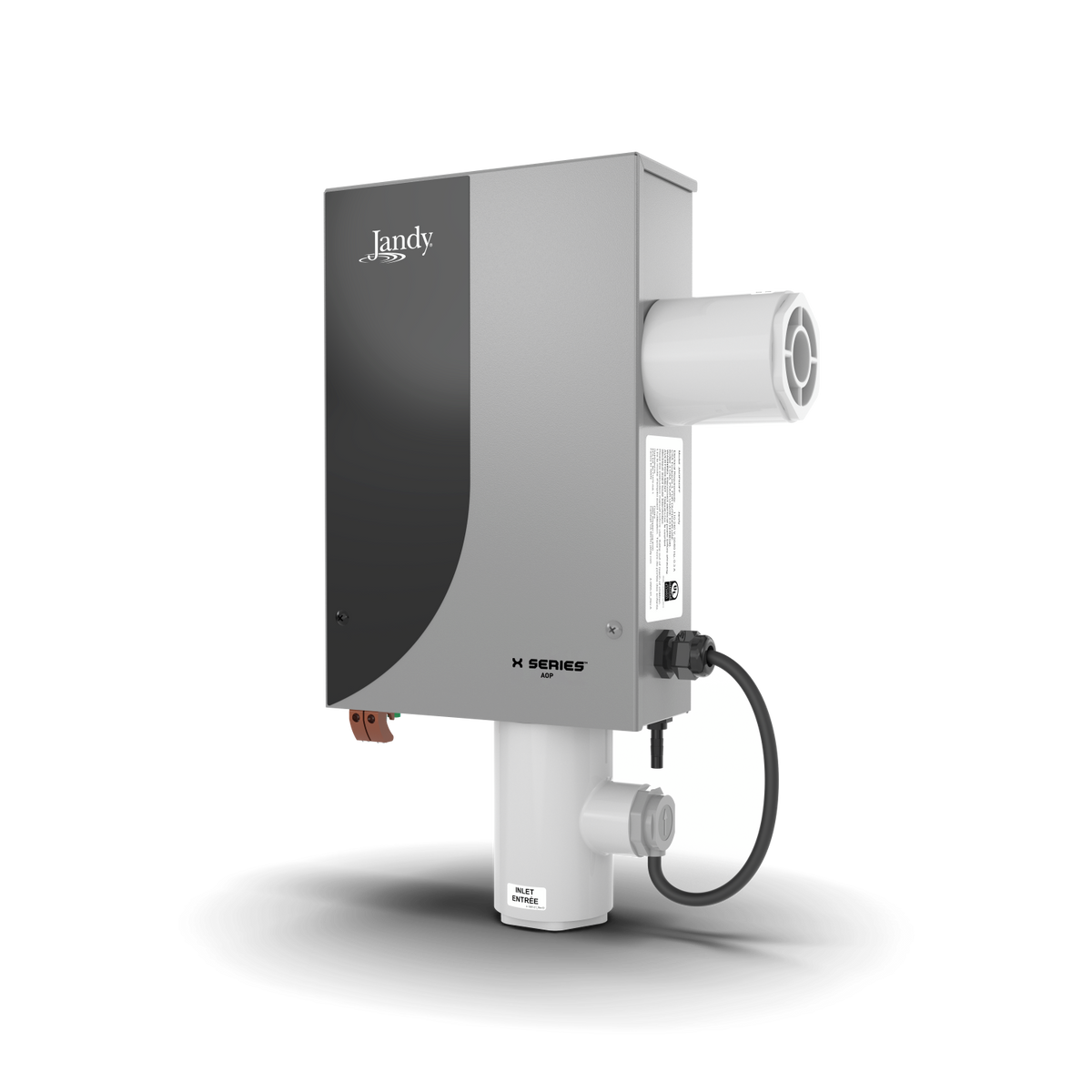

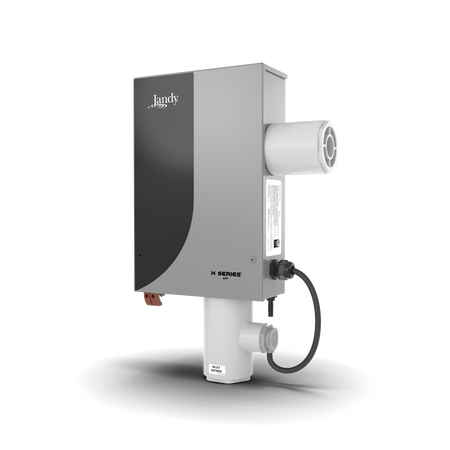

Jandy | JAOPXOFF | X-Series Offline AOP Ozone and UV-C Pool Sanitizer, Up to 15,000 Gallons, Bypass Install

ԱՊՐԱՆՔԻ ՈՒՂԵՑՈՒՅՑ

The Jandy X-Series Offline AOP System brings UV-C and ozone advanced oxidation to pools where cutting a full flow unit into the main line is not practical. It mounts on a side loop off the return line, so it fits tight pads, older plumbing and retrofits without major rework. Rated for pools up to 15,000 gallons. Powered by DEL technology.

Key Features

• UV-C plus ozone: corona discharge ozone and a UV-C lamp combine to make hydroxyl radicals that destroy oils, sweat, chloramines and organics chlorine leaves behind.
• Off-line design: runs on a bypass loop instead of the main return, so it installs on pads with no room for an in-line unit and on existing plumbing without re-piping.
• Cuts chlorine demand: contaminants are destroyed on contact, so more free chlorine stays available and chloramine odor, eye sting and dry skin drop.
• Helps filtration: breaks down organics so the filter captures them, and helps prevent algae blooms.
• UL listed.
• Works with any primary sanitizer: Jandy TruClear, TruClear XL, TruChlor or a standard chlorine feeder.
• Plug and play: ozone and UV come in one pre-wired cabinet. Floor or wall mount, indoor or outdoor.

Specifications

• Part Number: JAOPXOFF
• Max Pool Volume: 15,000 gal
• Installation: Off-line bypass loop
• Technology: UV-C lamp plus corona discharge ozone, DEL
• Listing: UL
• Accessory: JMDVOFF off-line mixing degas vessel
• Related: JAOPX200, JAOPX350, JAOPX500 in-line systems
• Brand: Jandy

Frequently Asked Questions

Does this replace chlorine?

No. AOP is a supplemental sanitizer. You still need a primary residual sanitizer such as a salt chlorine generator or a chlorine feeder, but you will use much less of it.

When do I pick the off-line model over the X200?

When the pad has no straight run to cut in a full flow unit, when you are retrofitting an older pad without re-plumbing, or when the pool is under 15,000 gallons and you want the lower cost option. For pools over 15,000 gallons use the X200, X350 or X500.

How does the off-line loop work?

A small portion of return flow is diverted through the AOP unit on a bypass and rejoins the main return. The unit treats that stream continuously while the pump runs.

Do I need the mixing degas vessel?

The JMDVOFF is required on indoor and covered pools to strip residual ozone before water returns to the pool. On outdoor pools it is optional.

How often do I replace the lamp?

UV-C lamps and ozone modules need periodic replacement based on hours run. Plan on a lamp every 3 to 4 seasons at typical run times.

Who should install it?

A licensed electrician or qualified pool professional. It is a line voltage appliance and must be bonded and wired to code.

What is the warranty?

Jandy manufacturer warranty. Register the system with Fluidra after installation and keep your receipt.
